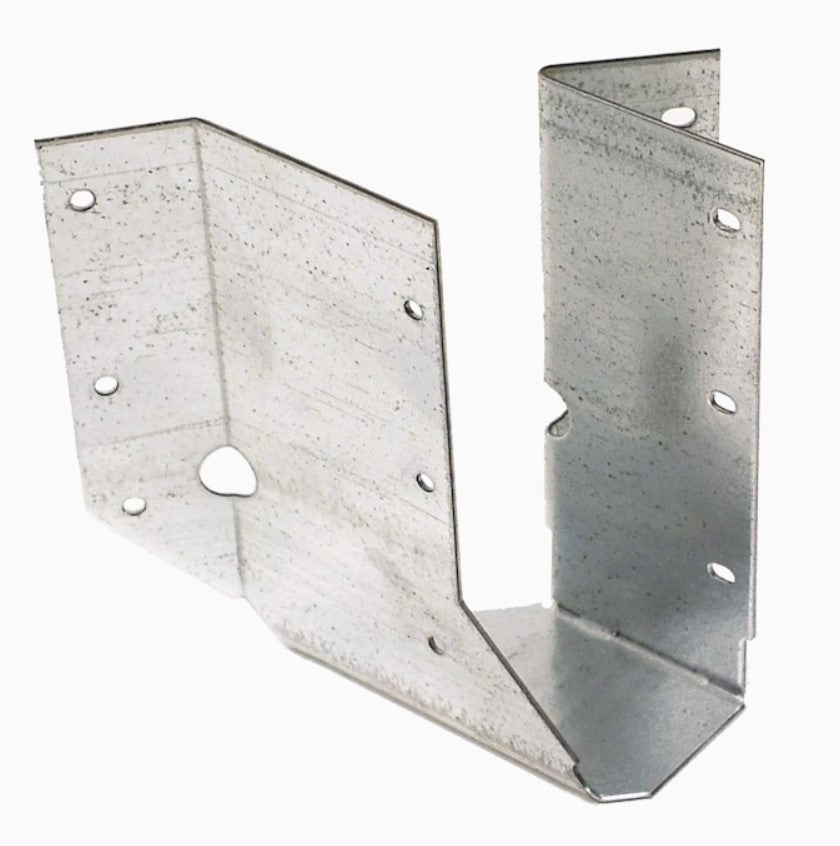

The Simpson SUR26SS SUR Stainless-Steel Joist Hanger for 2x6, Skewed Right is a 45 deg.-skewed structural connector engineered by Simpson to support solid sawn and engineered wood products in wood-framed construction. This U-shaped hanger encapsulates the top flange of the joist, eliminating the need for web stiffeners during standard installation and delivering a strong, reliable connection wherever framing angles away from a header or beam at 45 deg. to the right. Built from 16-gauge stainless steel, it is well suited for exterior decks, treated-wood framing, and other environments where corrosion resistance is a priority.

Key Features

• SUR = skewed right at 45 deg. - matches right-side skewed framing layouts straight out of the box, so no field modifications are needed to achieve proper joist alignment.
• Obround nail holes on the acute side - allow nails to be driven parallel to the joist in tight spaces, making installation faster and reducing the risk of splitting the member.
• Accommodates a 40 deg. to 50 deg. skew range - provides a small degree of real-world flexibility for joists that are not perfectly set at exactly 45 deg., reducing the chance of a mismatch on the job site.
• Top-flange encapsulation design - wraps around the top of the joist so no web stiffeners are required for standard installation, simplifying the connection and saving labor time.
• 16-gauge stainless-steel construction - combines structural rigidity with superior corrosion resistance, making this hanger a durable choice for exterior and treated-wood applications where standard steel connectors may degrade prematurely.
• Compatible with solid sawn and engineered wood products - works across a wide range of common framing materials, giving builders flexibility without needing multiple hanger styles for one project.
• Companion SURC/SULC variant available for end-of-wall installation - if the acute flange needs to be turned in to fit a wall-end condition, the SURC configuration addresses that specific layout for solid sawn sizes.

Why This Product

• Purpose-built for skewed framing - rather than a field-skewable hanger that requires bending and guesswork, this connector arrives pre-set at a fixed 45 deg. right skew, ensuring a consistent, code-ready connection every time it is installed.
• Stainless-steel finish for long-term durability in harsh environments - the stainless-steel material provides extra corrosion resistance that makes this hanger a practical choice for exterior decks, docks, and framing exposed to treated lumber chemicals that can accelerate the breakdown of standard steel hardware.
• Installer-friendly obround nail holes simplify tight-angle fastening - the obround holes on the acute side let nails run parallel to the joist, cutting down on awkward angles and reducing installation time compared to hangers without this feature.
• Flexible fastener options keep the connection method in the installer's hands - the hanger can be secured with stainless-steel nails or Strong-Drive SD Connector SS screws, allowing crews to use whichever fastener type suits their tools and project requirements.

Specifications

• MPN: SUR26SS
• Brand: Simpson Strong-Tie
• Material: Stainless Steel
• Finish: Stainless Steel
• Gauge: 16
• Skew Direction: Right (45 deg.)
• Seat Width (W): 1-9/16 in.
• Height (H): 5 in.
• Width (B): 2 in.
• Nominal Member Size: 2x6 or 2x8
• Acute Flange Length: 1-5/16 in.
• Obtuse Flange Length: 1-1/8 in.
• Country of Origin: United States
• Installation Fasteners: Install with (6) 0.162 x 3-1/2-in. stainless-steel nails in the face and (6) 0.148 x 1-1/2-in. stainless-steel nails in the joist, OR (12) #9 x 1-1/2-in. Strong-Drive SD Connector SS screws (SD9112) (sold separately)

Approved Applications

• Connecting 45 deg.-skewed joists to a header or beam in wood-framed construction
• Supporting solid sawn lumber in skewed framing configurations
• Supporting engineered wood products in skewed framing configurations
• Exterior applications requiring enhanced corrosion resistance
• Treated-wood applications where standard steel hangers may corrode prematurely
• End-of-wall installation using the companion SURC variant (acute flange turned in, solid sawn sizes only)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What is the difference between the SUR and SUL hanger?

The SUR and SUL hangers are identical in design except for their skew direction. The SUR is skewed 45 deg. to the right, while the SUL is skewed 45 deg. to the left. Choose the model that matches the direction your joist angles away from the header or beam.

Can the SUR26SS be field-modified to adjust the skew angle?

No. These hangers cannot be modified in the field. However, the SUR26SS will accommodate a joist that falls within a range of 40 deg. to 50 deg. of skew, providing a small degree of flexibility around the nominal 45 deg. skew angle.

Why is stainless steel recommended for this hanger?

Stainless steel offers extra corrosion resistance compared to standard steel or galvanized options, making it the preferred choice for exterior framing applications and installations involving treated lumber, where chemical preservatives can accelerate corrosion in standard steel connectors.

What fasteners are required to install the SUR26SS?

Install with (6) 0.162 x 3-1/2-in. stainless-steel nails in the face and (6) 0.148 x 1-1/2-in. stainless-steel nails in the joist, OR (12) #9 x 1-1/2-in. Strong-Drive SD Connector SS screws (SD9112). Using the correct stainless-steel fasteners is essential to maintain corrosion resistance throughout the connection.

Note: Product dimensions and/or screw or nail holes may differ from picture. See item description for specifications.
