Product Description

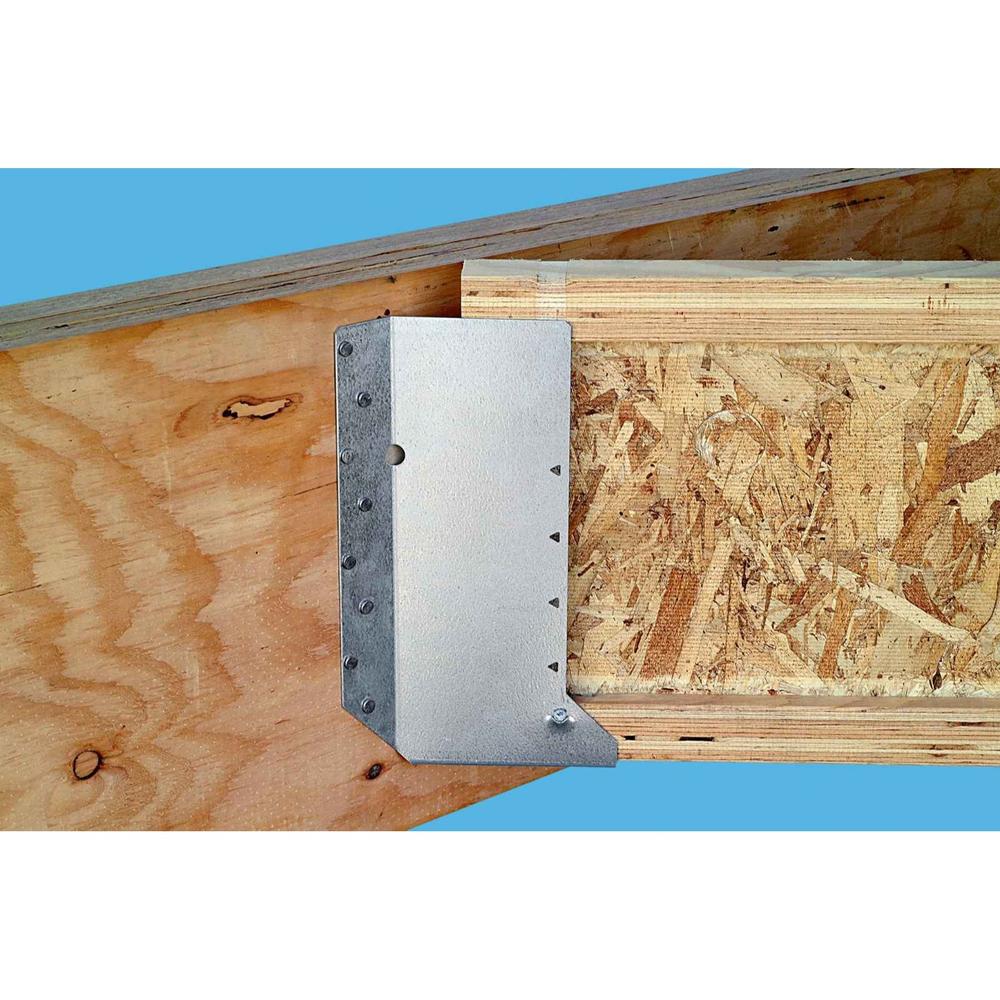

The Simpson SUR210SS Joist Hanger Skewed Right for 2x10, Stainless Steel is a purpose-built connector from Simpson designed to create secure, angled joist-to-header connections in wood frame construction. Its 45 deg. right-skewed profile accommodates framing layouts where a joist meets a header at an angle, while stainless steel construction makes it a dependable choice for installations where corrosion resistance is a priority - including coastal environments and applications involving treated lumber.
Key Features
- 45 deg. right-skewed (SUR) design - allows the hanger to accommodate angled framing conditions without field modification, keeping installations precise and code-consistent where joists meet a header at a skewed angle.
- U-shaped hanger encapsulates the top flange of the joist - eliminates the need for web stiffeners in standard installations, reducing material costs and simplifying the connection detail.
- Stainless steel construction - delivers superior corrosion resistance compared to standard galvanized options, making this hanger well suited for coastal builds and treated-lumber framing where hardware longevity is critical.
- Compatible with both solid sawn lumber and engineered wood products - gives builders flexibility across a wide range of structural framing applications without needing a different hanger for each lumber type.
- Designed to work with stainless steel fasteners - pairing the hanger with matching stainless steel nails maintains a consistent corrosion-resistant system throughout the connection, protecting long-term structural integrity.
Why This Product
- Built for skewed framing conditions - the 45 deg. right-skew geometry is engineered into the hanger itself, so contractors working with angled joist layouts get a code-ready, factory-formed solution rather than a field-bent workaround.
- Stainless steel from header to joist - when paired with the required stainless steel nails, this hanger forms a fully corrosion-resistant connection assembly - a meaningful advantage in marine, coastal, or high-moisture environments where standard hardware degrades over time.
- Broad lumber compatibility in one connector - support for both solid sawn and engineered wood products means this single hanger fits naturally into mixed framing systems, reducing the number of SKUs a builder needs to keep on hand.
- Simplified installation with no web stiffeners required - the encapsulating U-shaped design removes an extra step from the installation process, helping crews work more efficiently on projects where skewed joist connections appear repeatedly.
Specifications
- Model Number: SUR210SS
- Skew: Right (45 degrees)
- Gauge: 16
- W (Width): 1-9/16 in.
- H (Height): 8-3/16 in.
- B (Base): 2 in.
- Coating/Material: Stainless Steel
- Acute Flange Length: 1-5/16 in.
- Obtuse Flange Length: 1-1/8 in.
- Country of Origin: United States
Approved Applications
- Solid sawn lumber joist connections in wood frame construction
- Engineered wood product joist connections
- Framing assemblies requiring a 45-degree right-skewed joist-to-header connection
- Construction environments requiring corrosion-resistant hardware, such as coastal or treated-lumber applications
Options
Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What fasteners are required to install the SUR210SS?
- Installation requires 16d stainless-steel nails for the header and 10d x 1-1/2 in. stainless-steel nails for the joist.
- Are web stiffeners needed when installing this hanger?
- No. The U-shaped design of the SUR210SS encapsulates the top flange of the joist, so no web stiffeners are required for standard installation.
- What is the difference between the SUR and SUL hangers?
- The SUR and SUL hangers are identical in design except that the SUR is skewed 45 degrees to the right and the SUL is skewed 45 degrees to the left.
- What types of lumber is this hanger compatible with?
- The SUR210SS is designed to support both solid sawn and engineered wood products used in wood frame construction.
Note: Product dimensions and/or Screw or Nail holes may differ from picture. See item description for specifications.
