Product Features
Product Description

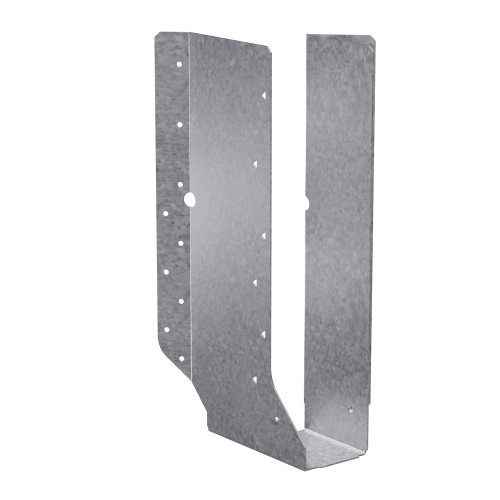

The Simpson SUR2.56/14 SUR Galvanized Joist Hanger for 2-1/2 in. x 14 in. Engineered Wood, Skewed Right by Simpson Strong-Tie is a 45 deg.-skewed hanger engineered to support solid sawn and engineered wood products in wood construction applications. This U-shaped hanger encapsulates the top flange of the joist, eliminating the need for web stiffeners during standard installation and delivering a strong, reliable connection for skewed framing layouts.
Key Features
- SUR = skewed right - designed for 45 deg. right-skewed joist connections
- Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
- These hangers cannot be modified but will accommodate a 40 deg. to 50 deg. skewed joist
- Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
- U-shaped design encapsulates the top flange of the joist - no web stiffeners required for standard installation
- Seat width: 2-9/16 in.
- Joist size: 2-1/2 in. x 14 in. (or) 2-1/2 in. x 16 in.
- Made from 16-gauge steel
- Galvanized (G90) for corrosion resistance
Specifications
- MPN: SUR2.56/14
- Brand: Simpson Strong-Tie
- Skew: Right (45 deg.)
- Gauge: 16
- Seat Width (W): 2-9/16 in.
- Height (H): 13-5/16 in.
- Base (B): 3-3/16 in.
- Member Size: 2-1/2 in. x 14 in. (or) 2-1/2 in. x 16 in.
- Acute Flange Length: 2-1/8 in.
- Obtuse Flange Length: 1-1/8 in.
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
- Install With: Install with (18) 0.162 x 3-1/2 in. nails in the face and (2) 0.148 x 1-1/2 in. nails in the joist, OR (20) #9 x 1-1/2 in. Strong-Drive SD Connector screws (SD9112)
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What is the difference between the SUR and SUL hanger?
- The SUR and SUL hangers are identical in construction except that the SUR is skewed 45 deg. to the right and the SUL is skewed 45 deg. to the left. Choose SUR when your joist angles to the right relative to the header or beam.
- Can the SUR2.56/14 be field-modified to fit different skew angles?
- No, these hangers cannot be modified. However, they are designed to accommodate a joist skewed anywhere from 40 deg. to 50 deg., providing a degree of flexibility within that range without any alteration to the hanger.
- What fasteners are required to install the SUR2.56/14?
- Install with (18) 0.162 x 3-1/2 in. nails in the face and (2) 0.148 x 1-1/2 in. nails in the joist, OR (20) #9 x 1-1/2 in. Strong-Drive SD Connector screws (SD9112).
- Why does the SUR2.56/14 feature obround nail holes on the acute side?
- The obround nail holes on the acute side are specifically designed to allow nails to be easily installed parallel to the joist, simplifying installation in tight or angled framing conditions while maintaining proper fastener alignment.
Note: Product dimensions and/or Screw or Nail holes may differ from picture. See item description for specifications.
