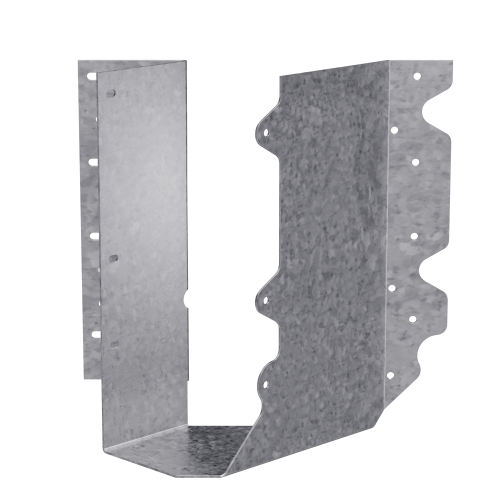

The Simpson SUL214-2 Joist Hanger Skewed Left for Double 2x14, Galvanized from Simpson is a 45 deg. skewed hanger engineered to support solid sawn and engineered wood products in wood frame construction. Its U-shaped profile encapsulates the top flange of the joist, delivering a secure and efficient angled framing connection for double 2x14 joist applications without requiring web stiffeners during standard installation.

Key Features

• 45 deg. left skew (SUL) configuration - accommodates angled framing layouts that a standard straight hanger cannot, giving framers the flexibility to handle non-perpendicular joist connections cleanly and accurately.
• U-shaped design that encapsulates the top flange of the joist - eliminates the need for web stiffeners during standard installation, reducing material costs and saving time on the job site.
• Sized for double 2x14 joist applications - matches the specific framing member size so the hanger fits correctly from the start, avoiding field modifications or guesswork.
• Compatible with both solid sawn and engineered wood products - provides versatility across a wide range of wood frame construction projects without requiring a different hanger for different lumber types.
• 16-gauge steel construction with zinc galvanized G90 coating - delivers structural strength alongside corrosion resistance, making this hanger suitable for demanding framing environments where long-term durability matters.

Why This Product

• Purpose-built for angled framing challenges - the 45 deg. left skew is engineered into the hanger itself, so contractors working with angled roof or floor framing get a code-compatible connection without custom fabrication.
• Simplified installation with no web stiffeners required - the U-shaped profile does the work that would otherwise require additional hardware, keeping the fastener schedule straightforward and the overall process efficient.
• Domestic manufacturing by a trusted structural connector brand - Simpson products are made in the United States, giving buyers confidence in consistent quality and material traceability for their projects.
• Broad compatibility across lumber types - support for both solid sawn and engineered wood products means this hanger works across a variety of wood frame construction scenarios without requiring substitutions mid-project.

Specifications

• Model Number: SUL214-2
• Skew: Left (45 degrees)
• Gauge: 16
• W (in.): 3-1/8
• H (in.): 12-11/16
• B (in.): 2-7/16
• Coating/Material: Zinc Galvanized, G90
• Fasteners Required: (18) 0.162 x 3-1/2 for the face and (8) 0.162 x 2-1/2 for the joist
• Acute Flange Length: 2-3/8 in.
• Obtuse Flange Length: 1-7/16 in.
• Country of Origin: United States

Options

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What direction does the SUL214-2 skew?

The SUL214-2 is skewed 45 degrees to the left. The SUR and SUL hangers are identical in design except that SUR models skew to the right and SUL models skew to the left.

Are web stiffeners required when installing this hanger?

No. Because the U-shaped design encapsulates the top flange of the joist, web stiffeners are not required for standard installation.

What types of fasteners are needed to install the SUL214-2?

Installation requires (18) 0.162 x 3-1/2 fasteners for the face and (8) 0.162 x 2-1/2 fasteners for the joist.

What wood products is this hanger designed to support?

The SUL214-2 is designed to support both solid sawn and engineered wood products used in wood frame construction.

Note: Product dimensions and/or Screw or Nail holes may differ from picture. See item description for specifications.
