Product Description

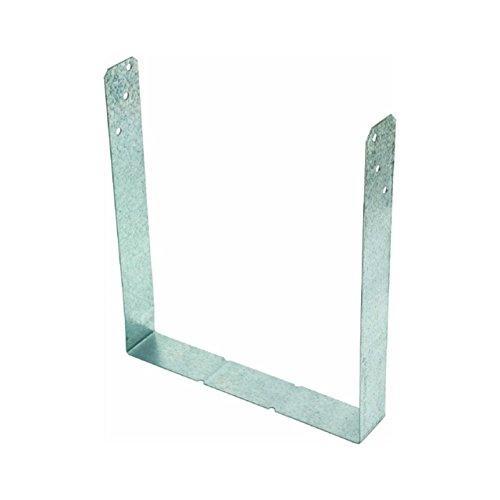

The Simpson SP8 Stud Plate Tie (Model No. SP8) is a U-shaped structural connector from Simpson Strong-Tie engineered to create a reliable stud-to-plate connection that resists uplift forces in wood-framed walls. Measuring 7-5/16 in. wide by 8-5/16 in. long, this 20-gauge galvanized steel tie features a horizontal bearing portion that seats firmly against wood-wall top plates or sill plates, while two vertical legs nail securely to the edges of a wood stud. Load rated to resist wind and seismic forces, the SP8 is a cost-effective solution when properly installed before the placement of the wall.
Key Features
- Load rated
- Designed to resist wind and seismic forces
- Does not require top or bottom track attachment
- Nominal stud size: 2x
- Nominal plate width: 8x
- Made from 20-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- Model No.: SP8
- Width: 7-5/16 in.
- Length: 8-5/16 in.
- Gauge: 20
- Coating/Finish: Zinc Galvanized, G90
- Member Size: 2x stud; 8x plate
- Install With: (6) 0.148 in. x 1-1/2 in. nails
- Country of Origin: United States
Frequently Asked Questions
- What is the primary purpose of the Simpson SP8 Stud Plate Tie?
- The SP8 is designed as a stud-to-plate connection to resist uplift. Its U-shaped form allows a horizontal portion to bear against wood-wall top plates or sill plates while two vertical legs are nailed to the edges of a wood stud, helping the assembly resist wind and seismic forces.
- What size stud and plate is the SP8 compatible with?
- The SP8 is designed for use with a nominal 2x stud and a nominal 8x plate, making it suitable for standard wood-framed wall assemblies using those member sizes.
- What fasteners are required to install the SP8?
- Installation requires (6) 0.148 in. x 1-1/2 in. nails. For best results, the tie should be properly installed before the placement of the wall.
- Does the SP8 require attachment to a top or bottom track?
- No. The SP8 does not require top or bottom track attachment, which simplifies installation and makes it a cost-effective option for stud-to-plate connections in wood-framed walls.
