Product Description

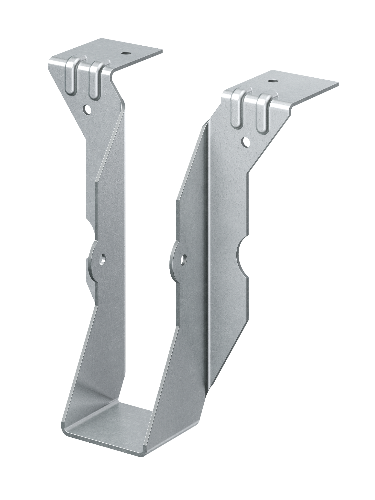

The Simpson LB26 LB Galvanized Top-Flange Joist Hanger for 2x6 by Simpson Strong-Tie is a top-flange hanger engineered for solid sawn lumber applications, designed to provide dependable support underneath the joist, rafter, or beam for a strong, reliable connection. Suitable for joist, beam, or purlin use, the LB26 delivers cost-effective performance while helping resist download forces and providing uplift capacity for earthquake or high-wind loading conditions.
Key Features
- Designed to help resist download forces
- The unique two-level embossment provides added stiffness to the top flange
- Quick installation
- Nominal joist size: 2x6
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Load rated for use with a 2x nailer if required
- Engineered with increased uplift loads for earthquake or high-wind loading
Specifications
- Model Number: LB26
- Member Size: 2x6
- Gauge: 14
- Width: 1 9/16 in.
- Height: 5 3/8 in.
- B: 1 1/2 in.
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: 10d x 1-1/2 in. nails
- Country of Origin: United States
Approved Applications
- Joist support and connection
- Beam support and connection
- Purlin support and connection
- Solid sawn lumber applications
- Light-to-medium load applications requiring uplift resistance
- Applications requiring earthquake or high-wind loading uplift performance
Frequently Asked Questions
- What size joist is the LB26 designed to fit?
- The LB26 is designed for a nominal 2x6 joist size, making it suitable for solid sawn lumber framing applications where a 2x6 member is used.
- What fasteners should be used to install the LB26?
- The LB26 should be installed with 10d x 1-1/2 in. nails. Always use the specified fasteners to ensure proper performance and load capacity.
- What gauge steel is the LB26 made from, and what corrosion protection does it offer?
- The LB26 is made from 14-gauge steel and features a G90 zinc galvanized coating, which provides extra corrosion resistance for long-lasting performance in demanding environments.
- Can the LB26 be used with a nailer?
- Yes. The LB26 has been load rated for use with a 2x nailer if required, offering added flexibility for various framing configurations.
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
Note: Product dimensions and/or screw or bolt holes may differ from picture.
