Product Features
Product Description

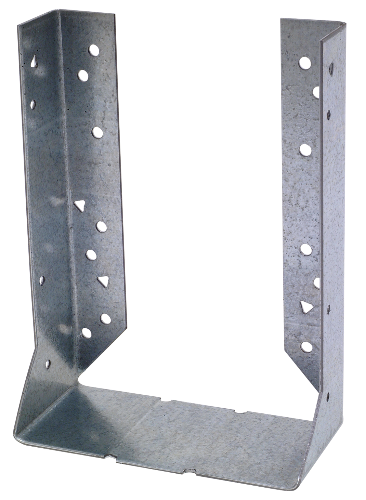

The Simpson HUC610 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for 6x10 by Simpson is a heavy-duty structural connector engineered for projects that demand additional strength and elevated safety factors. This face-mount hanger features concealed header flanges that deliver cleaner, more refined visible lines in exposed conditions, making it an ideal choice wherever aesthetics matter as much as performance. Built from 14-gauge steel with a G90 zinc galvanized finish, the HUC610 provides reliable corrosion resistance and long-lasting structural integrity for wood-to-wood, wood-to-masonry, and wood-to-concrete joist installations.
Key Features
- Extra optional triangle holes for additional load
- HUC-series hangers are tested, load rated and code compliant
- Install wood joists to wood, masonry and concrete
- Seat width: 5-1/2 in.
- Nominal joist size: 6x10
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Concealed header flanges provide cleaner visible lines in exposed conditions
- Designed for structures requiring additional strength and safety factors
Specifications
- MPN: HUC610
- Nominal Member Size: 6x10
- Seat Width: 5-1/2 in.
- Material Gauge: 14-gauge steel
- Finish: Zinc Galvanized, G90
- Coating: Zinc Galvanized, G90
- Installation Fasteners (sold separately): Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist
- Country of Origin: United States
Approved Applications
- Connecting wood joists to wood headers and beams
- Connecting wood joists to masonry surfaces
- Connecting wood joists to concrete structures
- Exposed framing conditions where concealed flanges provide cleaner aesthetics
- Structures requiring additional strength and elevated safety factors
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What size joist is the HUC610 designed to support?
- The HUC610 is designed for a nominal joist size of 6x10, with a seat width of 5-1/2 in. to properly accommodate and support the member.
- What fasteners should be used to install the HUC610?
- Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist for a code-compliant installation.
- Why does the HUC610 feature concealed header flanges?
- The concealed header flanges are designed to provide cleaner visible lines in exposed conditions, making the HUC610 a preferred choice for applications where the framing will remain visible and aesthetics are important.
- Is the HUC610 suitable for outdoor or moisture-exposed environments?
- Yes. The HUC610 is coated with a Zinc Galvanized G90 finish, which provides extra corrosion resistance, making it well-suited for environments where moisture exposure is a concern.
Note: Product dimensions and/or nail holes may differ from picture. Please see the item description and Spec Sheet for specifications.
