Product Description

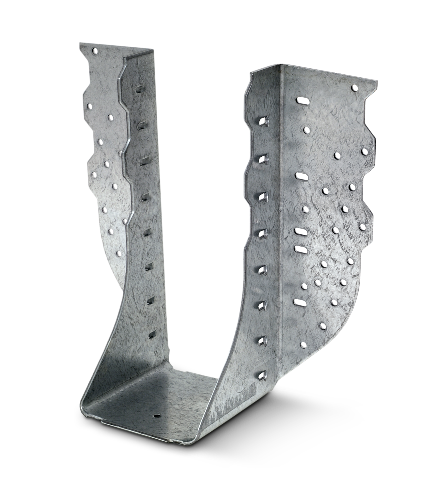

The Simpson HGUS410 Face-Mount Beam Hanger is an extra-heavy-capacity girder hanger engineered for structural connections that demand reliable, high-load performance. Built by Simpson from 12-gauge steel with a G90 zinc galvanized finish, this face-mount hanger uses double-shear nailing to distribute the load through two points on each joist nail for greater strength - delivering a value-engineered solution that handles demanding girder support applications without overextending your budget.
Key Features
- Post-installation capability - can be installed after the beam is secured in place, giving builders greater flexibility and reducing the need to sequence work around hanger placement
- Double-shear nailing design - distributes the load through two points on each joist nail for greater strength, making this hanger capable of handling heavy structural loads with confidence
- Tested, load rated, and code compliant - HGUS-series hangers meet recognized standards, so contractors and inspectors can trust the connection is backed by verified performance data
- 12-gauge steel construction - heavy-gauge material provides the rigidity and durability required for extra-heavy-capacity girder and beam support applications
- G90 zinc galvanized coating - provides extra corrosion resistance, making this hanger a dependable choice for projects where moisture exposure is a concern
- Sized for nominal 4x10 joists and 3-1/2 in. glulam beams - precise fit ensures proper load transfer and eliminates guesswork when selecting the right hanger for engineered lumber or dimensional lumber framing
- Tabs must not be bent or removed - maintaining the hanger's factory geometry preserves its rated load capacity and keeps the installation code compliant
Why This Product
- Extra-heavy-capacity strength at an economical price - the HGUS410 is value-engineered to carry high girder loads without the premium cost often associated with heavy-duty structural connectors, making it a practical choice for both residential and commercial framing projects
- Double-shear nailing sets it apart from standard hangers - by engaging two shear planes per joist nail rather than one, this design delivers a stronger, more efficient connection that is especially valuable in high-load or long-span beam applications
- Flexible installation saves time on the job site - because the HGUS410 can be attached after the beam is already in position, crews are not locked into a specific installation sequence, reducing coordination delays during framing
- Built-in corrosion protection for long-term reliability - the G90 zinc galvanized finish adds a durable layer of protection, making this face-mount hanger a solid option for decks, covered structures, and other applications where exposure to moisture is a factor
Specifications
- MPN: HGUS410
- Member Size: 4x10, 3-1/2 in. glulam

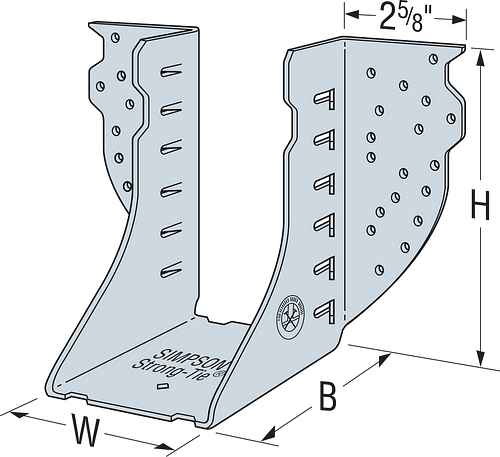

- Seat Width: 3-5/8 in.
- Hanger Height: 9-1/16 in.
- Gauge: 12
- Coating/Finish: Zinc Galvanized, G90
- Install With: 0.162 in. x 3-1/2 in. common nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
Can the HGUS410 be installed after the beam is already in place?
Yes. The HGUS410 is specifically designed so that it can be installed after the beam is secured in place, providing greater flexibility during the construction process.
What size beam or joist is the HGUS410 compatible with?
The HGUS410 is sized for a nominal 4x10 joist or a 3-1/2 in. glulam beam, with a seat width of 3-5/8 in. and a hanger height of 9-1/16 in.
What type of nails should be used to install the HGUS410?
The HGUS410 should be installed with 0.162 in. x 3-1/2 in. common nails as specified for this hanger.
Is the HGUS410 suitable for outdoor or corrosion-prone environments?
The HGUS410 features a G90 zinc galvanized coating that provides extra corrosion resistance, making it well suited for environments where moisture exposure is a concern. The HGUS-series hangers are also tested, load rated, and code compliant.
