Product Description

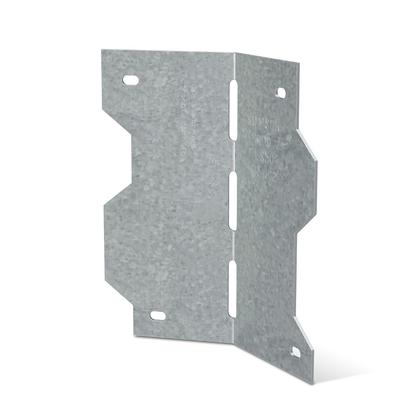

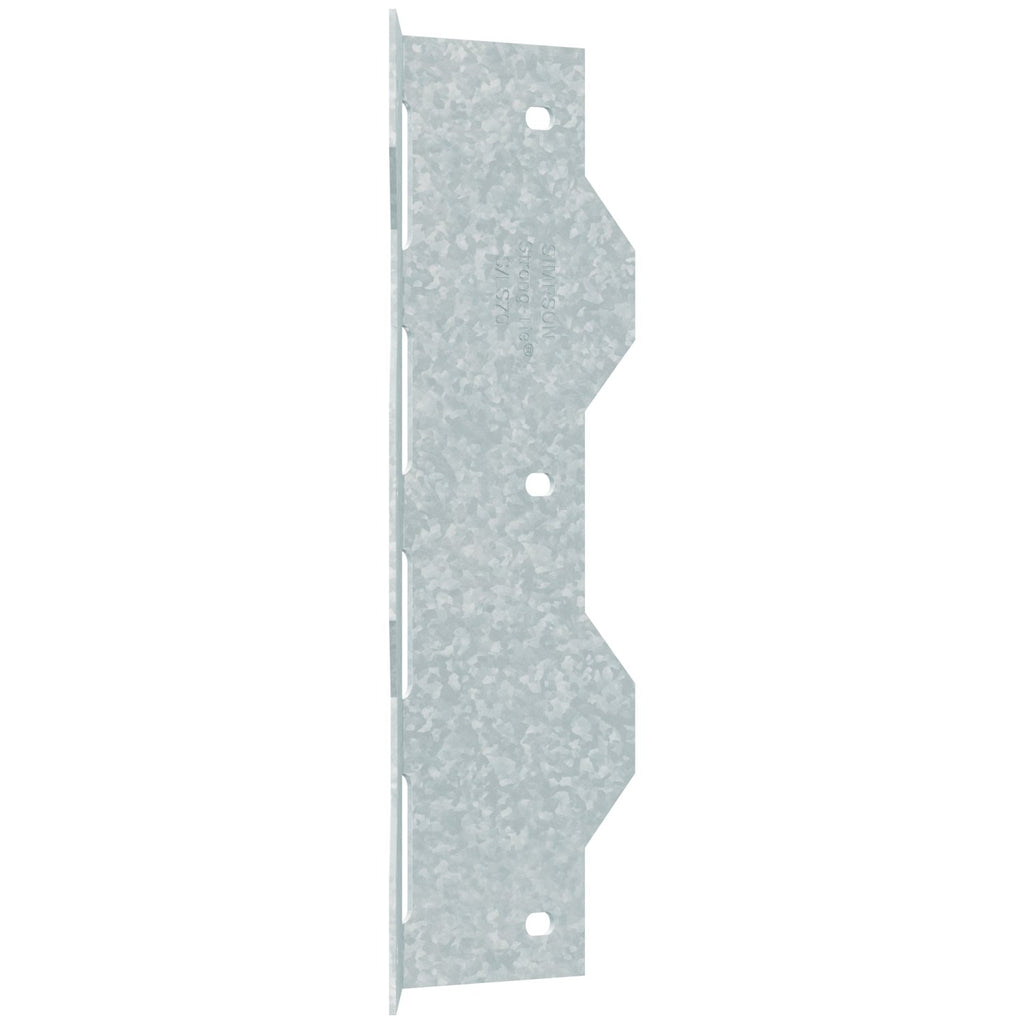

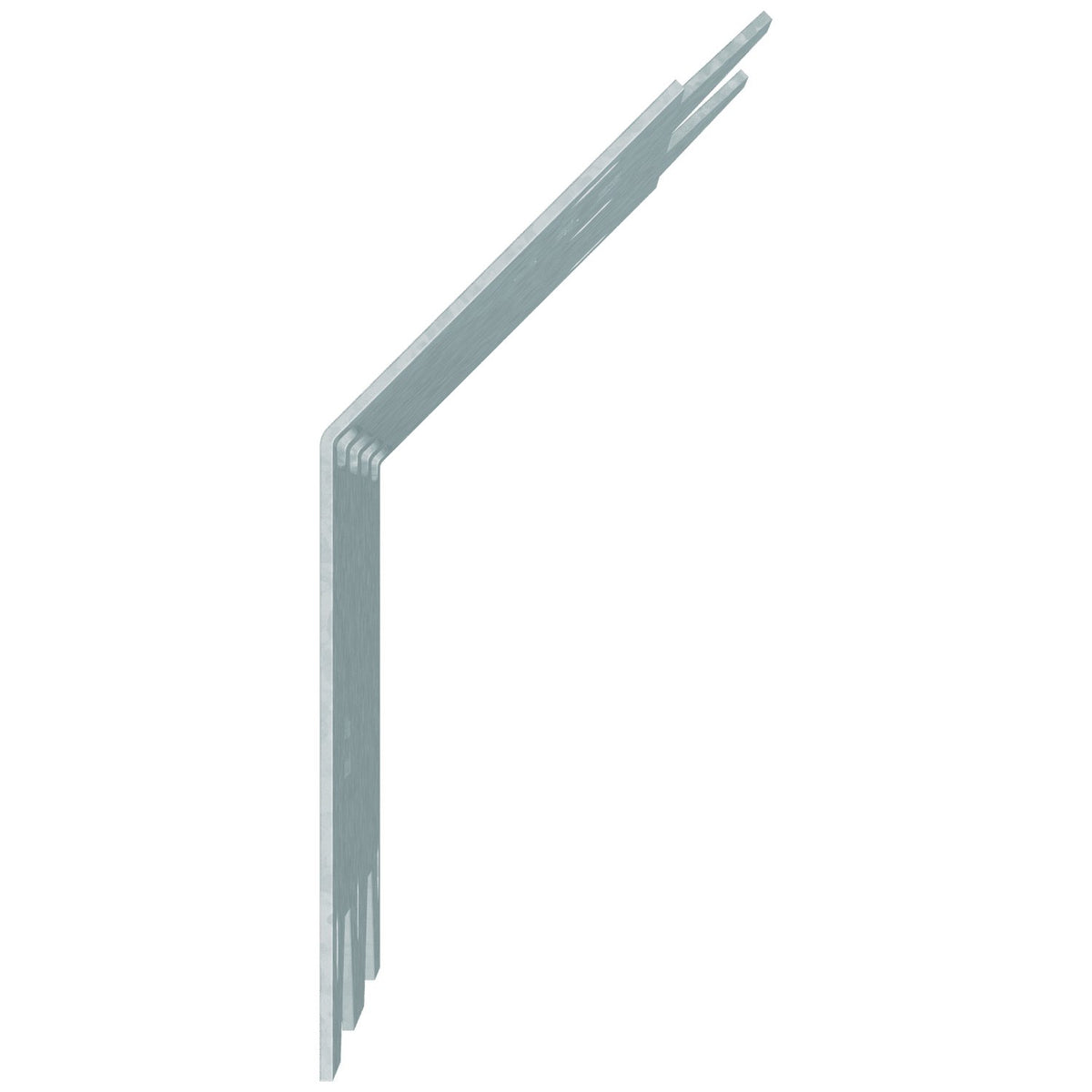

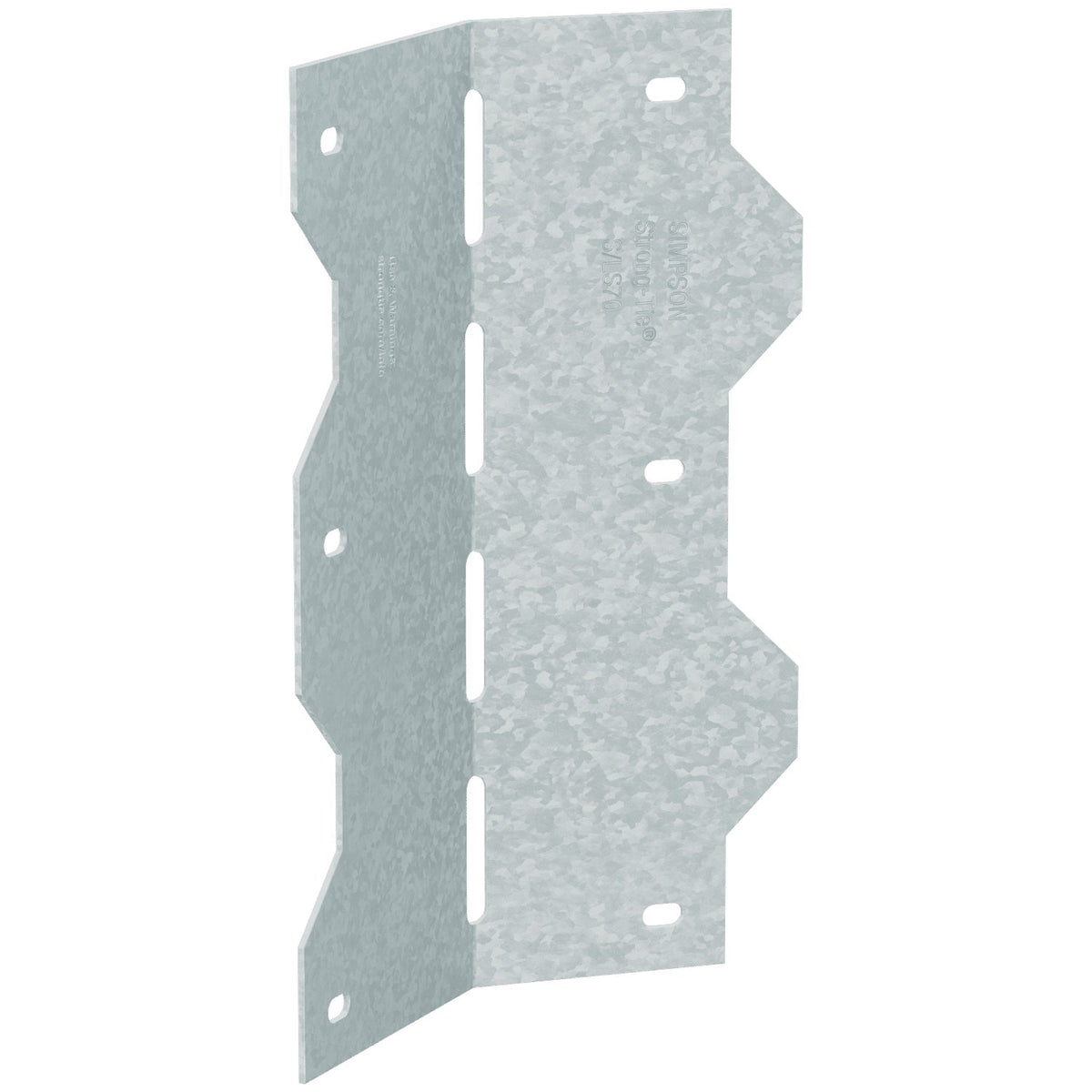

The Simpson S/LS70 S/LS 6-3/8 in. Light-Duty Skewable Angle by Simpson Strong-Tie is a cold-formed steel, general-utility reinforcing angle engineered for demanding cold-formed steel (CFS) framing applications. Designed to connect roof rafters to hip rafters and other members intersecting at varying angles, this load-rated connector delivers the correct thickness and fastener count for the specifier - eliminating the guesswork of field-fabricated clip angles. Well-defined fastener hole locations and rigorous testing ensure that tabulated load values account for connection eccentricities, giving builders and engineers confidence in every installation.
Key Features
- Field skewable from 0 deg. to 135 deg.
- Bend one time only
- Perfect for attachment of members intersecting at angles
- 6-3/8 in. length
- Made from 43 mil (18 ga.) steel
- Galvanized (G90) for corrosion resistance
Specifications
- Manufacturer: Simpson Strong-Tie
- MPN: S/LS70
- Length: 6-3/8 in.
- Gauge: 18 ga. (43 mil)
- Coating / Finish: Zinc Galvanized, G90
- Country of Origin: United States
- Installation Fasteners (sold separately): 6 #10 screws
Approved Applications
- Connecting roof rafters to hip rafters at different angles
- General-utility reinforcing in cold-formed steel (CFS) framing
- Attachment of structural members intersecting at angles ranging from 0 deg. to 135 deg.
Frequently Asked Questions
- How many degrees can the S/LS70 be skewed in the field?
- The S/LS70 is field skewable from 0 deg. to 135 deg., making it highly versatile for connecting members that intersect at a wide range of angles, including roof rafter-to-hip rafter connections.
- Can the S/LS70 be bent more than once to adjust its angle?
- No. The S/LS70 is designed to be bent one time only. Bending the angle more than once may compromise its structural integrity and load-rated performance.
- What fasteners are required to install the S/LS70?
- Installation requires 6 #10 screws. Always use all specified fasteners to achieve the tabulated load values for the connection.
- Why is the G90 galvanized coating important for this connector?
- The G90 zinc galvanized coating provides corrosion resistance, helping protect the 18-gauge cold-formed steel angle in environments where moisture exposure is a concern during and after construction.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
