Product Description

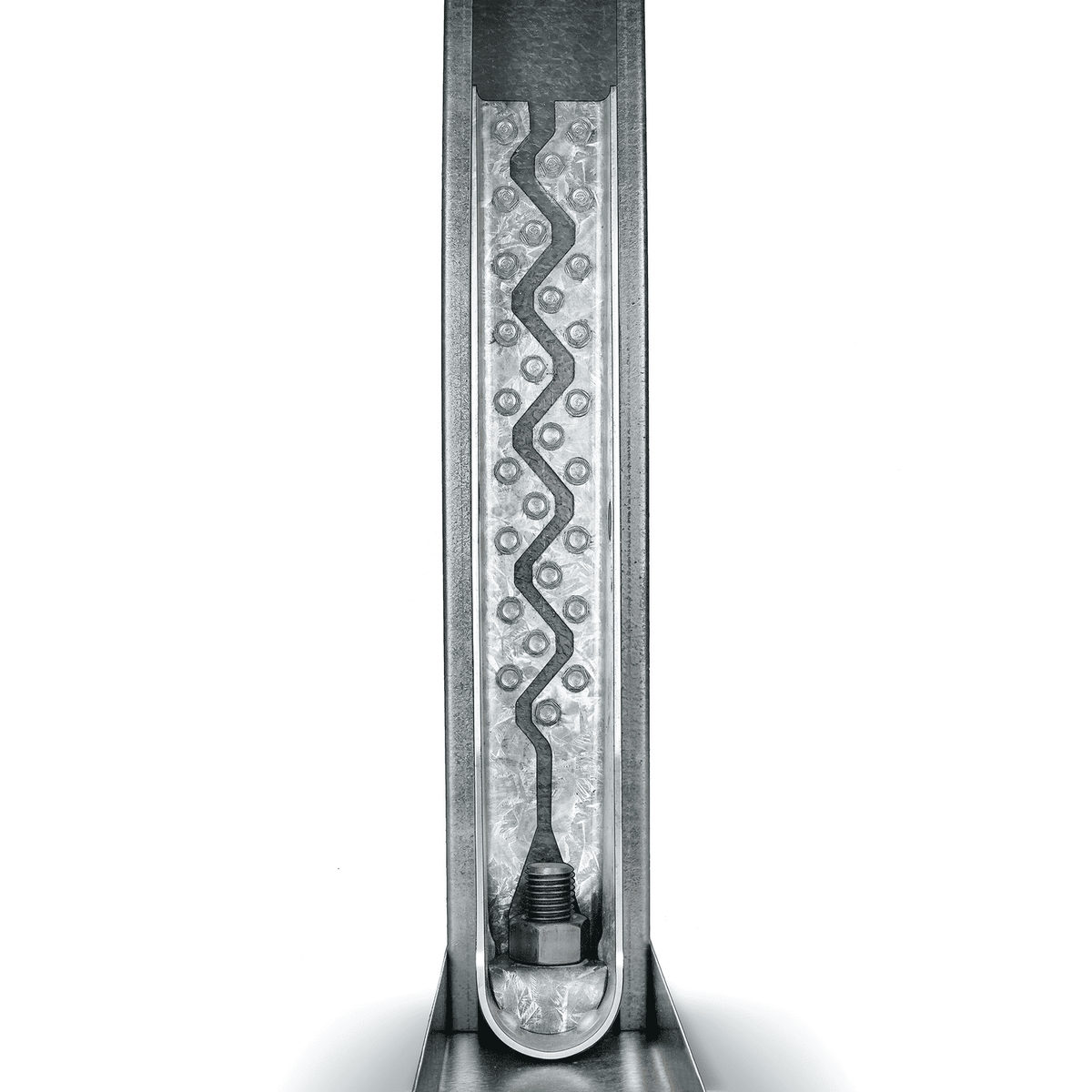

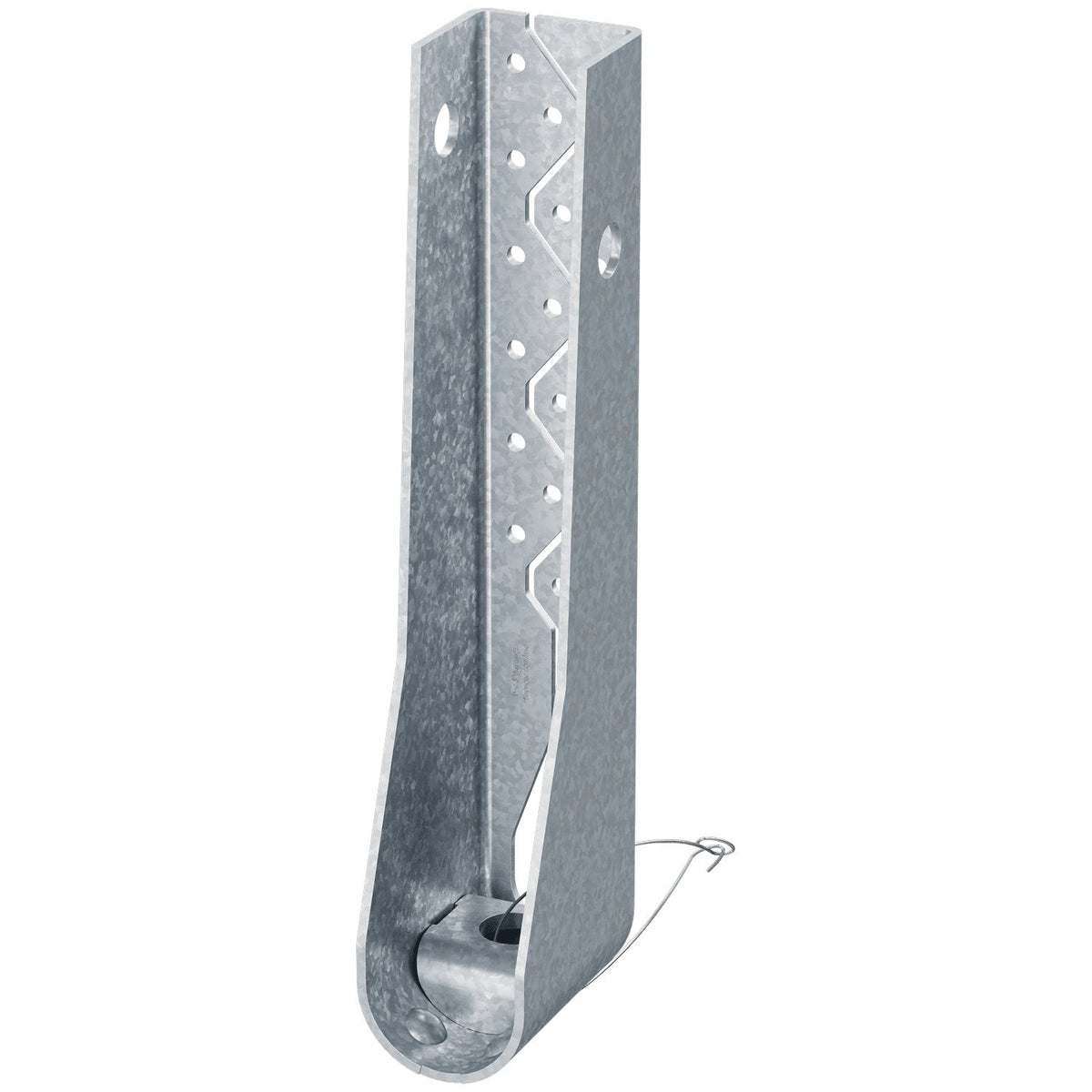

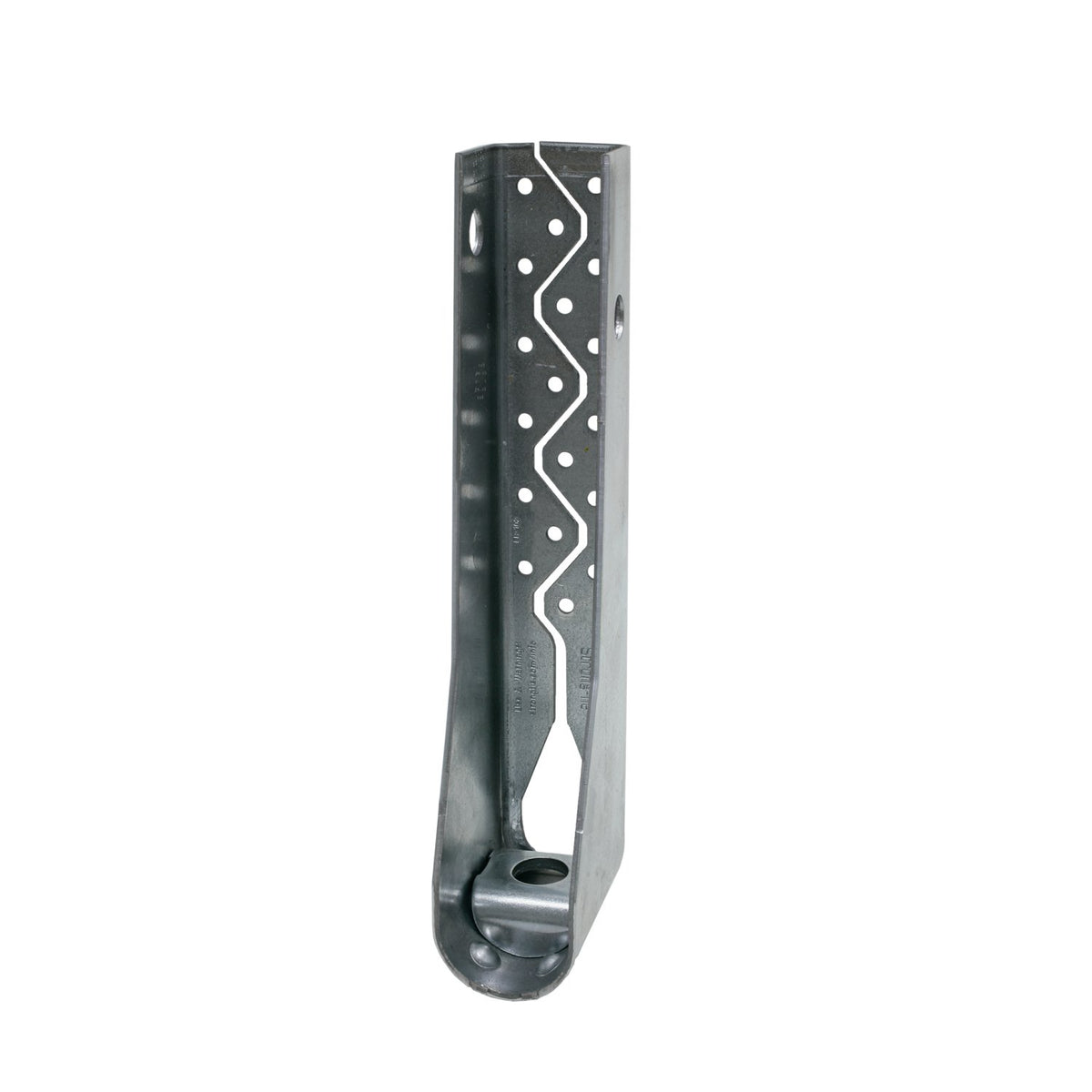

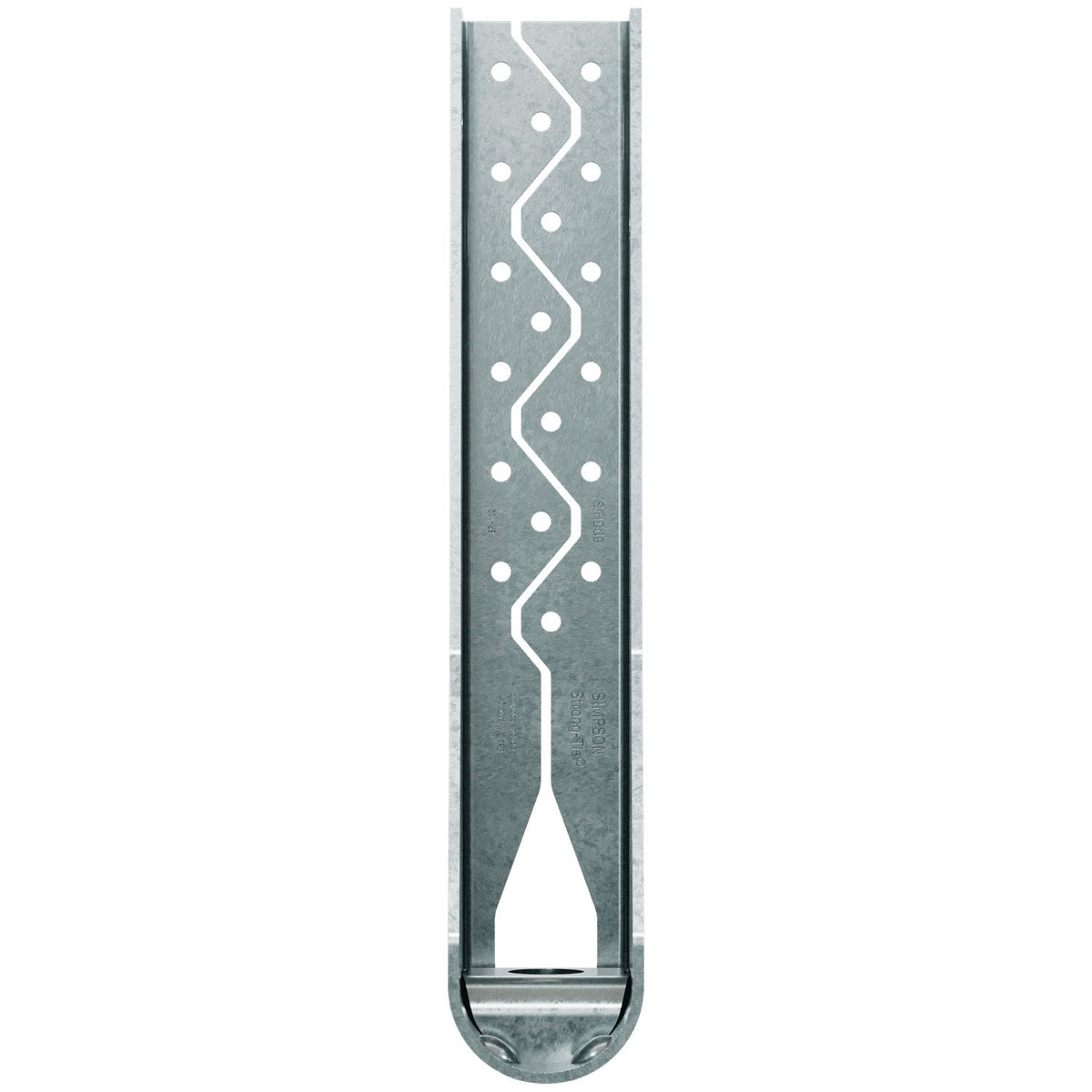

The Simpson S/HDU9 S/HDU 12-7/8 in. Holdown for Cold-Formed Steel is a Simpson Strong-Tie engineered connector designed to anchor shearwalls to the foundation, resisting overturning forces in cold-formed steel framing systems. The S/HDU series combines high structural performance with ease of installation - its pre-deflected geometry virtually eliminates material stretch, delivering low deflection under load, while self-drilling tapping screw installation directly into the studs reduces installation time and saves labor cost.
Key Features
- Designed for use with cold-formed steel framing
- Anchors the shearwall to the foundation to resist overturning
- Height: 12-7/8 in.
- Made from 118 mil (10 ga.) steel
- Galvanized (G90) for corrosion resistance
- Pre-deflected geometry virtually eliminates material stretch, resulting in low deflection under load
- Self-drilling tapping screw installation into studs reduces installation time and saves labor cost
Specifications
- Model Number: S/HDU9
- Height: 12-7/8 in.
- Gauge: 10
- Thickness: 118 mil
- Coating/Finish: Zinc Galvanized, G90
- Country of Origin: United States

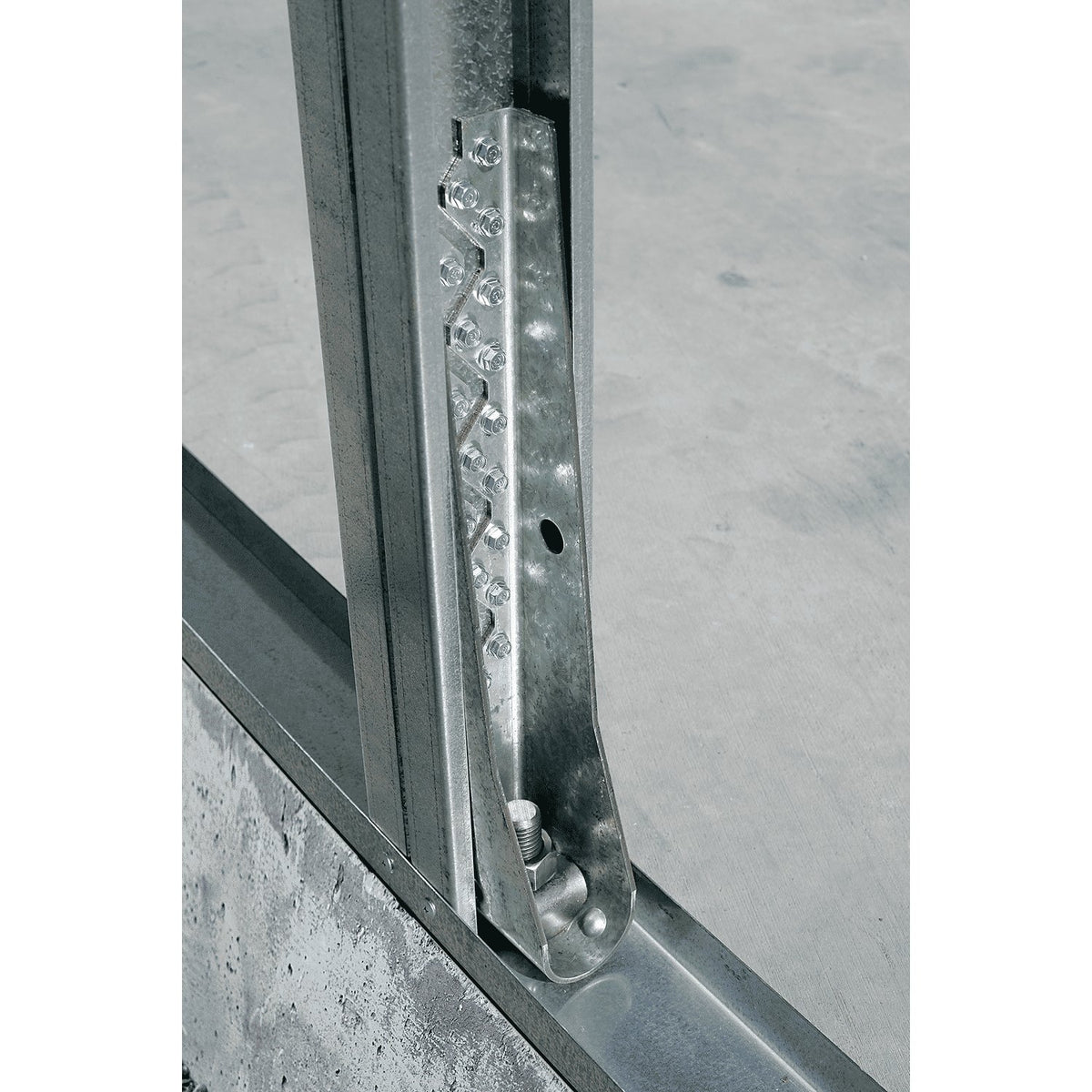

- Installation: Install with (18) #14 self-drilling screws to the stud and (1) 7/8 in. diameter anchor bolt to structure
Approved Applications
- High-Wind Construction
Frequently Asked Questions
- What type of framing is the S/HDU9 holdown designed for?
- The S/HDU9 is specifically designed for use with cold-formed steel (CFS) framing systems, making it suitable for a wide range of light-gauge steel construction projects.
- What fasteners are required to install the S/HDU9?
- Installation requires (18) #14 self-drilling screws to attach the holdown to the stud and (1) 7/8 in. diameter anchor bolt to connect it to the structure.
- What does the pre-deflected geometry of the S/HDU series do?
- The pre-deflected geometry virtually eliminates material stretch, which results in low deflection under load - an important performance characteristic for shearwall holdown applications.
- What corrosion protection does the S/HDU9 have?
- The S/HDU9 is coated with a Zinc Galvanized G90 finish, providing corrosion resistance suitable for cold-formed steel framing environments.
