Product Description

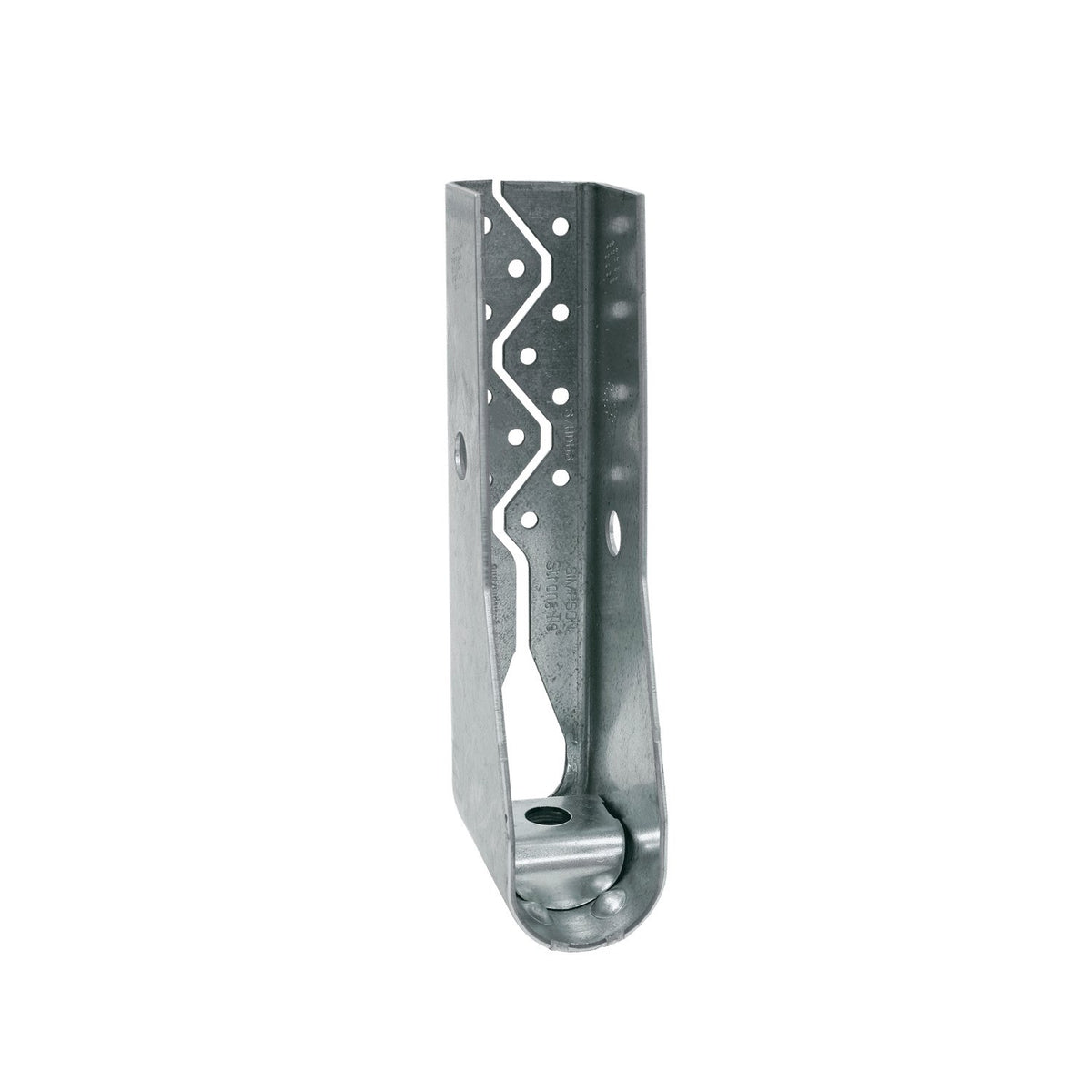

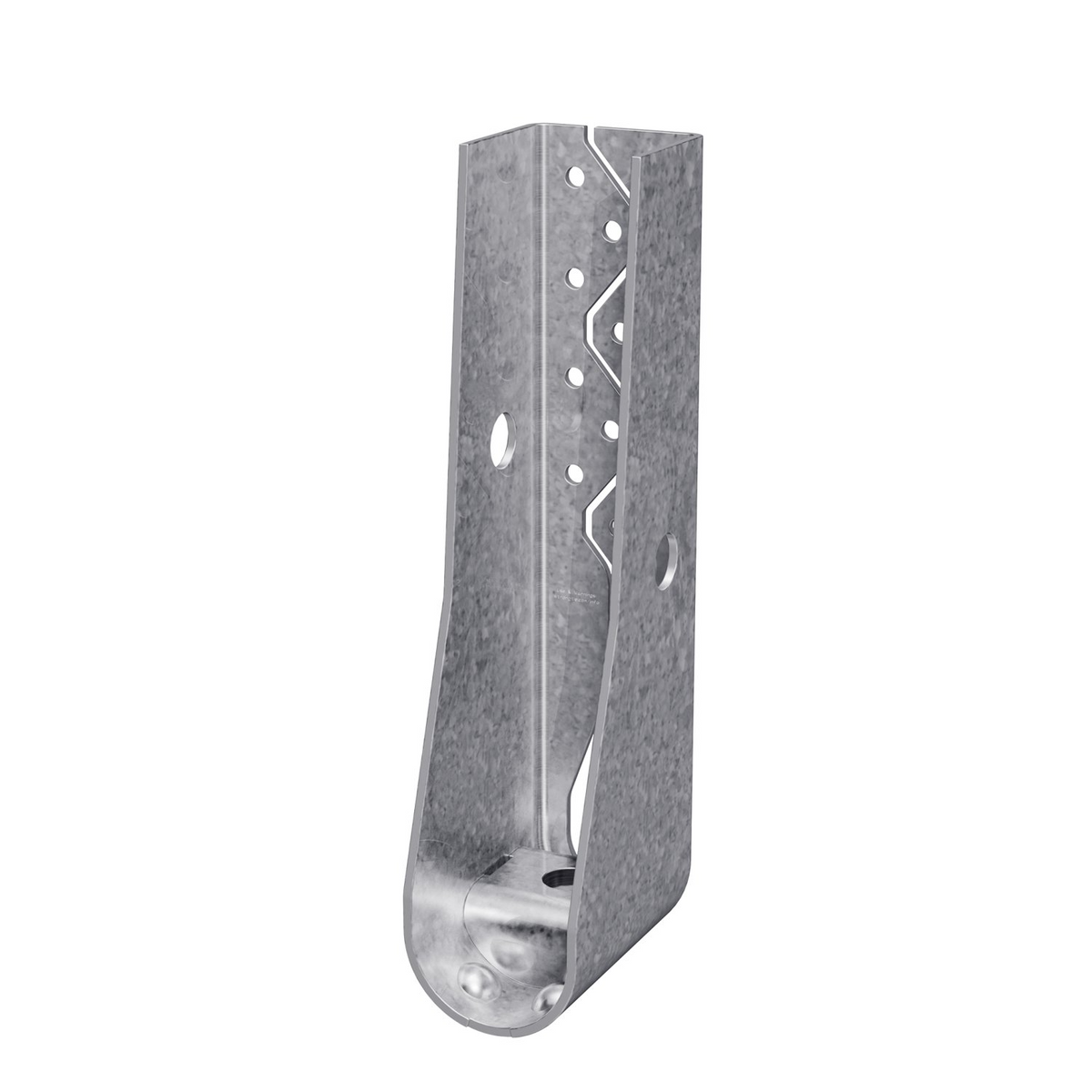

The Simpson S/HDU6 S/HDU 10-3/8 in. Holdown for Cold-Formed Steel by Simpson Strong-Tie is engineered specifically for cold-formed steel framing applications, anchoring shearwalls to the foundation to resist overturning forces. Combining high performance with ease of installation, the S/HDU series features a pre-deflected geometry that virtually eliminates material stretch, delivering low deflection under load and reducing both installation time and labor cost through the use of self-drilling tapping screws.
Key Features
- Designed for use with cold-formed steel framing
- Anchors the shearwall to the foundation to resist overturning
- Height: 10-3/8 in.
- Made from 118 mil (10 ga.) steel
- Galvanized (G90) for corrosion resistance
- Pre-deflected geometry virtually eliminates material stretch, resulting in low deflection under load
- Installation using self-drilling tapping screws into the studs reduces installation time and saves labor cost
Specifications
- MPN: S/HDU6
- Height: 10-3/8 in.
- Thickness: 118 mil
- Gauge: 10 ga.
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- High-Wind Construction
Frequently Asked Questions
- What type of framing is the S/HDU6 holdown designed for?
- The S/HDU6 is specifically designed for use with cold-formed steel (CFS) framing, making it suitable for a wide range of CFS construction projects both large and small.
- How is the S/HDU6 installed?
- Install with (12) #14 self-drilling screws to the stud and (1) 5/8 in. diameter anchor bolt to structure. The use of self-drilling tapping screws reduces installation time and saves labor cost.
- What makes the S/HDU6 effective at reducing deflection?
- The S/HDU series features a pre-deflected geometry that virtually eliminates material stretch, resulting in low deflection under load - a critical performance characteristic for shearwall holdown applications.
- What corrosion protection does the S/HDU6 have?
- The S/HDU6 is coated with a Zinc Galvanized, G90 finish, providing reliable corrosion resistance for cold-formed steel framing environments.
