Product Features
Product Description

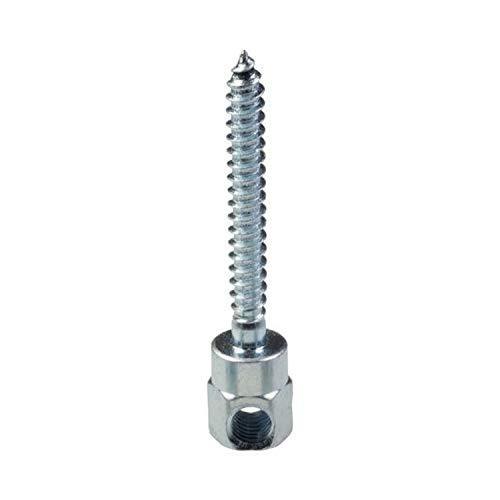

The Simpson Strong-Tie RWH37212 3/8 in. Horizontal Wood Rod Hanger is a one-piece fastening system engineered for suspending threaded rod from the side of joists, columns, and overhead wood members. Designed by Simpson Strong-Tie, this horizontal threaded anchor delivers a fast, reliable installation with no predrilling required, making it an efficient solution for rod-hanging applications in wood construction.
Key Features
- Threaded anchor for rod-hanging applications in wood
- Suitable for installation horizontally into the side of joists, columns, and overhead members
- No predrilling required
- Type-17 point provides for fast starts
- Custom-matched nut driver sets anchor to optimal depth (model RND62 sold separately)
- For 3/8 in. threaded rod with 16 threads per inch
- Anchor size: 5/16 in. x 2-1/2 in.
- Made from zinc-plated carbon steel
- Recommended for use in dry, interior, non-corrosive environments only
Specifications
- Manufacturer: Simpson Strong-Tie
- MPN: RWH37212
- Material: Carbon Steel
- Coating / Finish: Zinc Plated
- Anchor Diameter: 5/16 in.
- Anchor Length: 2-1/2 in.
- Rod Diameter / Thread: 3/8 in. - 16 threads per inch
- Installation Orientation: Horizontal
- Point Type: Type-17
- Packaging: Packs of 25 and Cartons of 250
- Country of Origin: Taiwan
Approved Applications
- Pipe hanging systems
- Fire protection systems
- Electrical conduit support
- Cable-tray applications
- Suspension of threaded rod from the side of joists, columns, and overhead wood members
Frequently Asked Questions
- Does this rod hanger require predrilling before installation?
- No predrilling is required. The Type-17 point on the RWH37212 is specifically designed to provide fast starts and drive directly into wood members without the need for a pilot hole.
- What size threaded rod is this hanger compatible with?
- The RWH37212 is designed for use with 3/8 in. threaded rod with 16 threads per inch (3/8 - 16 thread pattern).
- What tool is needed to install this anchor to the correct depth?
- Simpson Strong-Tie offers a custom-matched nut driver, model RND62 (sold separately), that sets the anchor to its optimal installation depth for consistent and reliable results.
- Is this rod hanger suitable for outdoor or corrosive environments?
- No. The RWH37212 is recommended for use in dry, interior, non-corrosive environments only. Its zinc-plated carbon steel construction is not intended for exposure to moisture, chemicals, or corrosive conditions.
Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
