Product Features
Product Description

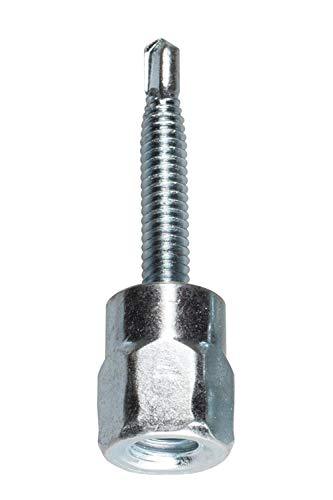

Simpson RSV37112 Steel Rod Hanger by Simpson Strong-Tie is a one-piece threaded anchor fastening system designed to suspend 3/8 in. threaded rod in vertical overhead applications from steel joists and beams. With a self-drilling tip that eliminates the need for predrilling, this zinc-plated carbon steel anchor delivers fast, reliable installation into steel members for pipe hanging, fire protection, electrical conduit, and cable-tray applications.
Key Features
- Threaded anchor for rod-hanging applications in steel members
- Suitable for installation vertically in overhead applications
- Self-drilling, no predrilling required
- Custom-matched nut driver sets anchor to optimal depth (model RND62 sold separately)
- For 3/8 in. threaded rod with 16 threads per inch
- Anchor size: 1/4 in. x 1-1/2 in.
- Made from zinc-plated carbon steel
Specifications
- MPN: RSV37112
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Coating / Finish: Zinc Plated
- Anchor Size: 1/4 in. x 1-1/2 in.
- Bolt / Rod Diameter: 3/8 - 16
- Drill Point: #3
- Compatible Steel Thickness: 20 ga. - 14 ga.
- Application Orientation: Vertical
- Packaging: Packs of 25 and Cartons of 250
- Country of Origin: Taiwan
Approved Applications
- Pipe hanging systems in commercial and industrial settings
- Fire protection sprinkler rod suspension
- Electrical conduit support from overhead steel members
- Cable-tray suspension applications
- General threaded rod hanging from steel joists and beams
- Recommended for dry, interior, non-corrosive environments only
Downloads and Resources
Frequently Asked Questions
- What size threaded rod is this anchor designed for?
- This anchor is designed for 3/8 in. threaded rod with 16 threads per inch (3/8 - 16).
- Does installation require predrilling into the steel member?
- No predrilling is required. The RSV37112 features a self-drilling tip that drives directly into the steel member for faster, easier installation.
- What steel thicknesses is this rod hanger compatible with?
- The RSV37112 is compatible with steel members ranging from 20 gauge to 14 gauge in thickness.
- Is a special tool needed to install this anchor correctly?
- A custom-matched nut driver (model RND62, sold separately) is recommended to set the anchor to its optimal installation depth for best performance.
Note: Product dimensions may differ from picture. Please see the item description above for specifications.
