Product Features
Product Description

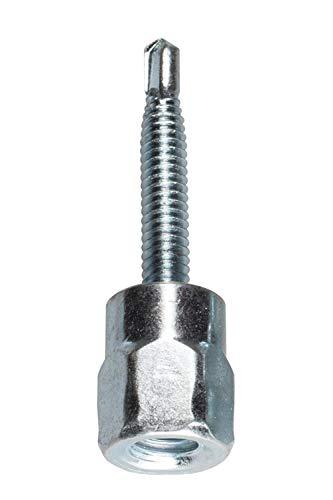

Simpson RSV25100 Steel Rod Hanger 1/4 in. x 1 in. Vertical Threaded Anchor for 1/4 in. Rod is a one-piece fastening system from Simpson Strong-Tie engineered for suspending threaded rod in overhead applications from steel joists and beams. Designed for vertical installation, this self-drilling anchor requires no predrilling and provides a reliable attachment point for pipe hanging, fire protection, electrical conduit, and cable-tray applications in dry, interior, non-corrosive environments.
Key Features
- Threaded anchor for rod-hanging applications in steel members
- Suitable for installation vertically in overhead applications
- Self-drilling, no predrilling required
- Custom-matched nut driver sets anchor to optimal depth (model RND62 sold separately)
- For 1/4 in. threaded rod with 20 threads per inch
- Anchor size: 1/4 in. x 1 in.
- Made from zinc-plated carbon steel
Specifications
- Model Number: RSV25100
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Coating/Finish: Zinc Plated
- Anchor Size: 1/4 in. x 1 in.
- Bolt/Rod Diameter: 1/4 - 20 (1/4 in. with 20 threads per inch)
- Drill Point: #3
- Compatible Member Thickness: 20 ga. - 12 ga.
- Installation Orientation: Vertical
- Packaging: Packs of 25 and Cartons of 250
- Country of Origin: Taiwan
Approved Applications
- Pipe hanging systems
- Fire protection installations
- Electrical conduit support
- Cable-tray applications
- Overhead suspension from steel joists and beams
- Dry, interior, non-corrosive environments only
Downloads and Resources
Frequently Asked Questions
- Does the RSV25100 require predrilling before installation?
- No. The RSV25100 features a self-drilling tip, so no predrilling is required. The anchor drives directly into compatible steel members ranging from 20 ga. to 12 ga. in thickness.
- What threaded rod size is compatible with this rod hanger?
- This anchor is designed specifically for 1/4 in. threaded rod with 20 threads per inch (1/4 - 20 thread specification).
- Is a special tool required to install the RSV25100?
- A custom-matched nut driver is recommended to set the anchor to its optimal depth. The compatible nut driver is model RND62, which is sold separately.
- Can this vertical rod hanger be used outdoors or in corrosive environments?
- No. The RSV25100 is recommended for use in dry, interior, non-corrosive environments only. For applications requiring corrosion resistance, a different product would be necessary.
Note: Product dimensions may differ from picture. Please see the item description above for specifications.
