Product Description

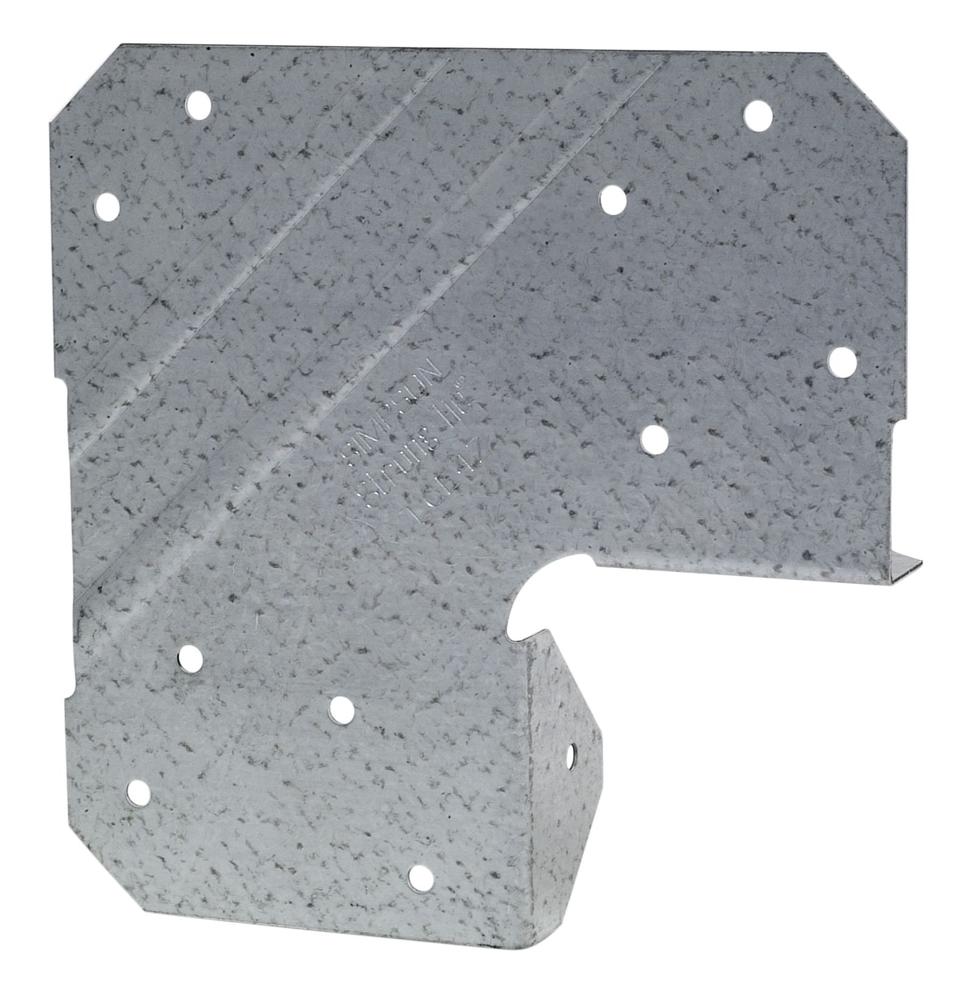

The Simpson LCE4Z ZMAX Galvanized End Post Cap by Simpson Strong-Tie is a light post cap engineered for end conditions where the end of a beam bears on a wood post. Designed to transfer load efficiently from the beam into the post and ultimately into the foundation, this two-piece connector accommodates nominal 4x or 6x lumber and is equally suited for new construction and retrofit applications. Its ZMAX galvanized coating delivers superior corrosion resistance, making it a reliable choice for exterior and treated-wood environments.
Key Features
- Always install in pairs; universal design eliminates need for rights and lefts
- Stronger than angled nailing or screw fastening; eliminates nailing into end grain
- Tested and approved for mitered end conditions
- For use with nominal 4x or 6x lumber
- Height: 5-3/8 in.
- Made from 20-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- Model Number: LCE4Z
- Gauge: 20
- Height: 5-3/8 in.
- Coating/Finish: ZMAX
- Member Size: 4x or 6x
- Install With: (12) 0.162 in. 3-1/2 in. nails or (12) #10 x 1-1/2 in. Strong-Drive SD Connector screws for each LCE4Z part
- Country of Origin: United States
Frequently Asked Questions
- Does the LCE4Z need to be installed in pairs?

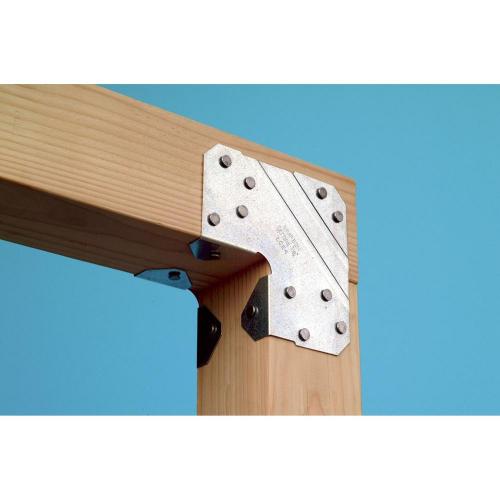

- Yes. The LCE4Z must always be installed in pairs to achieve allowable loads. One unit is installed on each outside face of the post-and-beam connection. The universal design eliminates the need for separate right-hand and left-hand versions.
- What lumber sizes is the LCE4Z compatible with?
- The LCE4Z is designed for use with nominal 4x or 6x lumber, making its two-piece design versatile across a range of common beam and post configurations.
- What fasteners are required to install the LCE4Z?
- Each LCE4Z part requires either (12) 0.162 in. 3-1/2 in. nails or (12) #10 x 1-1/2 in. Strong-Drive SD Connector screws for proper installation.
- Why is ZMAX galvanization important for this post cap?
- ZMAX galvanization provides an extra layer of corrosion resistance compared to standard galvanized coatings, making the LCE4Z well suited for exterior applications and use with treated wood where moisture and chemical exposure are common concerns.
Note: This product must be installed in pairs.
