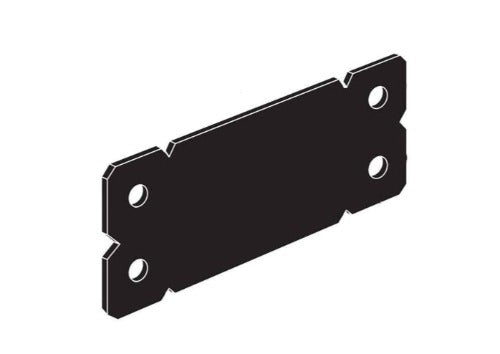

Simpson Strong-Tie OHS135 Ornamental Strap Tie is a heavy-duty black powder-coated strap tie engineered by Simpson Strong-Tie to transfer tension loads across a variety of structural applications. Designed specifically for ornamental use, this strap tie delivers a refined, finished appearance without sacrificing structural performance, making it an ideal choice where both aesthetics and load-bearing capability matter.

Key Features

• Flat black powder-coated finish provides a more durable and better-looking result than standard paint
• Designed for ornamental applications where a finished appearance is required
• Transfers tension loads across a variety of structural applications
• Notched strap design for precise alignment at splice joints
• Allowable loads increased 60% for wind or earthquake loading with no further increase allowed
• Gauge 7 steel construction for reliable structural integrity
• Made in the United States

Specifications

• Model No.: OHS135
• Gauge: 7
• Width: 6 in.
• Length: 13-1/2 in.
• Coating/Material: Powder Coating, Black
• Fasteners Required: (4) 3/4" Machine Bolts
• Country of Origin: United States

Approved Applications

• Tension load transfer across structural splices and connections
• Ornamental and exposed structural installations requiring a finished look
• Applications subject to wind or seismic (earthquake) loading conditions
• Parallel-to-grain loading with a minimum member thickness of 3-1/2 in. using machine bolts in single shear

Frequently Asked Questions

What type of fasteners are required to install the OHS135 strap tie?

Installation of the OHS135 requires (4) 3/4" machine bolts. Bolt edge distances must meet NDS minimum requirements, and straps must be centered about the splice joint.

Can the OHS135 be used in wind or earthquake load applications?

Yes. Allowable loads have been increased 60% for wind or earthquake loading with no further increase allowed. Loads should be reduced where other loads govern.

What is the advantage of the powder-coated finish on the OHS135 compared to standard paint?

The flat black powder-coated finish on the OHS135 produces a much more durable and better-looking finish than standard paint, making it well-suited for ornamental and exposed applications.

What are the loading requirements and member thickness minimums for the OHS135?

Allowable loads are based on parallel-to-grain loading and a minimum member thickness of 3-1/2 in. with machine bolts in single shear. The designer must determine allowable loads when combining bolts parallel and perpendicular to grain.
