Product Description

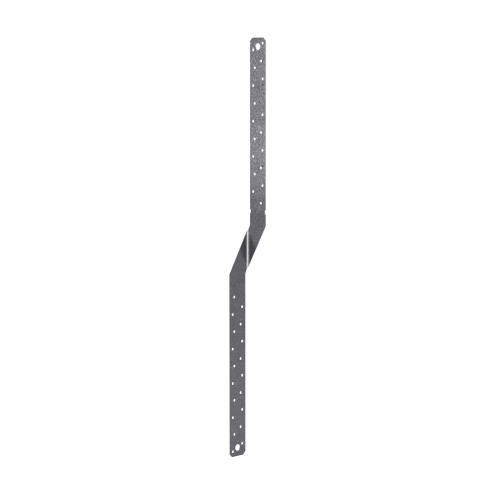

The Simpson Strong-Tie MTS30C 30-Inch 16-Gauge Galvanized Medium Twist Strap is an economical tension connection strap engineered to resist moderate uplift loads at the rafter or heel of a truss. Manufactured by Simpson Strong-Tie, this twist strap features a small bend section that reduces interference at transition points between two members, making installation clean and efficient without requiring the strap to be wrapped over the truss to achieve allowable load values.
Key Features
- Provides a reliable tension connection between two structural members
- Resists moderate uplift loads at the rafter or heel of a truss
- Small bend section reduces interference at transition points between members
- Straps do not need to be wrapped over the truss to achieve the allowable load
- Available with the bend reversed - specify "-REV" after the model number (e.g., MTSXX-REV)
- Versatile with many lengths offered to fit specific applications
- Zinc Galvanized G90 coating provides corrosion resistance
- Made in the United States
Specifications
- Model Number: MTS30C
- Gauge: 16
- Thickness (mil): 54
- Length (in.): 30
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Rafter-to-top-plate tension connections
- Heel of truss uplift resistance connections
- General tension connections between two structural members requiring moderate uplift load resistance
Options
- Available with the bend reversed. Specify "-REV" after the model number, such as MTSXX-REV.
Frequently Asked Questions
- What fasteners are required to install the MTS30C?
- The MTS30C should be installed with 10d common nails, 10d x 1-1/2 in. nails, or #9 x 1-1/2 in. Strong-Drive SD screws.
- Does the MTS30C strap need to be wrapped over the truss during installation?
- No. The MTS30C is designed so that straps do not need to be wrapped over the truss to achieve the allowable load, simplifying the installation process.
- What is the coating on the MTS30C, and why does it matter?
- The MTS30C features a Zinc Galvanized G90 coating, which provides a layer of corrosion resistance suitable for use in structural framing applications where moisture exposure is a concern.
- Can the MTS30C be ordered with the bend reversed?
- Yes. The MTS is available with the bend reversed to accommodate different installation orientations. To order the reversed-bend version, specify "-REV" after the model number (for example, MTSXX-REV).
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
