Product Description

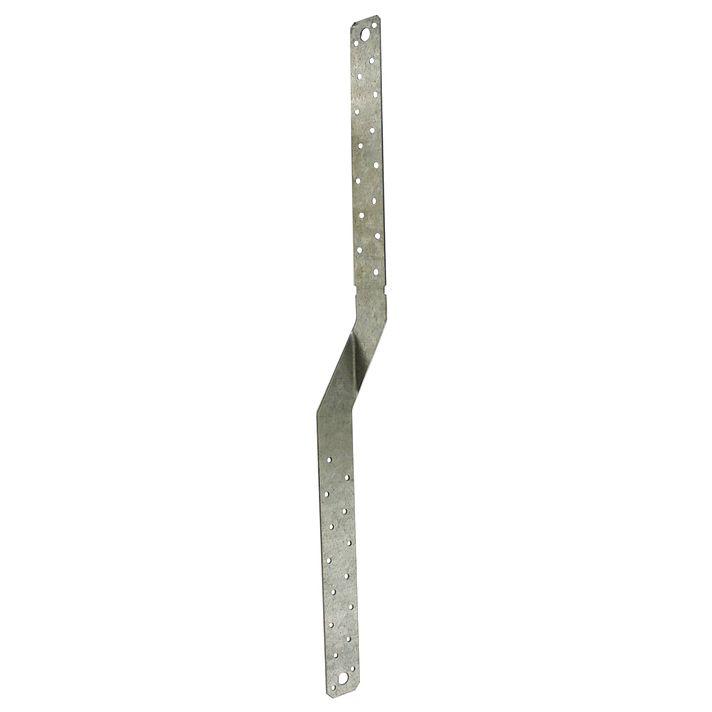

The Simpson MTS20Z MTS 20 in. 16-Gauge ZMAX Galvanized Medium Twist Strap by Simpson Strong-Tie provides a reliable tension connection between two structural members. This economical twist strap resists moderate uplift loads at the rafter or heel of a truss, featuring a 2-in. bend section that reduces interference at the transition points between the two members. ZMAX galvanization delivers enhanced corrosion resistance, making it well suited for exterior and treated-wood applications.
Key Features
- Available with the bend reversed - specify "-REV" after the model number, such as MTSXX-REV
- Straps do not need to be wrapped over the truss to achieve the allowable load
- Versatile with many lengths offered to fit the specific application
- Length: 20 in.
- Made from 16-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- Model Number: MTS20Z
- Gauge: 16
- Thickness: 54 mil
- Length: 20 in.
- Coating: ZMAX
- Finish: ZMAX
- Country of Origin: United States
Approved Applications
- Tension connection between two structural members
- Rafter uplift resistance
- Heel-of-truss uplift resistance
- Exterior applications requiring corrosion resistance
- Treated-wood construction applications
Frequently Asked Questions
- What fasteners should be used to install the MTS20Z?
- Install with 10d common nails, 10d x 1-1/2 in. nails or #9 x 1-1/2 in. Strong-Drive SD screws.
- Does the strap need to be wrapped over the truss during installation?
- No. Straps do not need to be wrapped over the truss to achieve the allowable load, simplifying installation.
- Is the MTS20Z available with the bend in the opposite direction?
- Yes. The MTS20Z is available with the bend reversed. Specify "-REV" after the model number, such as MTSXX-REV, when ordering the reversed-bend configuration.
- Why does the MTS20Z use ZMAX galvanization instead of standard galvanization?
- ZMAX galvanization offers extra corrosion resistance compared to standard coatings, making the MTS20Z suitable for exterior environments and applications involving treated wood where greater protection against corrosion is required.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
