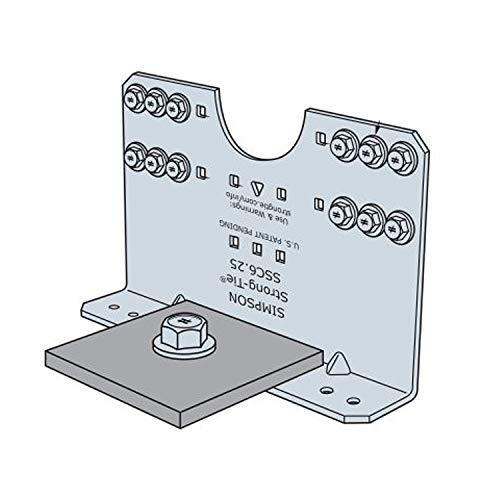

The Simpson MSSC6.25KW-KT20 Kneewall Connector is a rigid cold-formed steel (CFS) connector from Simpson engineered for moment-resisting kneewall lighter-duty applications in steel framing construction. Designed to work in tandem with BP 1/2-3 bearing plates - which are included in each package - this 6-1/4 in. connector delivers the increased load capacity required for steel framing applications, making it a dependable choice for supporting load-bearing walls in curtain-wall construction, drywall, and kneewall projects.

Key Features

• One simple custom hole pattern for each stud size - simplifies specification and installation, reducing layout time and the chance of field errors.
• 3/8 in. diameter anchor bolt location - enables easy tool access during fastening, helping installers work efficiently even in tight framing conditions.
• BP 1/2-3 bearing plates included - each package contains both connectors and matching bearing plates so the complete kneewall connection solution arrives together, ready to install.
• MSSC connector made from 97 mil (12 ga.) steel rated at 50 ksi - delivers the structural rigidity and load capacity demanded by cold-formed steel construction applications.
• Compatible with 8 in. deep steel framing members - the 6-1/4 in. connector is sized precisely for this member depth, ensuring a proper fit without field modification.
• Zinc galvanized (G90) finish on the MSSC connector - provides corrosion resistance suited to demanding construction environments, helping the connection maintain long-term integrity.

Why This Product

• A complete, coordinated connection kit - the MSSC connectors and BP 1/2-3 bearing plates are packaged together and engineered to work as a system, giving contractors everything needed for moment-resisting kneewall connections without sourcing components separately.
• Designed specifically for cold-formed steel framing - unlike generic connectors, the MSSC series is purpose-built for CFS construction, delivering the increased load capacity that steel applications require across curtain-wall, kneewall, and drywall projects.
• Simplified installation through consistent hole patterns - a single custom hole pattern per stud size means faster, more predictable installation in the field, reducing labor time and specification complexity on the job site.
• Heavy-gauge construction for reliable structural performance - with the MSSC made from 12 ga. steel and the BP bearing plate from 3 ga. steel, this connector kit is built to handle the structural demands of load-bearing wall support applications in commercial and residential steel framing.

Specifications

• MPN: MSSC6.25KW-KT20
• Brand: Simpson Strong-Tie
• Length: 6-1/4 in.
• Gauge: 12 ga. (97 mil)
• Member Size: 8 in. depth
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Material (MSSC): 97 mil (12 ga.) steel, 50 ksi
• Material (BP): 229 mil (3 ga.) steel, 33 ksi
• Anchor Bolt Diameter: 3/8 in.
• Packaging Quantity: 20
• Install With: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com
• Country of Origin: United States

Approved Applications

• Curtain-Wall Construction

What's Included

• (20) MSSC6.25KW kneewall connectors
• (20) BP bearing plates

Frequently Asked Questions

What framing member size is the MSSC6.25KW-KT20 compatible with?

The MSSC6.25KW-KT20 is a 6-1/4 in. kneewall connector designed to be compatible with 8 in. deep steel framing members in cold-formed steel (CFS) construction applications.

Are bearing plates included with this connector kit?

Yes. Each package includes 20 MSSC kneewall connectors and 20 BP 1/2-3 bearing plates. The MSSC connectors are designed to work in tandem with these bearing plates to provide solutions for moment-resisting kneewall lighter-duty applications.

What are the material and finish specifications for the MSSC connector and the BP bearing plate?

The MSSC connector is made from 97 mil (12 ga.) steel with a 50 ksi rating and features a zinc galvanized (G90) finish. The BP bearing plate is made from 229 mil (3 ga.) steel with a 33 ksi rating and has an uncoated steel finish.

What fasteners are required to install the MSSC6.25KW-KT20?

Fasteners may vary by application. For specific fastener requirements, refer to the Simpson Strong-Tie catalog or strongtie.com to ensure proper installation for your project conditions.

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
