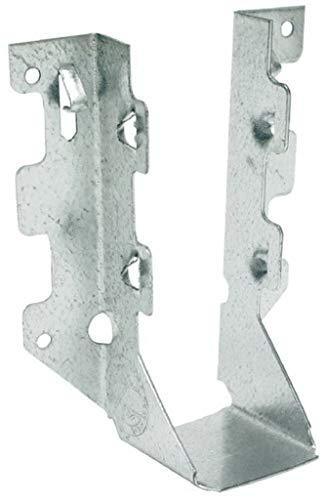

The Simpson 2 x 6 Face Mount Hanger with Double Shear ZMAX LUS26Z is an engineered face-mount joist hanger from Simpson designed to provide reliable support underneath joists, rafters, or beams for a strong, code-compliant framing connection. Built from 18-gauge steel with ZMAX galvanization for extra corrosion resistance, this hanger is well-suited for exterior applications and connections involving ACQ or other pressure-treated lumber. Its patented double-shear nailing design distributes load through two points on each joist nail, making it a practical choice for residential and commercial framing crews who need a faster, stronger connection with common lumber sizes including 2x6 and 2x8 members.

Key Features

• Patented double-shear nailing design - distributes load through two points on each joist nail, delivering greater strength with fewer nails so installation goes faster without sacrificing structural performance
• Speed prongs - hold the hanger in position during install, reducing the need for a second set of hands and speeding up repetitive framing tasks
• Angled joist nailing - makes fastening easier in tight or confined spaces where a straight nail drive is not practical
• ZMAX galvanization - provides extra corrosion resistance beyond standard galvanized finishes, making this hanger appropriate for exterior framing and use with ACQ or other treated-wood lumber
• 18-gauge steel construction - offers a reliable strength-to-weight ratio for a wide range of residential and commercial face-mount joist and rafter connections
• Compatible with common fasteners - accepts Simpson Strong-Tie Strong-Drive SD Connector screws or Strong-Drive SCN Smooth-Shank Connector nails, so installers can use fasteners they already stock on the job site
• Tabs must not be bent or removed - preserving the factory geometry maintains the rated load capacity and keeps the connection code-compliant

Why This Product

• Fewer nails, same strong connection - the patented double-shear nailing design achieves greater load distribution per nail, which means less hardware, less labor, and a faster installation across repeated connections in a framing project
• Built for treated-wood and exterior environments - ZMAX galvanization is specifically engineered to hold up against the corrosive chemistry of ACQ and other treated lumber types, giving this hanger a longer service life in conditions that would degrade a standard galvanized connector
• Designed for real job-site conditions - speed prongs and angled joist nailing work together to make installation manageable in tight bays and confined framing spaces where positioning and driving nails straight is difficult
• Versatile fit for common framing members - supports both 2x6 and 2x8 nominal lumber sizes, reducing the number of different hanger models a crew needs to keep on hand for typical residential and light commercial joist and rafter work

Specifications

• MPN: LUS26Z
• Brand: Simpson Strong-Tie
• Gauge: 18
• Coating/Finish: ZMAX
• Member Size: 2x6 and 2x8
• Seat Depth: 1-3/4 in.
• Width: 1-9/16 in.
• Height: 4-3/4 in.

Approved Applications

• Face-mount joist and rafter connections in residential and commercial framing
• Exterior applications requiring enhanced corrosion resistance
• Connections involving ACQ or other treated-wood lumber
• Common lumber sizes including 2x6 and 2x8 members

Frequently Asked Questions

What is the advantage of the double-shear nailing design on the LUS26Z?

The patented double-shear nailing design distributes the load through two points on each joist nail, providing greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection.

What fasteners should be used to install the LUS26Z?

Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (4) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (8) 0.148 in. x 3 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 10DHDG).

Is the LUS26Z suitable for use with pressure-treated lumber?

Yes. The ZMAX galvanization offers extra corrosion resistance specifically designed for exterior and treated-wood applications, making it appropriate for use with ACQ and other treated lumber types.

Can the tabs on the LUS26Z be bent or removed to fit a specific application?

No. The tabs on the LUS26Z must not be bent or removed. Modifying the connector in this way could compromise its structural integrity and load-rated performance.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
