Product Description

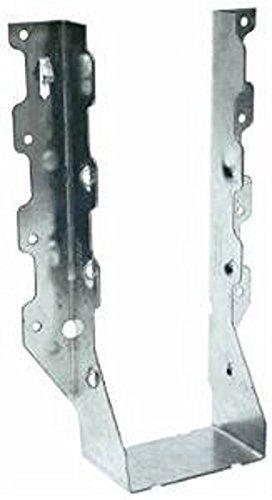

Simpson LUS210-2Z LUS ZMAX Galvanized Face-Mount Joist Hanger for Double 2x10 by Simpson Strong-Tie is an economical, easy-to-install face-mount hanger engineered to support double 2x10 joists, rafters, or beams with a strong, load-rated connection. Built with a patented double-shear nailing design, this hanger distributes load through two points on each joist nail, delivering greater strength while requiring fewer nails and enabling faster installation. The ZMAX galvanized coating provides superior corrosion resistance, making it well suited for exterior and treated-wood applications.
Key Features
- Patented double-shear nailing design provides greater strength with fewer nails
- Speed prongs for fast and easy installation
- Angled joist nailing easier in tight spaces
- Do not bend or remove tabs
- Nominal joist size: Double 2x10 and Double 2x12
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Tested, load rated, and code compliant
- Compatible with all common nail sizes for the same connection
Specifications
- Model Number: LUS210-2Z
- Member Size: Double 2x10, 2x12, 2x14
- Seat Depth: 2 in.
- Gauge: 18
- Coating: ZMAX
- Finish: ZMAX
- Width: 3-1/8 in.
- Height: 9 in.
- Country of Origin: United States
Approved Applications
- Face-mount joist and rafter connections for double 2x10 lumber
- Exterior applications requiring enhanced corrosion resistance
- Treated-wood applications where ZMAX coating is recommended
- Common lumber size framing across a wide range of construction applications
- Not designed for welded or nailer applications
Frequently Asked Questions
- What fasteners should be used to install the LUS210-2Z?
- Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (8) #9 x 1-1/2 in. screws in the header AND (6) #9 x 2-1/2 in. screws in the joist, OR (14) 0.162 in. x 3-1/2 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 16DHDG). Always use all specified fasteners; see Load Tables for full requirements.
- What is the benefit of the double-shear nailing design?
- The patented double-shear nailing design distributes the load through two points on each joist nail, providing greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection.
- Why is ZMAX galvanization important for this hanger?
- ZMAX galvanization offers extra corrosion resistance compared to standard coatings, making the LUS210-2Z well suited for exterior applications and use with treated wood, where exposure to moisture or chemicals could otherwise compromise the connector over time.
- Can the tabs on the LUS210-2Z be bent or removed during installation?
- No. The tabs must not be bent or removed. Doing so could compromise the structural integrity and load performance of the hanger. Joist nails must also be driven at an angle through the joist or truss into the header to achieve the rated table loads.
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
