Product Description

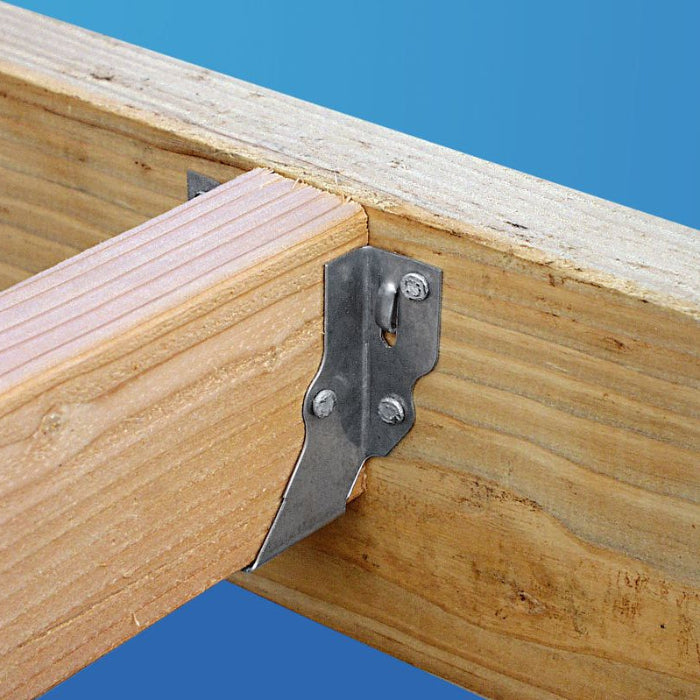

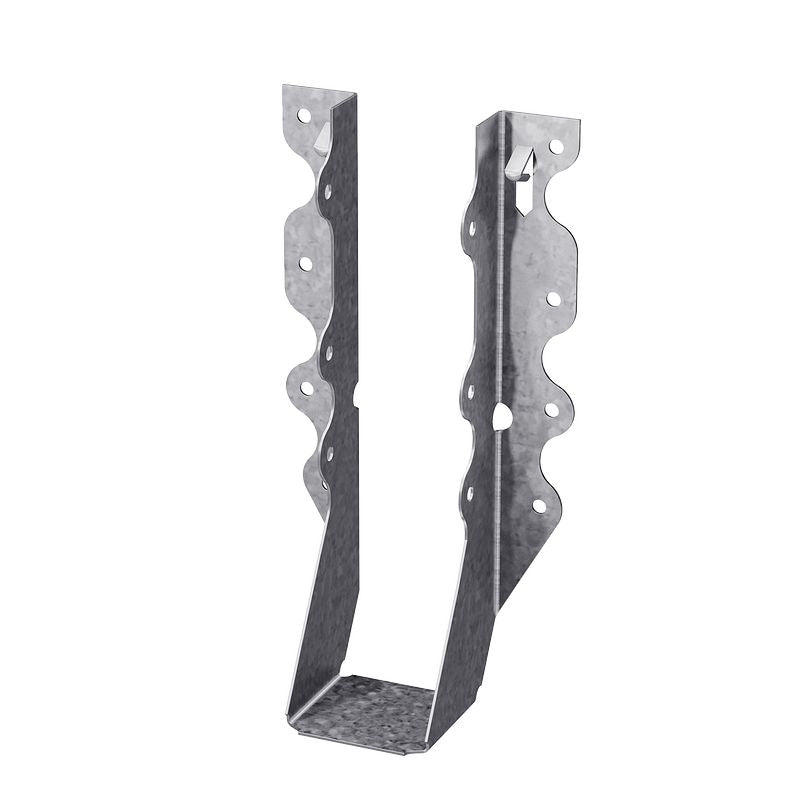

Simpson LU210R-18 LU Galvanized Face-Mount Joist Hanger for 2x10 Rough is a precision-engineered connector from Simpson Strong-Tie designed for joist-to-header installation in wood-framed construction. This face-mount hanger features speed prongs to temporarily position and secure the connector for easier and faster installation. The economical LU hanger is value engineered for strength, making it a reliable and cost-effective choice for residential and light commercial framing projects.

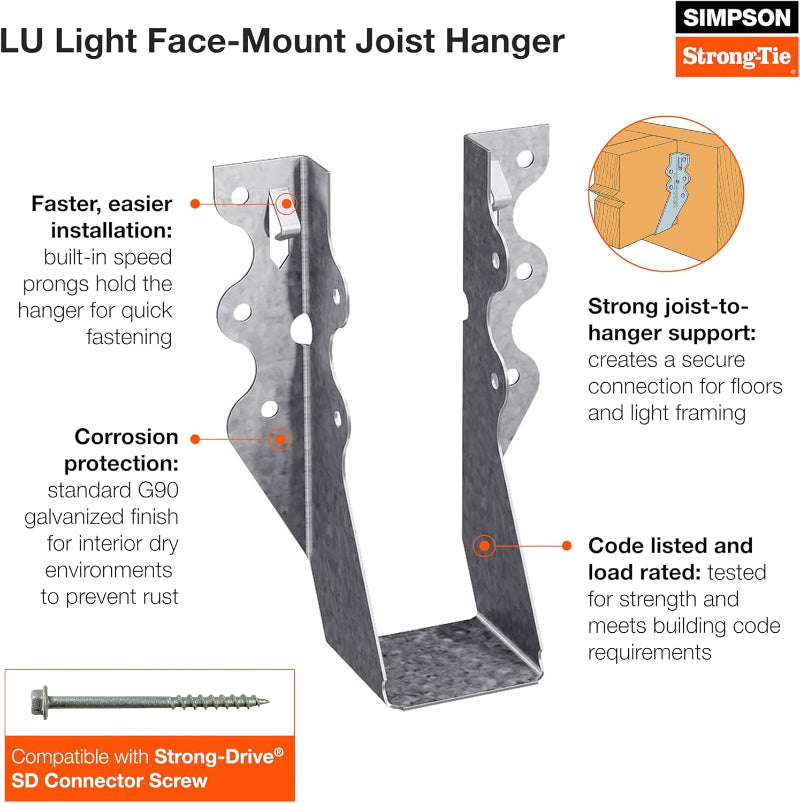

Key Features
- LU-series hangers are tested, load rated and code compliant
- The LU series installs using several fastener selections with tested allowable loads
- Precision-formed - engineered for installation ease and design value
- Speed prongs temporarily position and secure the connector for faster installation
- Seat width: 2 in.
- Nominal joist size: 2x10 rough
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: LU210R-18
- Member Size: 2x10 rough
- Gauge: 18
- Seat Width: 2 in.
- Height: 7-9/16 in.
- Coating/Finish: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications

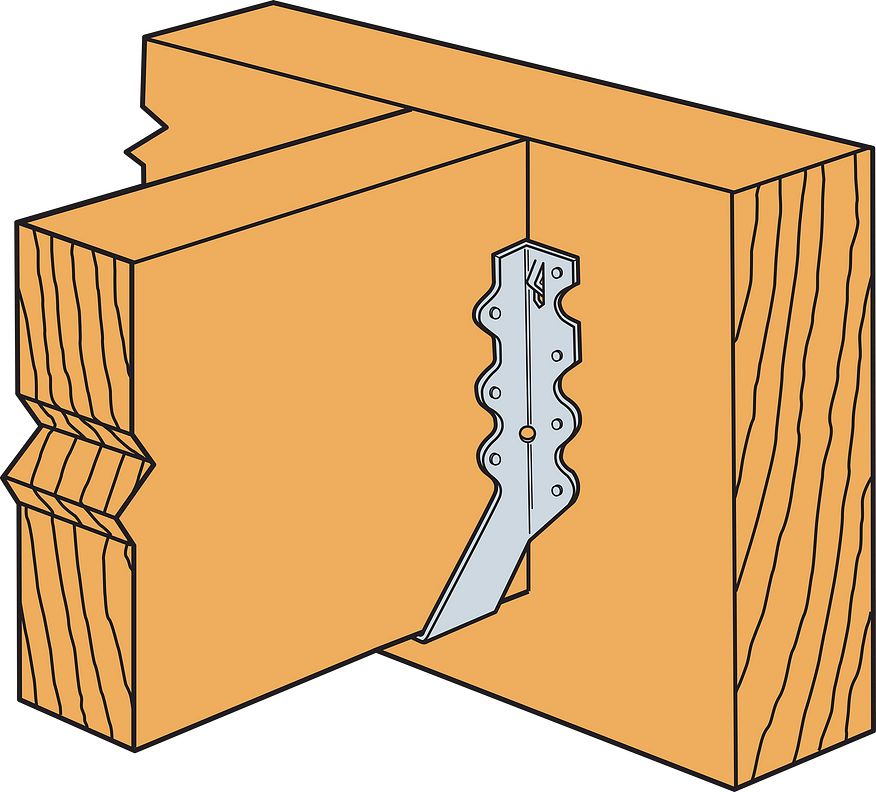

- Joist-to-header connections in wood-framed construction
- Face-mount installations using solid sawn lumber (DF/SP)
- Face-mount installations using solid sawn lumber (SPF/HF)
- Face-mount installations using rough lumber (DF/SP/SPF/HF)
- Joists sloped up to 1/4:12 achieve table loads
- When nailing into solid sawn carrying member's end grain, the allowable load is adjusted by a factor of 0.67
Frequently Asked Questions
- What fasteners are required to install the LU210R-18?
- Install with (10) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.148 in. x 1-1/2 in. nails in the joist. The LU series also supports several fastener selections with tested allowable loads.
- What steel gauge is the LU210R-18 made from, and what corrosion protection does it have?
- The LU210R-18 is made from 18-gauge steel and features a G90 zinc galvanized coating for extra corrosion resistance, making it suitable for treated lumber and other corrosive environments.
- Is the LU210R-18 code compliant?
- Yes. LU-series hangers are tested, load rated and code compliant, providing confidence for use in permitted construction projects.
- What is the nominal joist size for the LU210R-18?
- This hanger is designed for a 2x10 rough nominal joist size with a seat width of 2 in., making it specifically suited for rough-sawn lumber applications.
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture.
