Product Description

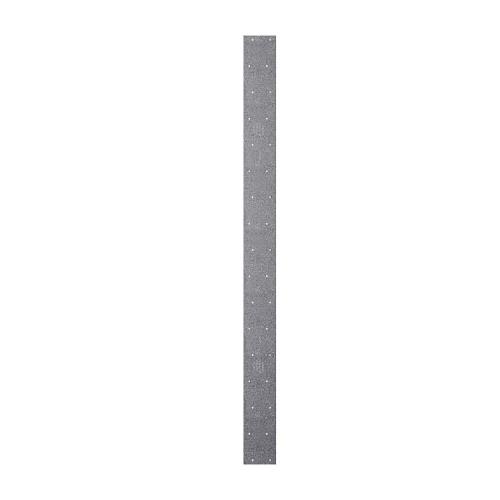

Simpson LSTI73 LSTI 3-3/4 in. x 73 in. 18-Gauge Strap Tie is a load-rated, precut strap tie from Simpson Strong-Tie engineered to resist tension loads in structural connections. Designed specifically for applications where pneumatic nailing is necessary through diaphragm decking and wood chord open web trusses, this light strap tie features a staggered nail pattern to help minimize wood splitting and delivers quick, optimal-performance installation across a wide range of light-duty to heavy-duty framing connections.
Key Features
- Light straps that are suitable where pneumatic-nailing is necessary through diaphragm decking and wood chord open web trusses
- Width: 3-3/4 in.
- Length: 73 in.
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Designed to resist wind and seismic forces in structural applications
- Staggered nail pattern helps minimize wood splitting during installation
- Load-rated and precut for quick, reliable installation
Specifications
- Model Number: LSTI73
- Width: 3-3/4 in.
- Length: 73 in.
- Gauge: 18
- Thickness: 43 mil
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Installation Fasteners: 10d x 1-1/2 in. nails (sold separately)
- Country of Origin: United States
Approved Applications
- Diaphragm decking connections requiring pneumatic nailing
- Wood chord open web truss connections
- Tension load resistance in structural framing
- Wind and seismic force resistance applications
- Light repairs and heavy-duty structural projects
- Wide or narrow face of lumber connections
Frequently Asked Questions
- What fasteners are recommended for installing the LSTI73 strap tie?
- The LSTI73 is designed to be installed with 10d x 1-1/2 in. nails for optimal load performance and connection integrity.
- What gauge steel is the LSTI73 made from, and what corrosion protection does it have?
- The LSTI73 is made from 18-gauge steel and features a G90 zinc galvanized coating, which provides extra corrosion resistance for durability in demanding environments.
- Is the LSTI73 suitable for use with pneumatic nail guns?
- Yes, the LSTI73 is specifically designed as a light strap suitable for applications where pneumatic nailing is necessary, including through diaphragm decking and wood chord open web trusses.
- What are the dimensions of the LSTI73 strap tie?
- The LSTI73 measures 3-3/4 in. wide by 73 in. long and has a thickness of 43 mil, making it a long, versatile strap tie for spanning structural connections.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
