Product Description

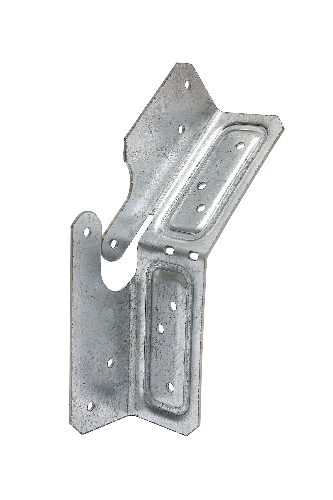

The Simpson KBS1Z Knee-Brace Stabilizer by Simpson is a ZMAX-coated structural connector engineered to create a secure connection between knee bracing and columns or beams, helping to stabilize freestanding structures and comply with many prescriptive deck bracing requirements such as AWC's DCA6 Prescriptive Residential Wood Deck Construction Guide. Factory-formed at a 45 deg. angle and easily installed with nails, the KBS1Z accommodates 2x, 4x, and 6x in-line post-to-beam configurations for reliable, code-conscious deck construction.
Key Features
- Factory-formed at a 45 deg. angle; for installations at an angle other than 45 deg., bend KBS1Z along slots to desired angle - bend one time only
- For equal-width members, install (2) KBS1Z on each end of brace
- For 2x knee brace, install single KBS1Z on each end of brace
- Beam-to-post: Install in pairs
- Made from 16-gauge steel for robust structural performance
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Install with 8d or 8d x 1-1/2 in. nails
- Made in the United States
Specifications
- Model Number: KBS1Z
- Gauge: 16
- Width: 1-1/2 in.
- Length: 3 in.
- Coating/Finish: ZMAX
- Install With: 8d or 8d x 1-1/2 in. nails
- Country of Origin: United States
Approved Applications
- DIY/Home Projects
Frequently Asked Questions
- Can the KBS1Z be installed at an angle other than 45 deg.?
- Yes. For installations at an angle other than 45 deg., bend the KBS1Z along its slots to the desired angle. However, it must be bent one time only to maintain structural integrity.
- What fasteners are required to install the KBS1Z?
- The KBS1Z should be installed with 8d or 8d x 1-1/2 in. nails for a proper and secure connection.
- How many KBS1Z connectors are needed per brace end for equal-width members?
- For equal-width members, install two (2) KBS1Z connectors on each end of the brace. For a 2x knee brace specifically, a single KBS1Z on each end is sufficient. For beam-to-post applications, install in pairs.
- Why does the KBS1Z feature ZMAX galvanization?
- ZMAX galvanization provides extra corrosion resistance, making the KBS1Z well-suited for exterior applications and installations involving treated wood where standard coatings may be insufficient.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Check with your local building department for deck bracing requirements.
