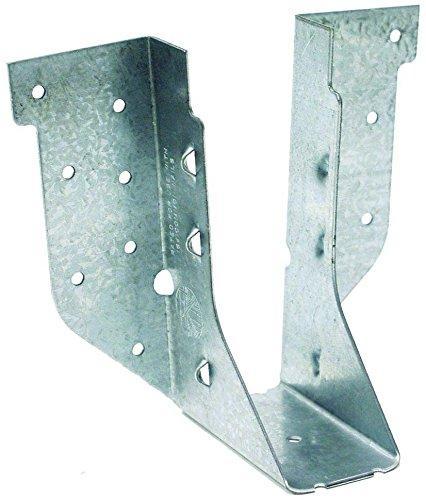

The Simpson HUS26 Face-Mount Joist Hanger is a heavy-duty structural connector from Simpson built for applications where higher loads are needed. Its double-shear nailing design distributes the load through two points on each joist nail for greater strength, which means fewer nails are required, installation goes faster, and all common nails can be used for the same connection. Stamped from 16-gauge steel with a G90 zinc galvanized finish for extra corrosion resistance, this face-mount hanger delivers reliable, code-compliant performance for 2x6 joist framing in both new construction and retrofit situations.

Key Features

• Double-shear nailing design - distributes the load through two points on each joist nail for greater strength, so you can use fewer fasteners without sacrificing connection performance
• Post-installation mounting - can be installed after the beam is secured in place, making it practical for field installations and retrofit framing work where sequence matters
• 16-gauge steel construction - provides the structural rigidity needed for higher-load applications in floor and roof framing systems
• G90 zinc galvanized coating - delivers extra corrosion resistance, keeping the hanger protected in environments where moisture exposure is a concern
• Tested, load rated, and code compliant - the HUS series meets established standards, giving builders and inspectors confidence in the connection without additional verification
• Cannot be modified - must be used as manufactured, preserving the integrity of the tested and rated connection so performance remains predictable on every job

Why This Product

• Engineered for higher-load demands - the double-shear nailing system is specifically designed for applications where standard hangers fall short, letting you meet structural requirements with a single, purpose-built connector
• Faster, simpler installation - because the double-shear design calls for fewer nails and the hanger can go on after the beam is already in place, job-site time and labor are reduced without compromising the connection
• Built-in corrosion protection - the G90 galvanized finish means this joist hanger holds up in damp or moisture-prone framing conditions, reducing concerns about long-term degradation
• Code-compliant confidence out of the box - HUS-series hangers are tested and load rated, so contractors and inspectors can rely on verified performance data rather than guesswork when the connection needs to meet building codes

Specifications

• MPN: HUS26
• Member Size: 2x6
• Height: 5-3/8 in.
• Width: 1-5/8 in.
• Seat Depth: 3 in.
• Gauge: 16
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Install With: 0.162 in. x 3-1/2 in. nails or #10 x 2-1/2 in. Strong-Drive SD screws (sold separately)
• Country of Origin: United States

Frequently Asked Questions

Can the HUS26 be installed after the beam is already in place?

Yes. The HUS26 is specifically designed so that it can be installed after the beam is secured in place, making it a convenient choice for retrofit and field installations.

What fasteners should be used to install the HUS26?

The HUS26 should be installed with 0.162 in. x 3-1/2 in. nails or #10 x 2-1/2 in. Strong-Drive SD screws for a proper, code-compliant connection.

Is the HUS26 corrosion resistant?

Yes. The HUS26 features a G90 zinc galvanized coating, which provides extra corrosion resistance and makes it suitable for use in environments where moisture exposure is a concern.

Can the HUS26 hanger be modified on the job site?

No. The HUS26 cannot be modified. It must be used as manufactured to maintain its tested, load-rated, and code-compliant performance as part of the HUS series.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
