Product Description

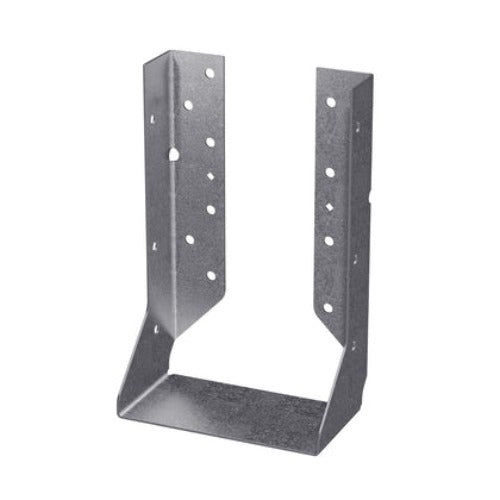

The Simpson HUCQ Heavy Face-Mount Concealed-Flange Joist Hanger is built for structures where additional strength and safety factors are required. Designed specifically for 5-1/8 in. x 9 in. glulam members, this heavy-duty face-mount hanger features concealed header flanges that blend cleanly into exposed framing conditions without sacrificing structural performance. Installation is fast and straightforward - the included Simpson Strong-Drive SDS Heavy-Duty Connector screws drive in without predrilling, delivering high load capacity and reducing labor time on the jobsite.
Key Features
- Concealed header flanges - keep the hanger tucked behind the header for cleaner lines in architecturally exposed framing conditions
- Tested, load rated, and code compliant - the HUCQ series meets established structural standards so builders can specify with confidence
- Strong-Drive SDS Heavy-Duty Connector screws included - everything needed for a complete, high-capacity installation ships with the hanger, eliminating a separate fastener order
- No predrilling required - SDS screws drive directly into the material, reducing installation steps and speeding up framing
- Compatible with wood, masonry, and concrete headers - gives contractors flexibility across a wide range of structural conditions and substrate types
- Can be installed close to the end of the supporting beam - allows placement where other hangers may not fit, expanding design and layout options
- 14-gauge steel construction - provides the heavy-duty thickness required for demanding load applications in engineered lumber framing
- Zinc galvanized G90 finish - resists corrosion in the moisture-exposed environments common to structural framing
Why This Product
- Ready to install out of the box - the hanger ships with all 18 SDS screws needed for a complete header and joist connection, so there are no missing components holding up the job
- Engineered for glulam and heavy timber framing - the HUCQ is purpose-built for 5-1/8 in. x 9 in. glulam joists, making it a direct fit for engineered lumber systems that demand precise, load-rated hardware
- Aesthetics and strength in one hanger - concealed flanges reduce visual clutter in exposed timber applications without compromising the heavy-duty load capacity the HUCQ series is rated for
- Flexible installation near beam ends - the design allows placement close to the end of the supporting beam, giving structural designers and framers more options when working with tighter layouts or existing conditions
Specifications
- MPN: HUCQ5.25/9-SDS
- Member Size: 5-1/8 in. x 9 in. glulam
- Seat Width: 5-1/4 in.
- Material Gauge: 14-gauge steel
- Finish: Zinc Galvanized, G90
- Coating: Zinc Galvanized, G90
- Installation Fasteners: Install with (12) 1/4 in. x 2-1/2 in. SDS screws in the header and (6) 1/4 in. x 2-1/2 in. SDS screws in the joist (screws included)
- Country of Origin: United States
Approved Applications
- Face-mount installation of 5-1/8 in. x 9 in. glulam joists
- Wood joist to wood beam connections
- Wood joist to masonry connections
- Wood joist to concrete connections
- Structures requiring additional strength and safety factors
- Exposed framing conditions where concealed flanges improve aesthetics
What's Included
Each pack contains (1) HUCQ5.25/9-SDS Face-Mount Hanger, (18) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws.
Options
- Contact us for Configurable Options and Special orders
Note: Product dimensions and/or screw holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What size joist is this hanger designed for?
This hanger is specifically designed for a 5-1/8 in. x 9 in. glulam joist, with a seat width of 5-1/4 in.
Are fasteners included with this hanger?
Yes. The hanger includes (18) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws - (12) for the header and (6) for the joist - so no separate fastener purchase is required.
Does installation require predrilling?
No. The Simpson Strong-Drive SDS Heavy-Duty Connector screws install without predrilling, providing high capacity while simplifying and speeding up the installation process.
What substrate types can this hanger connect to?
This hanger supports installation of wood joists to wood, masonry, and concrete supporting members, offering versatility across a range of structural applications.
