Product Description

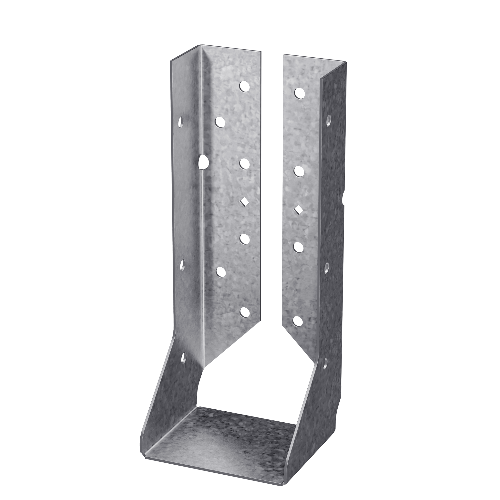

The Simpson HUCQ410-SDS Heavy Face-Mount Concealed-Flange Joist Hanger is an engineered, heavy-duty connector built for structures requiring additional strength and safety factors. Its face-mount design with concealed header flanges allows installation close to the end of the supporting beam, making it well-suited for both structural and exposed framing applications where clean lines matter. Each hanger ships complete with Simpson Strong-Drive SDS Heavy-Duty Connector screws, so installers can go straight to work - no predrilling required.
Key Features
- Concealed header flanges - keep flange hardware out of sight for a cleaner, more finished appearance in exposed framing conditions
- Face-mount design installable close to beam end - gives framers greater placement flexibility without sacrificing connection integrity
- Compatible with wood, masonry, and concrete headers - one hanger covers a wide range of structural substrates, reducing the need for multiple connector types on a job
- Strong-Drive SDS Heavy-Duty Connector screws included - no predrilling needed, which speeds up installation and reduces labor on the jobsite
- 14-gauge steel construction - provides the structural robustness expected in heavy-duty load-bearing applications
- Zinc Galvanized G90 finish - delivers corrosion resistance suited for demanding jobsite environments
- Tested, load rated, and code compliant - gives engineers, inspectors, and contractors confidence that the connection meets recognized performance standards
Why This Product
- Heavy-duty performance with a clean look - the concealed-flange design handles demanding structural loads while keeping the connection visually unobtrusive, a combination that is difficult to achieve with standard open-flange hangers in exposed conditions
- Complete, ready-to-install kit - the included Strong-Drive SDS screws eliminate a separate fastener purchase, and the no-predrill installation requirement means framing crews can maintain momentum without additional setup steps
- Versatile substrate compatibility - approved for connecting wood joists to wood, masonry, and concrete, making this hanger a practical choice across a variety of residential and commercial framing scenarios
- Engineered and code-backed confidence - the HUCQ-series is tested and load rated, giving project teams the documentation they need for inspections and structural sign-off without additional research
Specifications
- MPN: HUCQ410-SDS
- Brand: Simpson Strong-Tie
- Member Size: 4x10
- Seat Width: 3-9/16 in.
- Gauge: 14-gauge steel
- Finish: Zinc Galvanized, G90
- Coating: Zinc Galvanized, G90
- Installation Fasteners: Install with (12) 1/4 in. x 2-1/2 in. SDS screws in the header and (6) 1/4 in. x 2-1/2 in. SDS screws in the joist (screws included)
- Country of Origin: United States
Approved Applications
- Installing wood joists to wood headers and beams
- Installing wood joists to masonry
- Installing wood joists to concrete
- Structures requiring additional strength and safety factors
- Exposed framing conditions where concealed flanges provide a cleaner appearance
What's Included
Each pack contains (1) HUCQ410-SDS Face-Mount Hanger, (18) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws.
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What size joist is the HUCQ410-SDS designed for?
- The HUCQ410-SDS is designed for a nominal 4x10 member size, with a seat width of 3-9/16 in. to securely cradle the joist.
- Do I need to predrill holes before installing this hanger?
- No predrilling is required. The included Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws are engineered for direct installation, providing high load capacity while simplifying the installation process.
- What fasteners are required, and are they included?
- Installation requires (12) 1/4 in. x 2-1/2 in. SDS screws in the header and (6) 1/4 in. x 2-1/2 in. SDS screws in the joist. All 18 screws are included with the hanger.
- What materials can this hanger connect wood joists to?
- The HUCQ410-SDS is designed to install wood joists to wood, masonry, and concrete supporting members, offering versatility across a wide range of structural applications.
Note: Product dimensions and/or screw holes may differ from picture. Please see item description for specifications.
