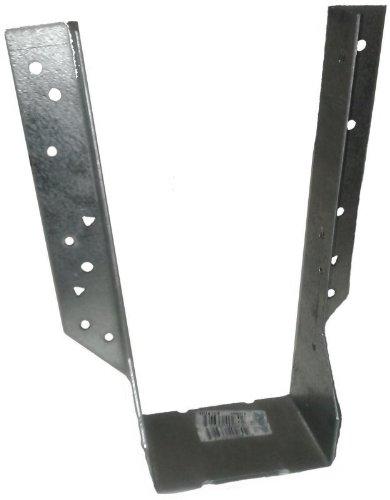

The Simpson 4 x 10 Face-Mount Joist Hanger ZMAX HU410Z is a heavy-duty structural connector built for framing installations that demand reliable load transfer and long-term durability. Engineered by Simpson with a face-mount design, this hanger secures joists and beams directly to the face of the supporting member, making it a dependable choice for residential and commercial framing applications where structural integrity and corrosion resistance are equally important.

Key Features

• Face-mount installation method - attaches directly to the face of the supporting member, simplifying alignment and providing a secure, consistent connection during framing
• 14-gauge steel construction - delivers heavy-duty structural rigidity and the load-bearing capacity needed for demanding joist and beam applications
• ZMAX coating - provides a higher level of corrosion resistance compared to standard galvanized finishes, making this hanger well-suited for use with treated lumber and in moisture-prone environments
• Configurable seat options available - select models in the HU series can be fitted with a skewable seat or a seat that slopes as far as up to 45 deg., accommodating a range of framing angles where a standard flat-seat hanger would not be suitable
• American-made product - manufactured in the United States, reflecting consistent quality control and construction standards

Why This Product

• Built for high-demand framing work - the combination of 14-gauge steel and face-mount construction makes this hanger a practical fit for structural applications where additional strength and safety factors are required
• Superior corrosion protection - the ZMAX coating goes beyond standard galvanizing, giving builders confidence when working with pressure-treated lumber or in environments where moisture exposure is a real concern
• Versatile angle accommodation - the ability to configure the seat for slopes up to 45 deg. means this hanger can handle non-standard framing layouts without requiring a different product entirely
• Trusted Simpson engineering - backed by a brand with a long track record in structural connectors, the HU410Z delivers the dependability that contractors and builders look for on both residential and commercial job sites

Specifications

• Model No.: HU410Z
• Gauge: 14
• Width: 3 9/16
• Height: 8 3/8
• Seat Depth: 2 1/2
• Coating/Material: ZMAX
• Country of Origin: United States

Options

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What type of installation method does the HU410Z use?

The HU410Z uses a face-mount installation method, meaning the hanger is attached directly to the face of the supporting member to secure the joist or beam in place.

What is the gauge of the steel used in the HU410Z?

The HU410Z is constructed from 14-gauge steel, which contributes to its heavy-duty load capacity and structural integrity.

What does the ZMAX coating provide?

The ZMAX coating provides a higher level of corrosion resistance compared to standard galvanized finishes, making the HU410Z well-suited for use with treated lumber and in environments where moisture exposure is a concern.

Can the seat of the HU410Z be adjusted for angled applications?

Some models of the HU hanger series can be configured with a skewable seat and a seat that slopes as far as up to 45 degrees, accommodating a variety of framing angles where standard flat-seat hangers may not be suitable.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
