Product Features
Product Description

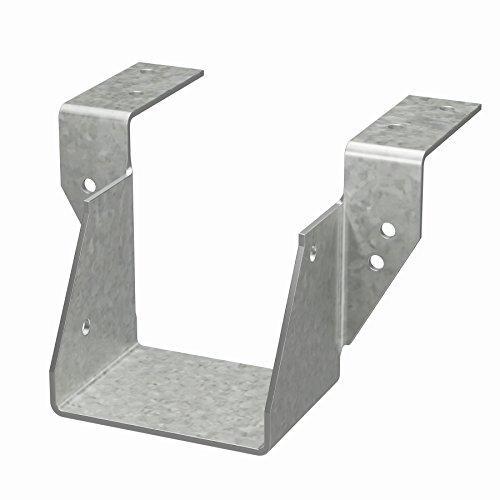

The Simpson Strong-Tie HU24-2TF HUTF Galvanized Top-Flange Joist Hanger for Double 2x4 is a heavy-duty hybrid hanger engineered by Simpson Strong-Tie to deliver the combined advantages of both face-mount and top-mount hanger designs. Built for structural framing applications requiring maximum down loads with a minimum number of fasteners, this hanger features face-nailing that allows it to be securely attached to the supporting member, making it a reliable and code-compliant solution for double 2x4 joist connections.
Key Features
- Hybrid HUTF design incorporates the advantages of both face-mount and top-mount hangers for maximum versatility
- Face-nailing allows the hanger to be securely attached to the supporting member
- The hanger can be skewed a maximum of 45 deg. or sloped downward to a maximum of 45 deg.
- HUTF-series hangers are tested, load rated and code compliant
- Nominal joist size: Double 2x4
- Seat width: 3-1/8 in.
- Made from 12-gauge steel for heavy-duty structural performance
- Galvanized (G90) for extra corrosion resistance
- Rough beam sizes are available by special order
- Made in the United States
Specifications
- MPN: HU24-2TF
- Brand: Simpson Strong-Tie
- Series: HUTF
- Member Size: Double 2x4
- Seat Width: 3-1/8 in.
- Width (W): 3.125 in.
- Height (H): 3-7/16 in.
- B Dimension: 2.5 in.
- TF Dimension: 2.5 in.
- Gauge: 12
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
- Installation Fasteners (sold separately): (8) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 3 in. nails in the joist
Options
- Contact us for additional options or special order inquiries
Frequently Asked Questions
- What makes the HU24-2TF a hybrid hanger?
- The HU24-2TF belongs to Simpson Strong-Tie's HUTF series, which is engineered as a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This design allows for face-nailing to securely attach the hanger to the supporting member while also providing the load capacity benefits of a top-flange configuration.
- What joist size is the HU24-2TF designed for?
- The HU24-2TF is designed specifically for a nominal joist size of Double 2x4, with a seat width of 3-1/8 in.
- What fasteners are required to install the HU24-2TF?
- Install the HU24-2TF with (8) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 3 in. nails in the joist.
- Can the HU24-2TF be used in angled or sloped framing applications?
- Yes. The HU24-2TF hanger can be skewed a maximum of 45 deg. or sloped downward to a maximum of 45 deg., providing flexibility for a variety of framing configurations. It is tested, load rated, and code compliant for these applications.
Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
