Product Description

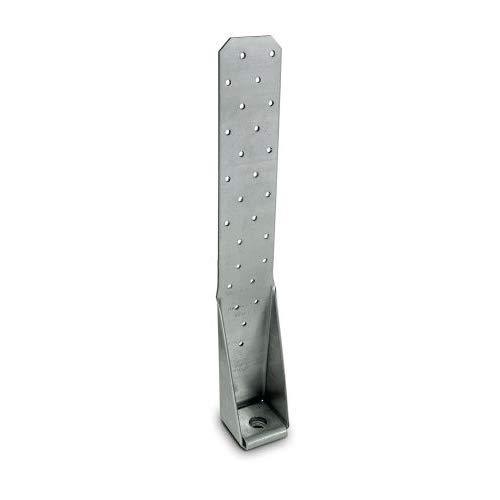

Simpson HTT5HDG HTT 16-in. Hot-Dip Galvanized Heavy Tension Tie for 5/8-in. Anchor is a single-piece formed heavy tension tie from Simpson Strong-Tie, engineered to provide high-strength, post-pour, concrete-to-steel connections. Designed to resist medium tension loads, this heavy tension tie features a four-ply formed seat, eliminates the need for rivets or anchor bolt washers, and is finished in hot-dip galvanization for superior corrosion resistance in exterior and treated-wood applications.
Key Features
- Ideal for retrofit or new construction projects
- Can be installed with cast-in-place or post-installed anchor bolts
- Four-ply formed steel provides increased tension capacity
- Anchor bolt washers not required
- 2-1/2-in. width x 16-in. length
- Anchor rod diameter: 5/8 inch
- Made from 11-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- Model Number: HTT5HDG
- Length: 16 in.
- Width: 2-1/2 in.
- Gauge: 11
- Anchor Rod Diameter: 5/8 in.
- Coating: Hot-Dip Galvanized
- Finish: Hot-Dip Galvanized
- Country of Origin: United States
Approved Applications
- Post-pour, concrete-to-steel wood-frame connections
- Exterior applications requiring enhanced corrosion resistance
- Treated-wood applications where standard galvanization is insufficient
- Retrofit projects utilizing post-installed anchor bolts
- New construction projects utilizing cast-in-place anchor bolts
Downloads and Resources
- Fasteners required. View Specifications
Frequently Asked Questions
- Does the HTT5HDG require anchor bolt washers during installation?
- No. The HTT5HDG is specifically designed without rivets and does not require anchor bolt washers, simplifying the installation process.
- What type of anchor bolt is compatible with the HTT5HDG?
- The HTT5HDG is designed for use with a 5/8-in. anchor bolt. It is compatible with both cast-in-place and post-installed anchor bolts, making it suitable for new construction as well as retrofit applications.
- Why is the hot-dip galvanized finish important for this tension tie?
- Hot-dip galvanization (HDG) provides extra corrosion resistance compared to standard coatings, making the HTT5HDG well suited for exterior applications and use with treated wood, where exposure to moisture and chemicals can accelerate corrosion.
- How many fasteners are required to install the HTT5HDG, and what types are approved?
- Installation requires (26) fasteners in addition to the 5/8-in. anchor bolt. Approved fastener types include 0.148 x 1-1/2-in. nails, 0.148 x 3-in. nails, 0.162 x 2-1/2-in. nails, or #10 x 1-1/2-in. Strong-Drive SD Connector screws. Corrosion-resistant fasteners must be used.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
