Product Features
Product Description

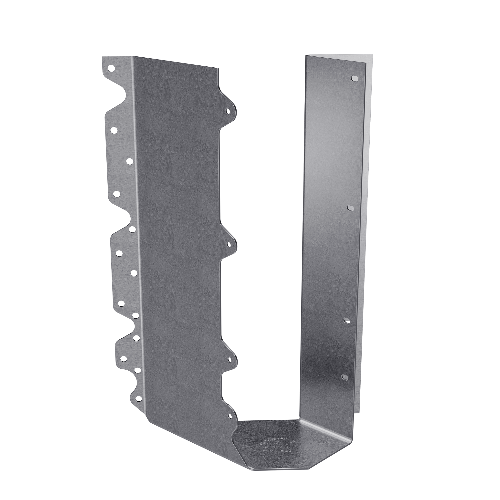

Simpson HSUR414 HSUR Galvanized Joist Hanger for 4x14, Skewed Right is a heavy-duty joist hanger from Simpson Strong-Tie engineered to create a strong 45 deg. skewed-right connection between a joist and header in wood construction. Designed to support large joist members, this hanger provides reliable load transfer underneath the joist while the U-shaped body encapsulates the top flange, eliminating the need for web stiffeners during standard installation.
Key Features
- HSUR = skewed right, providing a 45 deg. connection between a joist and header
- Can accommodate joists skewed 40 to 50 degrees
- Angled nail slots direct nails for proper installation

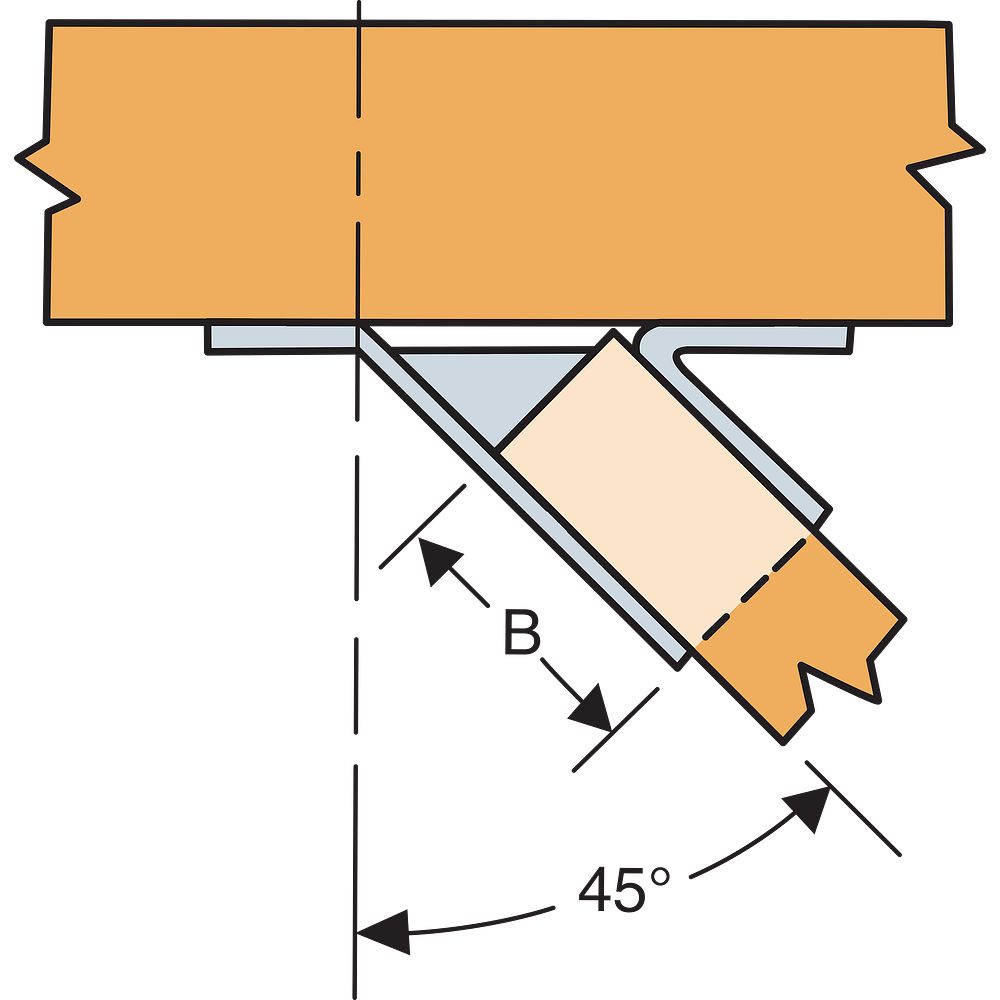

- The joist end may be square cut or bevel cut
- Nominal joist size: 4x14
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- Model Number: HSUR414
- Skew Direction: Right
- Nominal Member Size: 4x14
- Acute Flange Length: 2-3/16 in.
- Obtuse Flange Length: 1 in.
- Gauge: 14
- Width (W): 3 9/16 in.
- Height (H): 12 1/2 in.
- Base (B): 2 7/16 in.
- Coating/Finish: Zinc Galvanized, G90
- Install With: 16d common nails
- Country of Origin: ZZ
Options
Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (HSURC or HSULC).
Contact us for Configurable Options and Special orders.
Frequently Asked Questions
- What angle does the HSUR414 provide for joist-to-header connections?
- The HSUR414 is designed to provide a 45 deg. connection between a joist and header, and can accommodate joists skewed anywhere from 40 to 50 degrees.
- Does the joist need to be cut at a specific angle to fit this hanger?
- No. The joist end may be either square cut or bevel cut, giving installers flexibility during framing.
- What type of fasteners should be used to install the HSUR414?
- The HSUR414 should be installed with 16d common nails. The angled nail slots built into the hanger help direct nails for proper installation.
- What coating does the HSUR414 have, and why does it matter?
- The HSUR414 features a G90 zinc galvanized coating, which provides extra corrosion resistance - an important consideration for applications where the connection may be exposed to moisture or treated lumber.
Related Products
- - Heavy Skewed U-Shaped Hanger with Concealed Flanges
Note: Product dimensions and/or nail holes may differ from picture.
