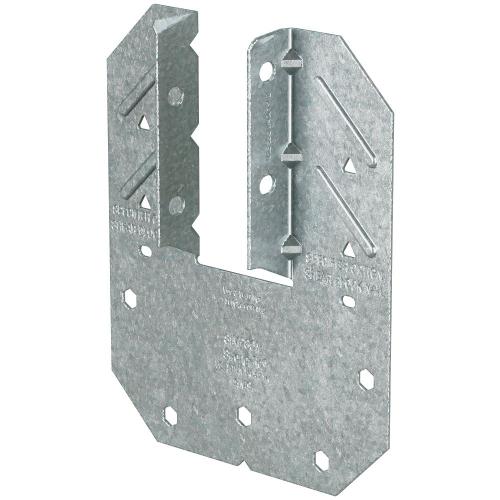

Product Description
The Simpson Strong-Tie HM9KT is a complete 20-pack kit of HM9 18-gauge galvanized hurricane ties designed to resist high winds and seismic forces by positively connecting trusses and rafters to the top of a wall structure. Engineered specifically to retrofit roof truss and rafter assemblies for block construction, the HM9 delivers high uplift and lateral capacity using Simpson Strong-Tie Titen Turbo concrete and masonry screws. Compatible with both solid-sawn and engineered lumber across a wide range of applications, this kit arrives complete with all necessary fasteners - including Strong-Drive SDS Heavy-Duty Connector screws and Titen Turbo screws - so your crew can get to work immediately.
Key Features
- Complete Kit: Includes (20) HM9 connectors packaged with all required screws for a ready-to-install solution.
- Wind & Seismic Resistance: Designed to resist high winds and seismic forces by positively connecting trusses and rafters to the top of the wall structure.
- High Uplift & Lateral Capacity: Provides high uplift and lateral capacity, making it ideal for demanding structural applications.
- Block Construction Retrofit: Specifically designed to retrofit roof truss and rafter assemblies for block construction using Titen Turbo concrete and masonry screws.
- Broad Material Compatibility: Connects both solid-sawn and engineered lumber across a wide range of applications.
- 18-Gauge Steel Construction: Made from heavy-duty 18-gauge steel for reliable structural performance.
- G90 Galvanized Coating: Zinc galvanized finish (G90) provides extra corrosion resistance for long-term durability.
- Fasteners Included: Packaged with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws and 2-1/4 in. Titen Turbo screws.
- Made in the USA: Manufactured in the United States.

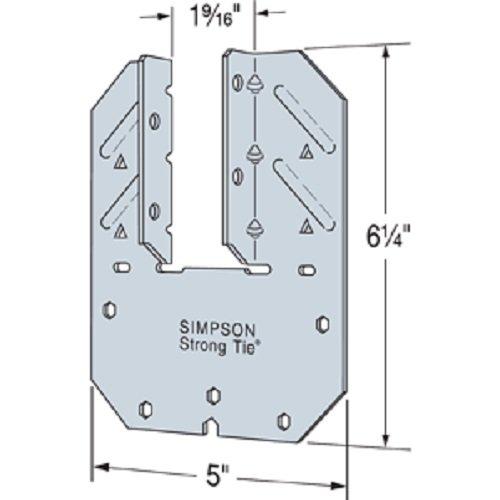

Specifications
- Model Number (MPN): HM9KT
- Connector Model: HM9
- Gauge: 18
- Coating / Finish: Zinc Galvanized, G90
- Package Quantity: 20 connectors per kit
- Country of Origin: United States
- Brand: Simpson Strong-Tie
Approved Applications
- Connecting trusses and rafters to the top of wall structures to resist high winds and seismic forces.
- Retrofit installation of roof truss and rafter assemblies for block construction.
- Applications requiring high uplift and lateral capacity at the roof-to-wall connection.
- Use with both solid-sawn and engineered lumber across a wide range of structural applications.
What's Included
Each HM9KT kit contains everything needed for installation:
- (20) HM9 hurricane tie connectors
- (80) 1/
Frequently Asked Questions
- What is included in the HM9KT kit?
- The HM9KT kit includes (20) HM9 hurricane tie connectors, (80) 1/4 in. x 1-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws, and (100) 1/4 in. x 2-1/4 in. Titen Turbo screws - everything needed for a ready-to-install solution.
- What type of construction is the HM9 hurricane tie designed for?
- The HM9 hurricane tie is specifically designed to retrofit roof truss and rafter assemblies for block construction. It uses Titen Turbo concrete and masonry screws to anchor connections and provides high uplift and lateral capacity for demanding structural applications.
- What fasteners should be used to install the HM9 connectors?
- Install with 1/4 in. x 1-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included) and either 1/4 in. x 2-1/4 in. Titen Turbo screws when fastening to GFCMU or 1/4 in. x 1-3/4 in. Titen Turbo screws when fastening to concrete.
- What material and coating are used on the HM9 hurricane ties?
- The HM9 hurricane ties are made from 18-gauge steel and feature a G90 zinc galvanized coating for extra corrosion resistance, making them suitable for use in demanding outdoor and structural environments.
