Product Description

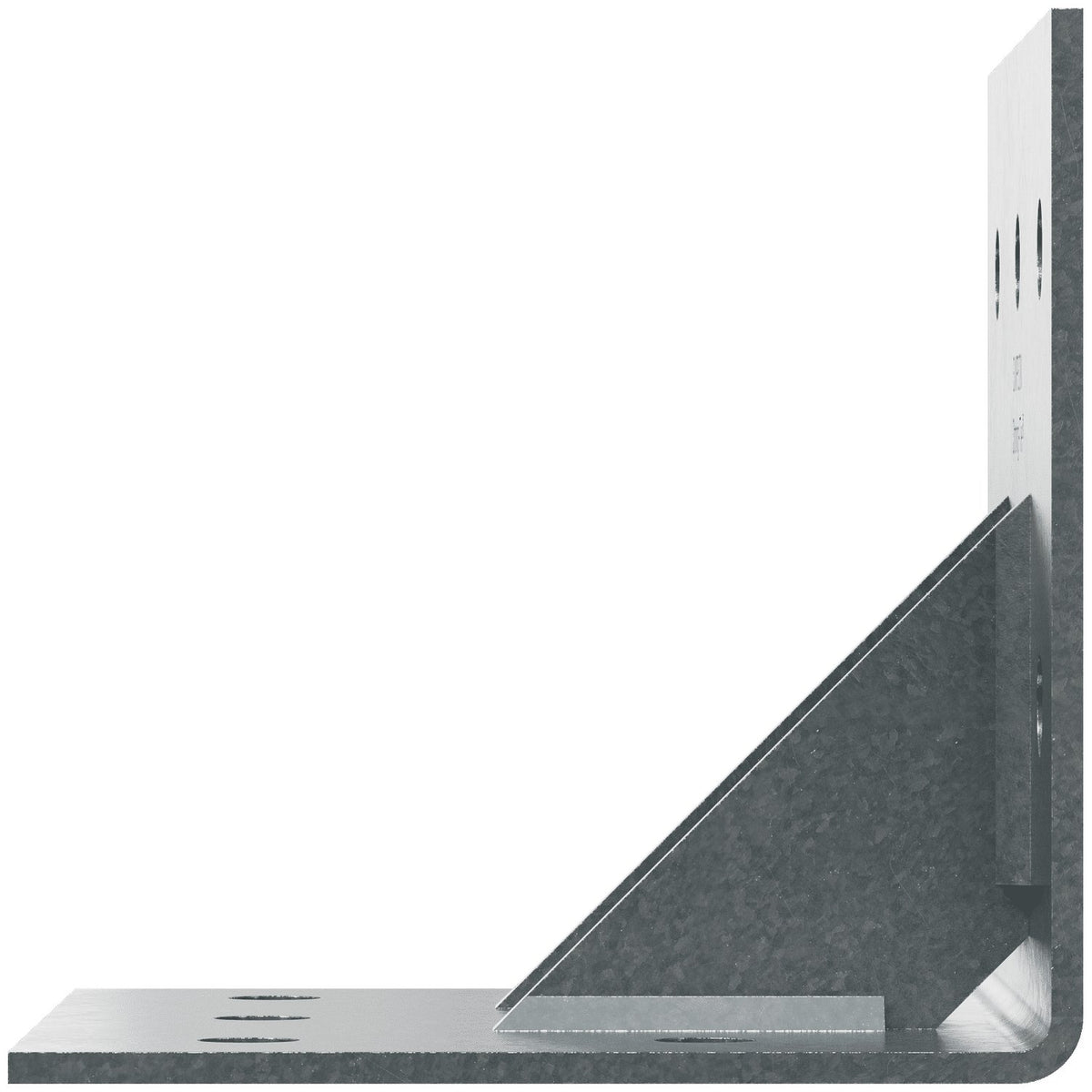

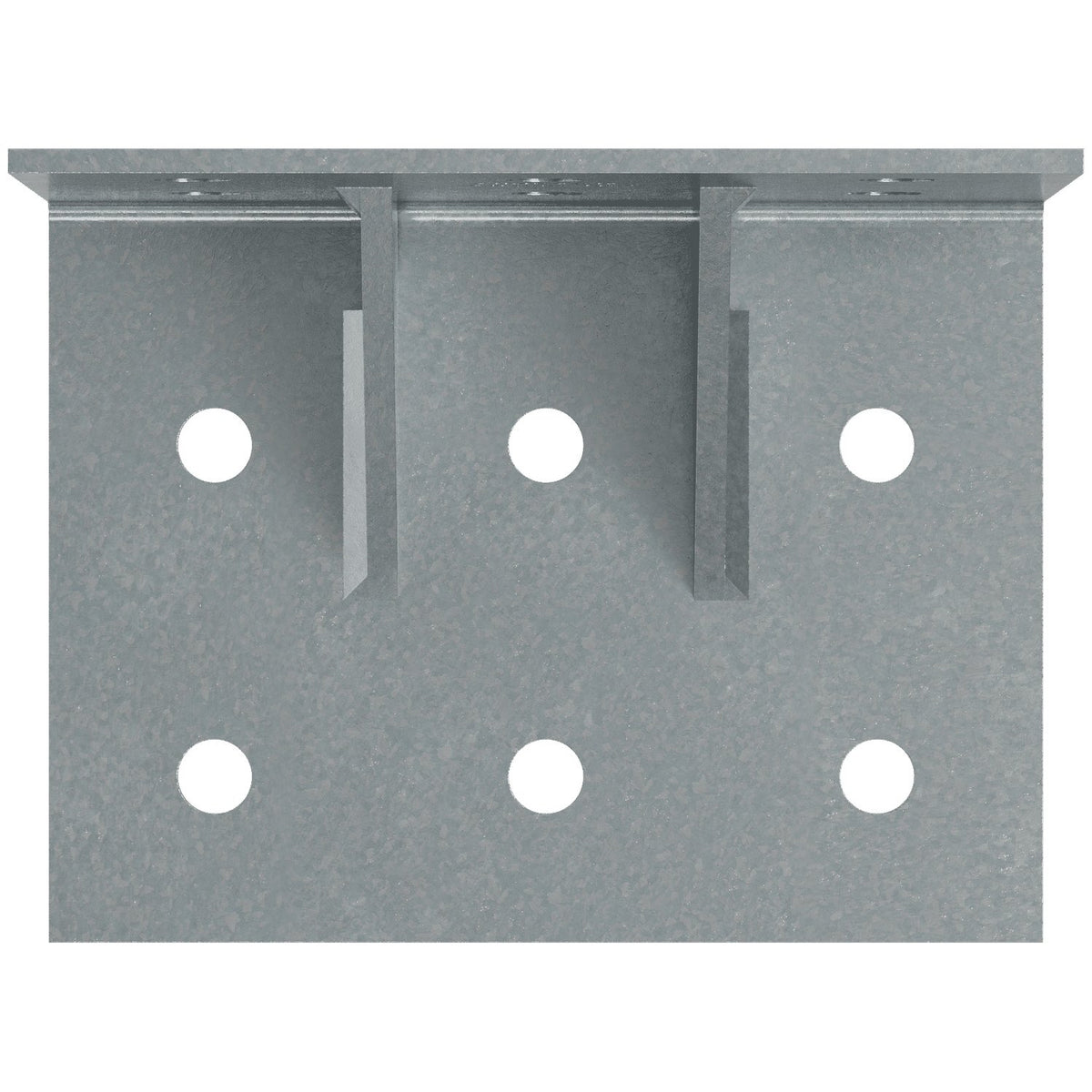

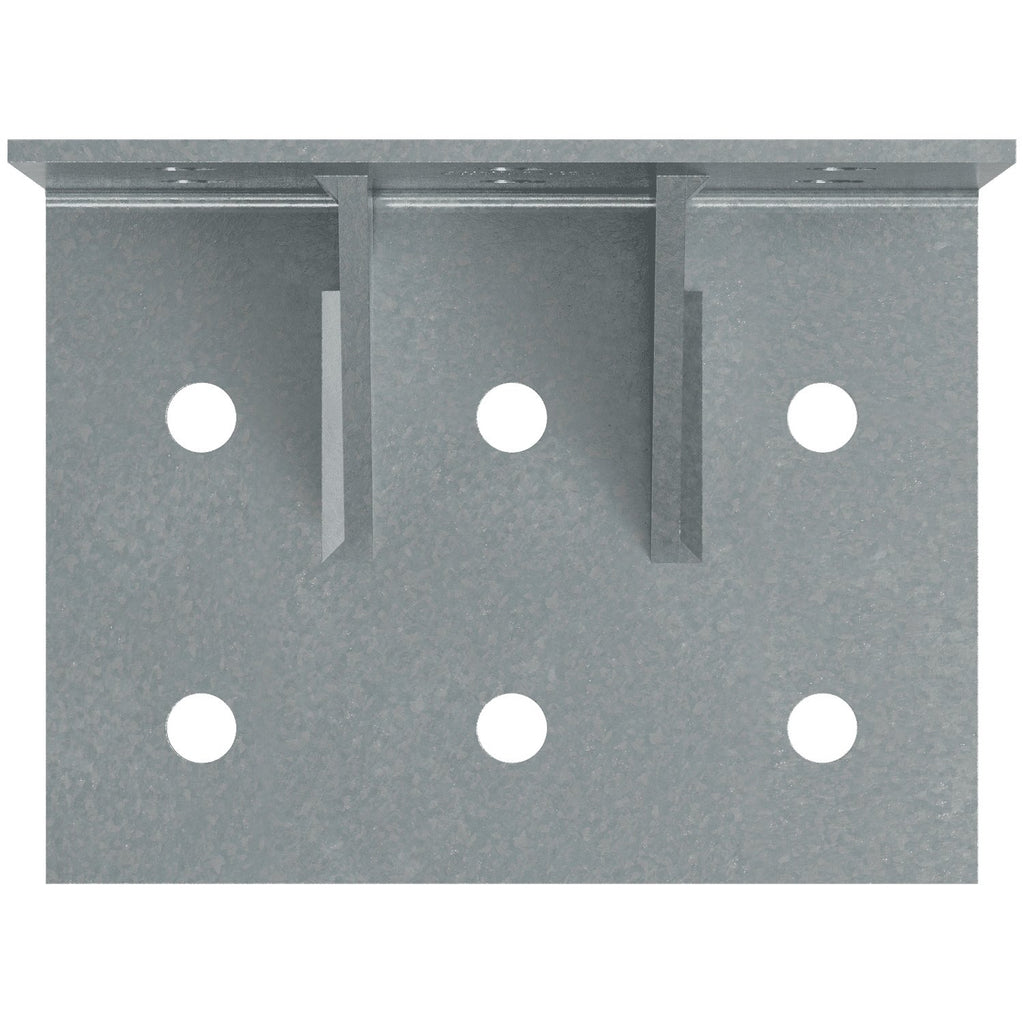

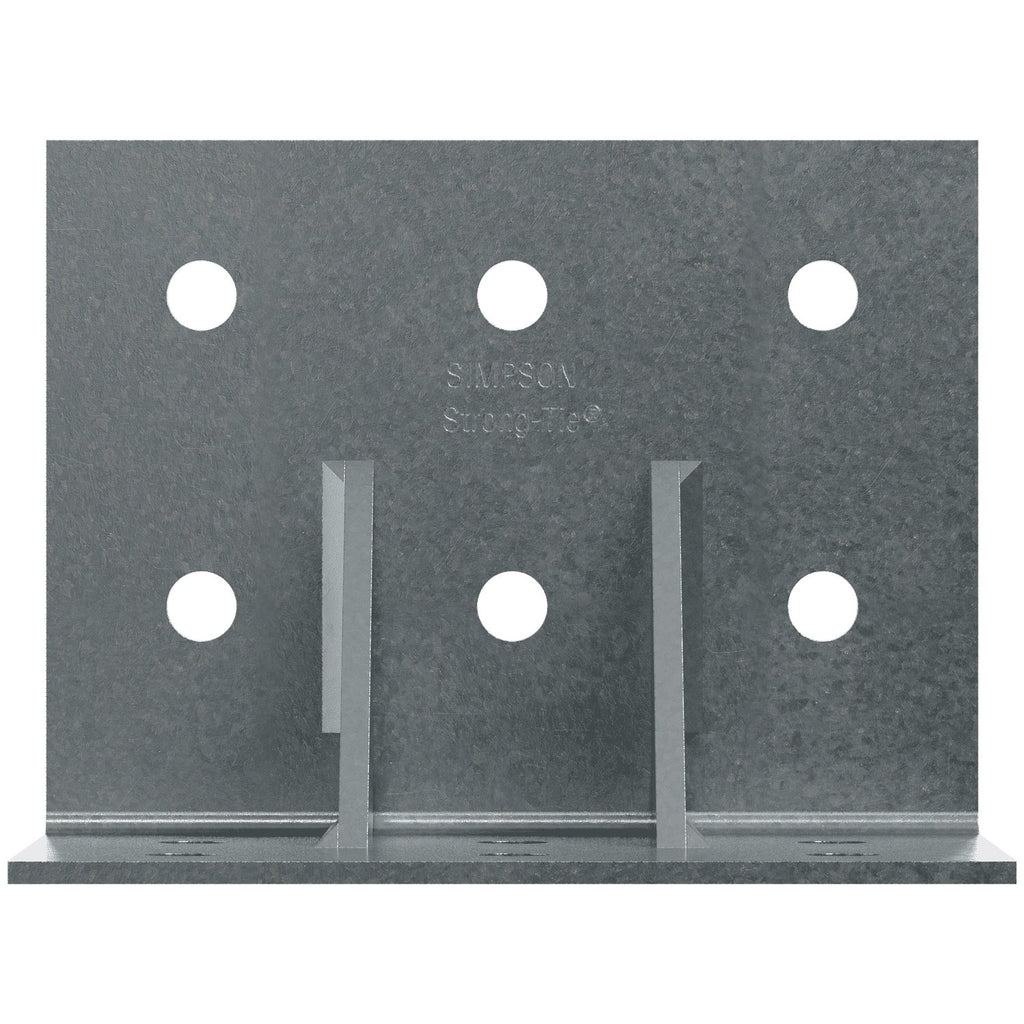

The Simpson Strong-Tie HL57G Heavy L-Shaped Angle with Gusset is a robust, versatile connector engineered to reinforce right-angle wood-to-wood connections in demanding structural applications. Its L-shaped profile combined with an integrated gusset delivers exceptional corner stability, helping resist uplift and lateral forces at critical junctions. Fabricated in the United States from zinc galvanized G90 steel at 7 gauge, this heavy utility connector is built to perform where structural integrity matters most. The multipurpose design promotes standardization and construction economy across a wide range of framing and building applications.
Key Features
- Heavy L-shaped angle with integrated gusset for superior corner stability
- Reinforces wood members in right-angle (90 deg.) connections
- Resists both uplift and lateral forces
- Achieves lateral loads in both directions when installed in pairs
- Promotes standardization and construction economy
- 7-gauge steel construction for heavy-duty performance
- Zinc Galvanized G90 coating for corrosion resistance
- Manufactured in the United States
Specifications
- Model Number: HL57G
- Gauge: 7
- Width-1: 5-3/4 in.
- Width-2: 5-3/4 in.
- Length: 7-1/2 in.
- Coating / Material: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Right-angle wood member connections where two members meet at a 90 deg. angle
- Corner reinforcement in wood framing assemblies
- Applications requiring resistance to uplift forces
- Applications requiring resistance to lateral forces
- Paired installations for bidirectional lateral load resistance
Installation
- Install with (12) 1/2 in. diameter bolts
- Lag screws of equal diameter (minimum 5 in. long) may be substituted for bolts in the beam with no reduction in load
Frequently Asked Questions
- What gauge steel is the HL57G constructed from?
- The HL57G is constructed from 7-gauge steel, providing heavy-duty structural performance in demanding right-angle connection applications.
- What coating does the HL57G feature?
- The HL57G features a Zinc Galvanized G90 coating, which provides a protective layer against corrosion for long-term durability.
- What fasteners are required to install the HL57G?
- Installation requires (12) 1/2 in. diameter bolts. Lag screws of equal diameter, at a minimum length of 5 in., may be substituted for bolts in the beam with no reduction in load.
- Can the HL57G be used to resist lateral loads in both directions?
- Yes. When the HL57G connectors are installed in pairs, the assembly achieves lateral load resistance in both directions, making it suitable for applications with multidirectional force demands.
Note: Product dimensions and/or screw or bolt holes may differ from the picture shown. Please see the item description for specifications.
