Product Description

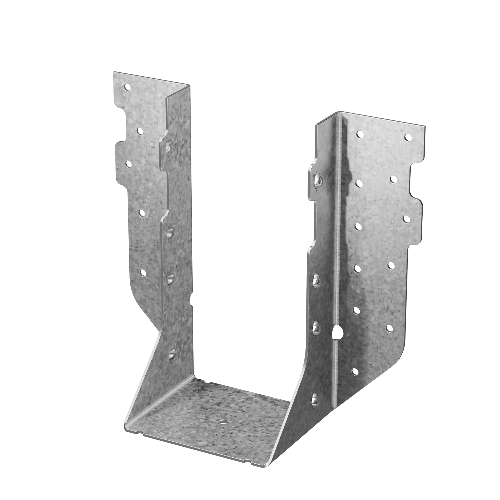

The Simpson HHUS48 Galvanized Face-Mount Joist Hanger for 4x8 is a heavy-capacity structural connector from Simpson Strong-Tie engineered specifically for applications where higher load values are required. This face-mount hanger is built to support 4x8 nominal joist, rafter, and beam members, delivering a secure and reliable connection through an innovative double-shear nailing design. Constructed from 14-gauge steel with a G90 zinc galvanized finish, it is well-suited for demanding framing applications where both strength and corrosion resistance are priorities.
Key Features
- Double-shear nailing design - distributes the load through two points on each joist nail, giving each connection greater strength than a single-shear alternative and improving overall structural performance.
- Compatible with standard nails - allows the use of 16d common nails for all connections, so installers do not need specialty fasteners, which simplifies procurement and speeds up the job.
- Fewer nails required - the double-shear geometry achieves strong load transfer with a reduced nail count, cutting installation time and labor without sacrificing holding power.
- 14-gauge steel construction - provides the heavy-duty rigidity needed for high-load joist, rafter, and beam applications where lighter-gauge hangers would be undersized.
- G90 zinc galvanized coating - delivers an extra level of corrosion resistance, making this hanger a dependable choice in moisture-prone environments where long-term durability matters.
- Tabs must not be bent or removed - maintaining the tabs as designed preserves the hanger's rated structural integrity, ensuring the connection performs as engineered throughout its service life.
Why This Product
- Engineered for high-load demands - the HHUS series is specifically designed for applications where higher load values are needed, making this hanger the right choice when standard-duty face-mount connectors are not sufficient for the job.
- Faster, simpler installation - the double-shear nailing system allows for fewer nails and the use of readily available 16d common nails, reducing time on the framing stage without compromising connection quality.
- Built for lasting performance in tough conditions - the G90 galvanized finish on the 14-gauge steel body provides reliable corrosion resistance, helping this connector hold up in applications exposed to moisture over time.
- Trusted Simpson Strong-Tie engineering - backed by Simpson's reputation for structural connector quality, the HHUS48 is a purpose-built solution for 4x8 joist, rafter, and beam installations where performance and code confidence are essential.
Specifications
- MPN: HHUS48
- Member Size: 4x8
- Gauge: 14
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: 16d common nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What lumber size is the HHUS48 designed for?
- The HHUS48 is designed for use with nominal 4x8 joist, rafter, or beam members, providing a secure face-mount connection for that specific member size.
- What type of nails should be used to install the HHUS48?
- The HHUS48 should be installed with 16d common nails. The double-shear nailing design allows for the use of standard nails for all connections while requiring fewer nails overall, which speeds up installation.
- What does the G90 galvanized coating mean for this hanger?
- The G90 designation refers to the zinc galvanized coating applied to the 14-gauge steel, which provides an extra level of corrosion resistance - making the HHUS48 suitable for environments where moisture exposure is a concern.
- Can the tabs on the HHUS48 be bent or removed to fit a specific application?
- No. The product specifications explicitly state that the tabs on the HHUS48 must not be bent or removed, as doing so could compromise the structural integrity and load performance of the hanger.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
