Product Description

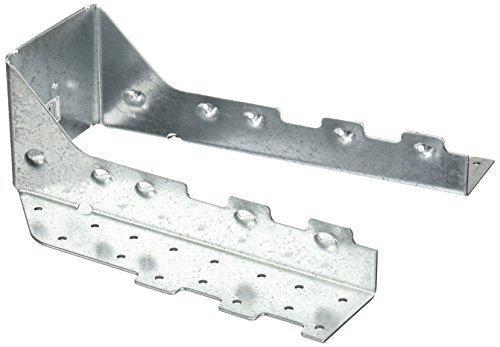

The Simpson HHUS410 HHUS Galvanized Face-Mount Joist Hanger is built for structural connections where higher loads demand a dependable, heavy-capacity solution. Engineered for nominal 4x10 joist members, this hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength - allowing for fewer nails, faster installation, and the use of all common nails for the same connection. Made from 14-gauge steel with a G90 zinc galvanized finish, the HHUS410 delivers the load capacity and corrosion resistance required for demanding framing applications.
Key Features
- Face-mount design installs after the beam is secured in place - lets you complete connections at any stage of framing without disrupting work already done.
- Double-shear nailing distributes the load through two points on each joist nail - delivers greater strength while reducing the total number of nails needed and speeding up installation.
- Value-engineered to carry high loads at an economical price - gives you heavy-capacity performance without paying a premium for more hardware than the job requires.
- Tested, load rated, and code compliant - meets the requirements for demanding structural applications so you can specify it with confidence on inspected projects.
- Made from 14-gauge steel - provides the structural rigidity needed to handle the higher load demands of larger joist members.
- Zinc galvanized finish (G90) - adds a layer of corrosion resistance that helps the hanger hold up in moisture-prone environments over the long term.
Why This Product
- Heavy-capacity engineering at a practical price point - the HHUS410 is value-engineered specifically to handle high loads, so contractors and builders get serious structural performance without overbuying on hardware.
- Double-shear nailing means a faster, simpler installation - by spreading the load across two shear points per joist nail, the design reduces the nail count required, cutting installation time on large framing jobs.
- Flexibility on the jobsite - because the hanger can be installed after the beam is already in place, it accommodates real-world sequencing and avoids costly rework when conditions change mid-project.
- Built for code-required structural applications - HHUS-series hangers are tested and load rated, making the HHUS410 a reliable choice when inspectors and project specs call for verified, compliant joist connections.
Specifications
- Model Number: HHUS410
- Member Size: 4x10
- Gauge: 14
- Width (W): 3 5/8 in.
- Height (H): 9 in.
- B (in.): 3
- Coating/Finish: Zinc Galvanized, G90
- Install With: 16d common nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What size joist is the HHUS410 designed to support?
The HHUS410 is designed for a nominal 4x10 joist member size.
What type of nails should be used to install the HHUS410?
The HHUS410 should be installed with 16d common nails.
Can the HHUS410 be installed after the beam is already in place?
Yes, the HHUS410 is designed so that it can be installed after the beam is secured in place, making it a convenient face-mount solution for a variety of jobsite conditions.
Is the HHUS410 code compliant for structural applications?
Yes, HHUS-series hangers are tested, load rated, and code compliant, making them suitable for demanding structural applications where higher loads are required.
