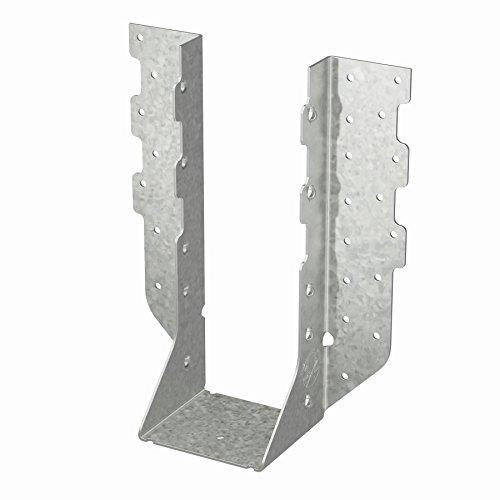

The Simpson Double 2 x 10 Face-Mount Joist Hanger HHUS210-2 is a heavy-capacity connector engineered to handle the demands of high-load framing applications where a standard single-member hanger simply is not enough. Built by Simpson for doubled 2x10 lumber assemblies, this face-mount hanger uses a double-shear nailing system that distributes force through two points on each joist nail, delivering a stronger, more reliable connection with fewer fasteners and faster installation. Its 14-gauge construction and Zinc Galvanized G90 coating make it a dependable choice for structural framing projects that require both strength and long-term durability.

Key Features

• Heavy-capacity, 14-gauge construction - provides the structural integrity needed for high-load framing connections where lighter-gauge hangers would be inadequate.
• Double-shear nailing system - distributes load through two points on each joist nail rather than one, increasing connection strength without requiring extra fasteners.
• Compatible with all common nails - eliminates the need for specialty fasteners, keeping your hardware supply simple and your installation moving efficiently.
• Fewer nails required per connection - reduces installation time on the job without sacrificing the load-carrying performance the application demands.
• Zinc Galvanized G90 coating - provides a protective zinc layer that resists rust and corrosion, helping the hanger hold up in protected and semi-exposed framing environments.
• Sized specifically for double 2x10 lumber members - ensures a precise, secure fit that properly cradles a doubled joist assembly for confident, code-consistent framing.

Why This Product

• Engineered for demanding structural loads - the double-shear nailing design and 14-gauge build give this hanger the capacity to handle connections that would exceed the limits of standard joist hangers, making it the right choice when framing cannot afford to be undersized.
• Faster installation without compromise - because the double-shear system achieves higher load ratings with fewer nails and accepts common nails straight from your bag, crews can move through a project more efficiently without cutting corners on connection quality.
• Built for a precise fit on doubled 2x10 framing - rather than adapting a general-purpose connector, you get a hanger dimensioned specifically for a double 2x10 assembly, reducing guesswork and helping ensure a clean, secure installation every time.
• American-made with corrosion-resistant finish - backed by Simpson quality and finished with a G90 galvanized coating, this hanger is built to perform and resist degradation in the framing environments where doubled-member connections are most commonly required.

Specifications

• Model Number: HHUS210-2
• Gauge (Ga.): 14
• Width (W): 3 5/16 in.
• Height (H): 9 3/16 in.
• Seat Width (B): 3 in.
• Coating/Material: Zinc Galvanized, G90
• Country of Origin: United States

Options

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What makes the HHUS210-2 suitable for high-load applications?

The HHUS210-2 uses a double-shear nailing system that distributes the load through two points on each joist nail rather than one. This engineering approach significantly increases the connection's load-carrying capacity compared to standard single-shear hangers, making it well suited for demanding structural applications.

What size lumber does the HHUS210-2 support?

This hanger is designed specifically for double 2x10 lumber members. With a seat width (B) of 3 in., a width (W) of 3 5/16 in., and a height (H) of 9 3/16 in., it is sized to properly cradle and support a doubled 2x10 joist assembly.

What type of nails are required for installation?

The HHUS210-2 is compatible with all common nails, so no specialty fasteners are needed. The double-shear design also means fewer nails are required per connection compared to traditional hangers, speeding up installation without compromising strength.

What corrosion protection does the HHUS210-2 provide?

This hanger features a Zinc Galvanized G90 coating, which provides a protective zinc layer that resists rust and corrosion in protected and semi-exposed framing environments.

Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
