Product Features
Product Description

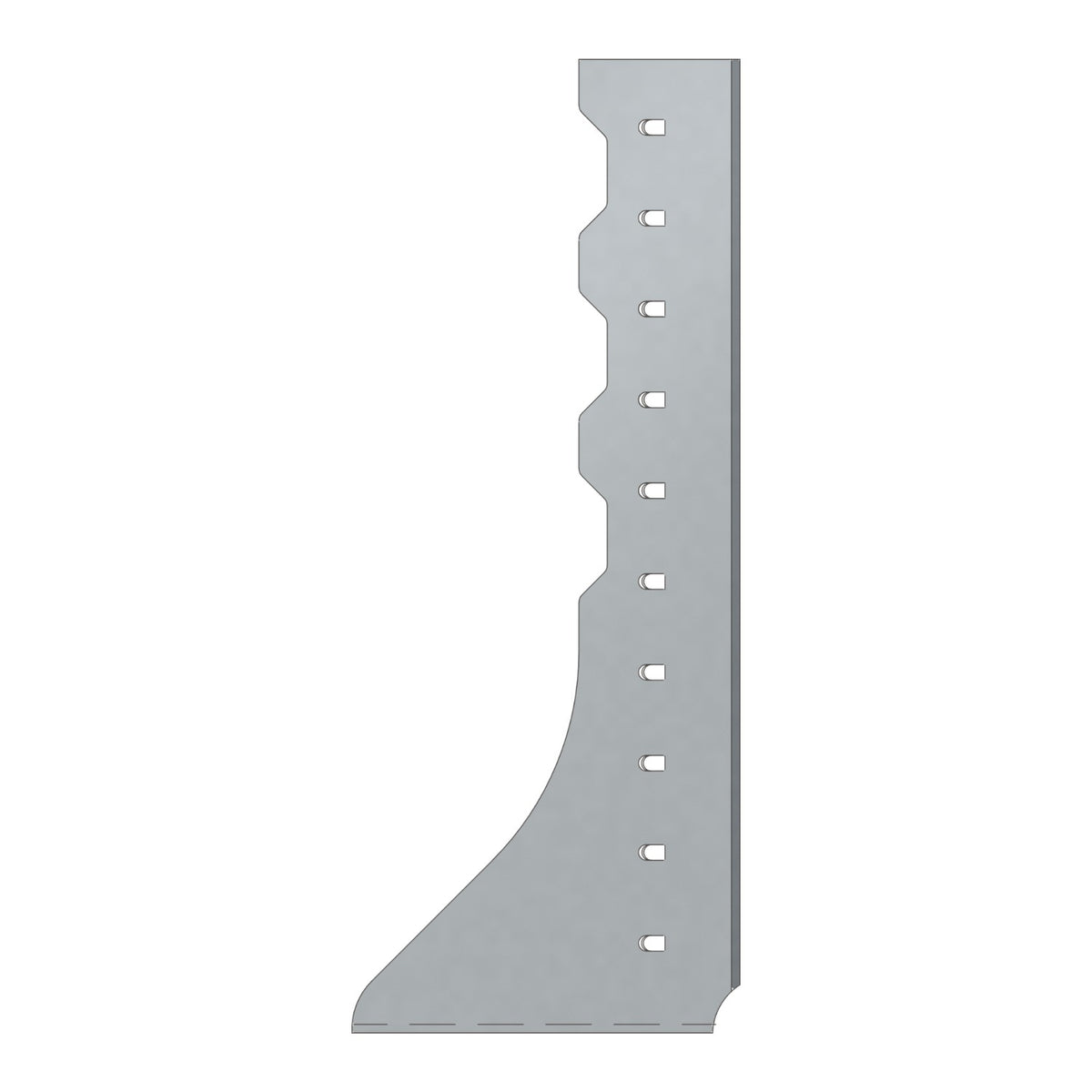

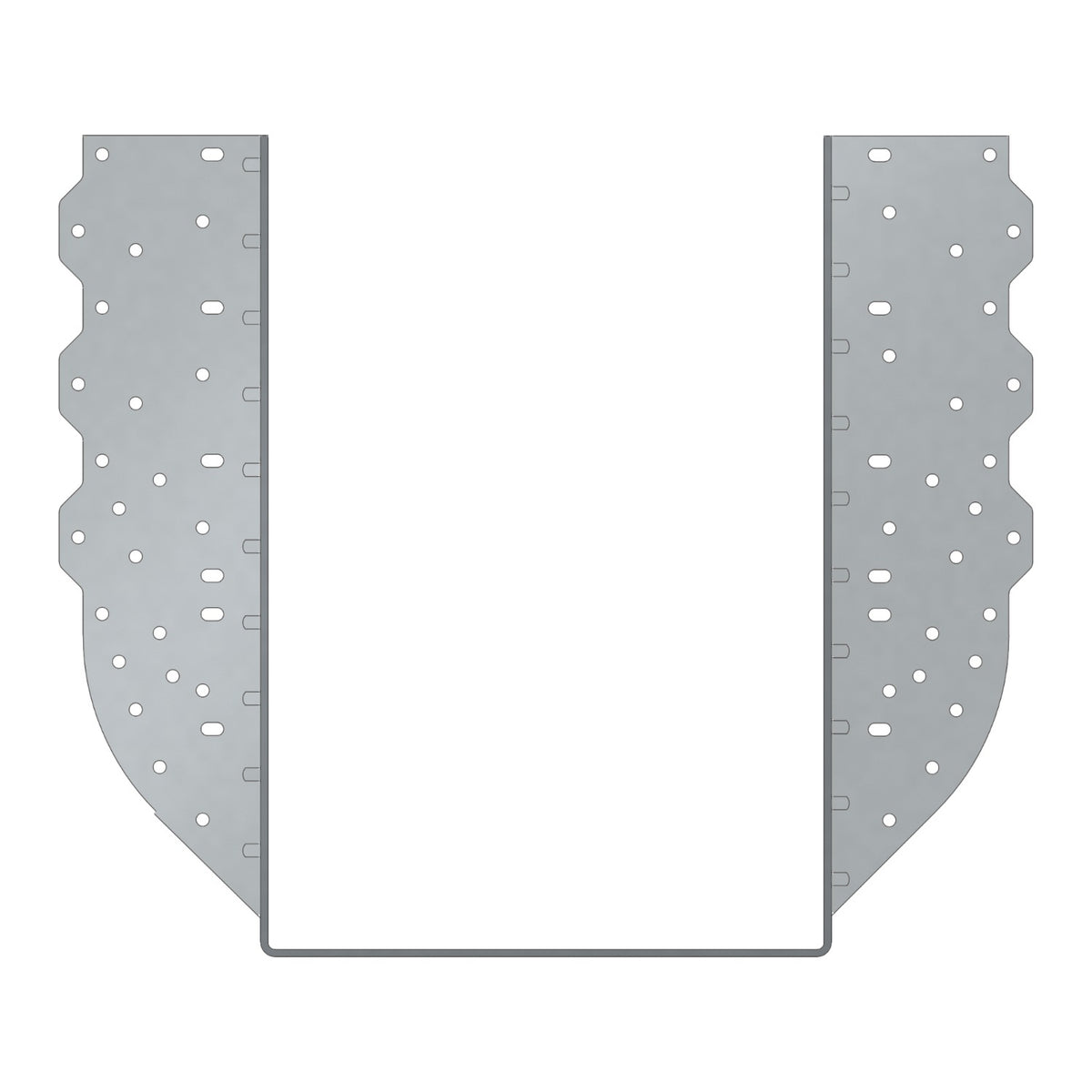

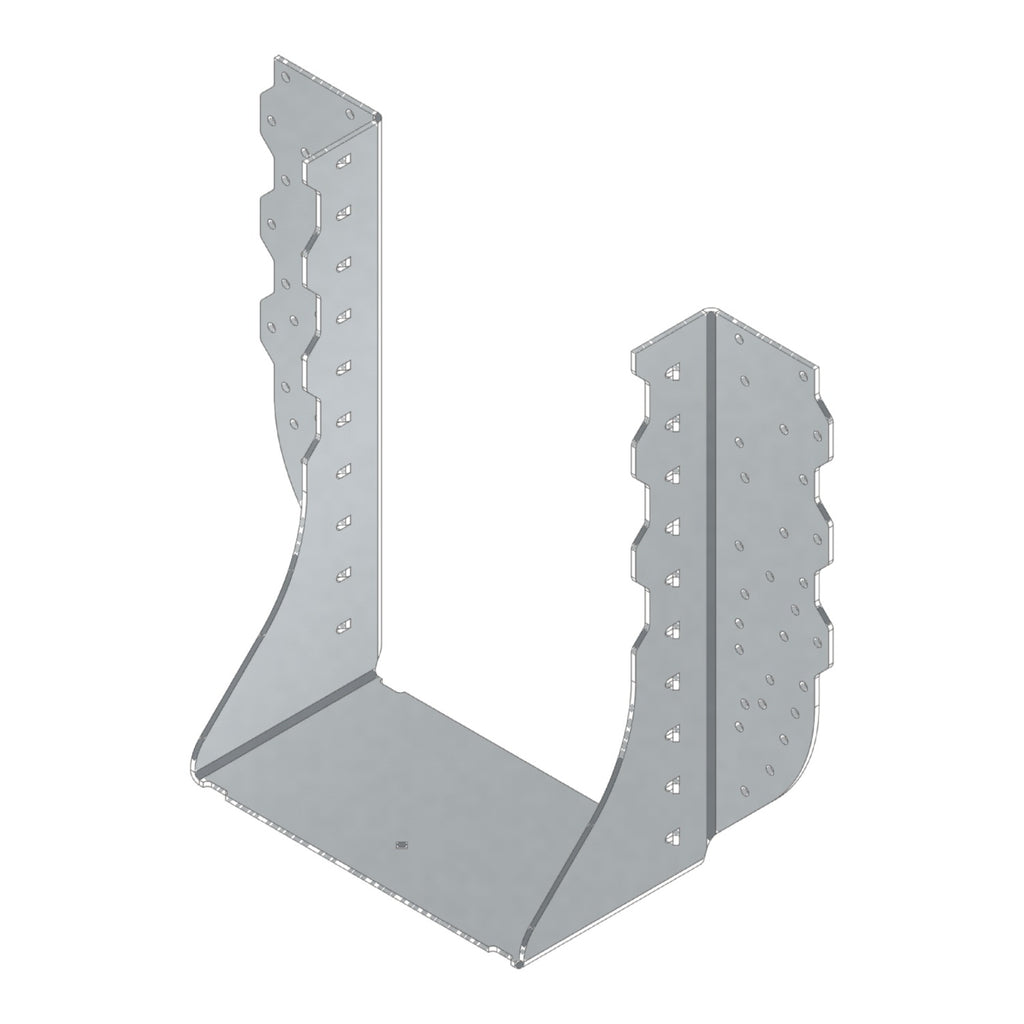

Simpson HGUS7.25/12 HGUS Galvanized Face-Mount Joist Hanger for 7 in. x 11-7/8 in. Engineered Wood is a heavy-capacity face-mount hanger from Simpson Strong-Tie engineered for applications where higher load values are required. Designed to provide strong, reliable support underneath the joist, rafter, or beam, this hanger delivers exceptional structural performance through its double-shear nailing design while accommodating 7 in. engineered wood members up to 11-7/8 in. in depth.
Key Features
- Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
- Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
- Do not bend or remove tabs
- Joist size: 7 in. x 11-1/4 in. to 11-7/8 in.
- Seat width: 7-1/4 in.
- Hanger height: 10-5/8 in.
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: HGUS7.25/12
- Member Size: 7 in. x 11-1/4 in. to 11-7/8 in.
- Seat Width: 7-1/4 in.
- Hanger Height: 10-5/8 in.
- Gauge: 12
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: 16d common nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What type of nails should be used to install the HGUS7.25/12?
- The HGUS7.25/12 should be installed with 16d common nails for all connections, allowing the use of standard nails throughout the installation.
- What makes the double-shear nailing design beneficial?
- Double-shear nailing distributes the load through two points on each joist nail, which provides greater strength compared to single-shear nailing. This design also allows for the use of fewer nails and faster installation without sacrificing structural integrity.
- What joist or member sizes is the HGUS7.25/12 compatible with?
- This hanger is designed for members measuring 7 in. x 11-1/4 in. to 11-7/8 in., making it well suited for engineered wood applications requiring high load capacity within that size range.
- Is the HGUS7.25/12 suitable for use in corrosive environments?
- The HGUS7.25/12 is manufactured from 12-gauge steel with a G90 zinc galvanized coating, which provides extra corrosion resistance and makes it appropriate for use in environments where moisture exposure is a concern.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
