Product Features
Product Description

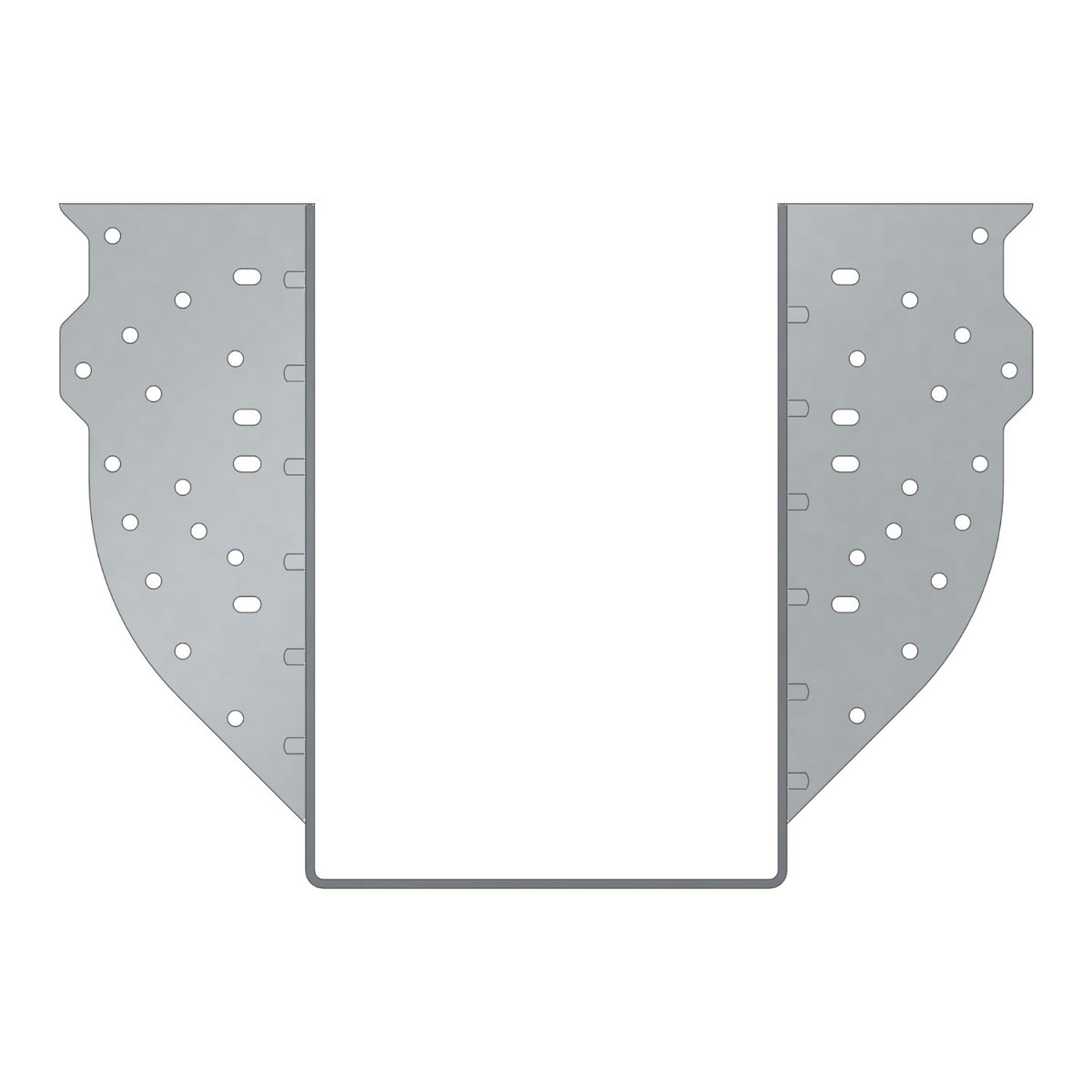

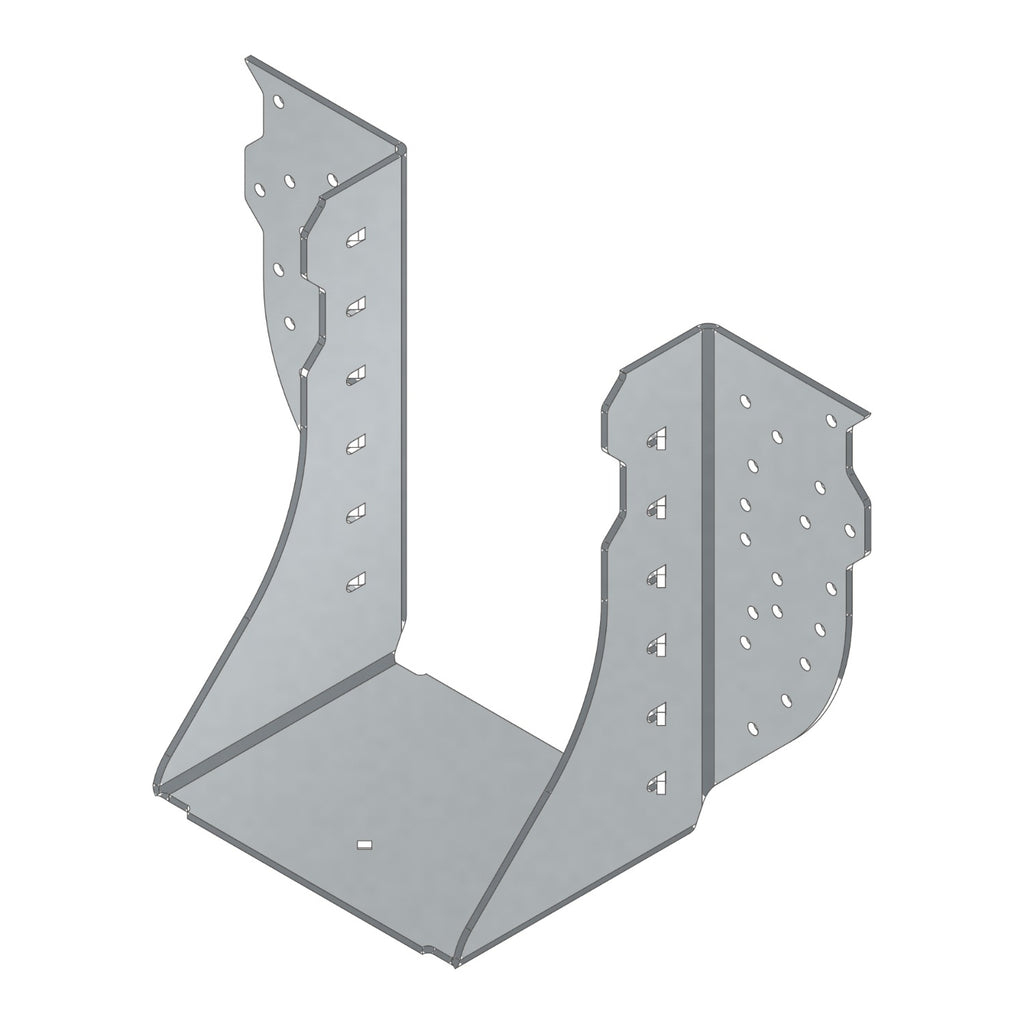

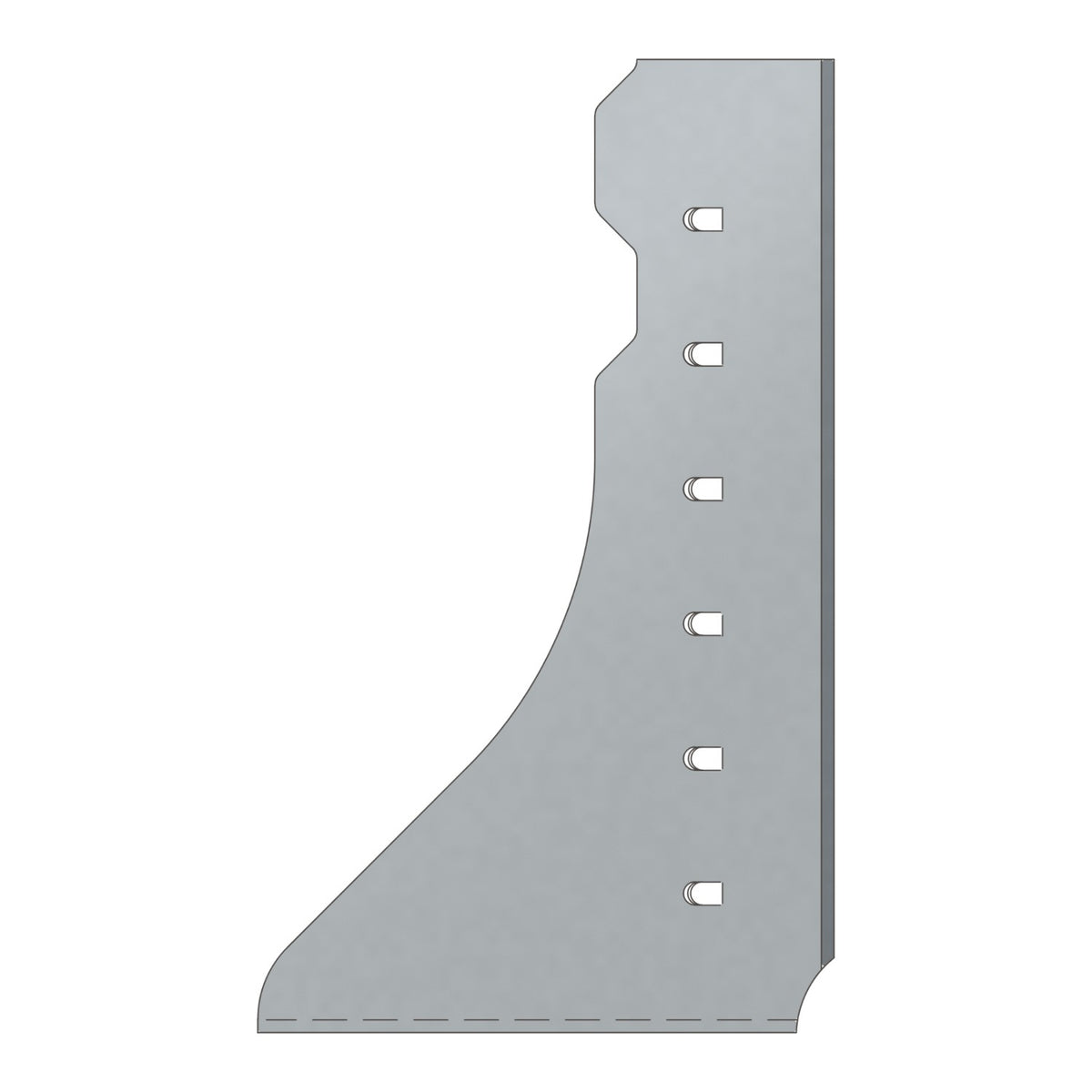

The Simpson HGUS28-3 HGUS 7-1/4 in. Galvanized Face-Mount Joist Hanger for Triple 2x Truss is an extra-heavy-capacity face-mount hanger engineered by Simpson Strong-Tie for applications where higher load values are needed. Designed to provide robust support underneath the joist, rafter, or beam, this hanger delivers a strong, reliable connection for triple 2x8 framing members. Value-engineered to carry high loads, the HGUS28-3 is a trusted solution for demanding structural applications.
Key Features
- Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
- Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
- Do not bend or remove tabs
- Nominal joist size: Triple 2x8
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: HGUS28-3
- Member Size: Triple 2x8
- Gauge: 12
- Coating/Finish: Zinc Galvanized, G90
- Install With: 16d common nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What size framing member is the HGUS28-3 designed to support?
- The HGUS28-3 is designed for a nominal joist size of Triple 2x8, making it suitable for applications requiring a face-mount hanger that accommodates three 2x8 framing members side by side.
- What type of nails should be used to install the HGUS28-3?
- The HGUS28-3 should be installed with 16d common nails. The double-shear nailing design allows for the use of fewer nails while still achieving strong, reliable connections.
- What is the corrosion resistance of the HGUS28-3?
- The HGUS28-3 features a G90 zinc galvanized coating, which provides extra corrosion resistance and helps extend the service life of the hanger in demanding environments.
- Are there any important handling precautions to keep in mind during installation?
- Yes - do not bend or remove the tabs on the HGUS28-3. Maintaining the hanger's original form is essential to ensuring it performs as engineered and delivers the rated load capacity.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
