Product Features
Product Description

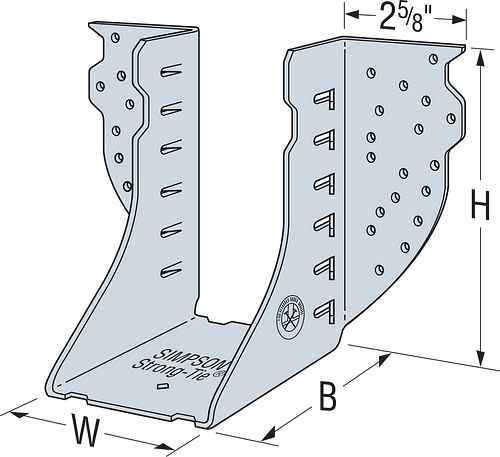

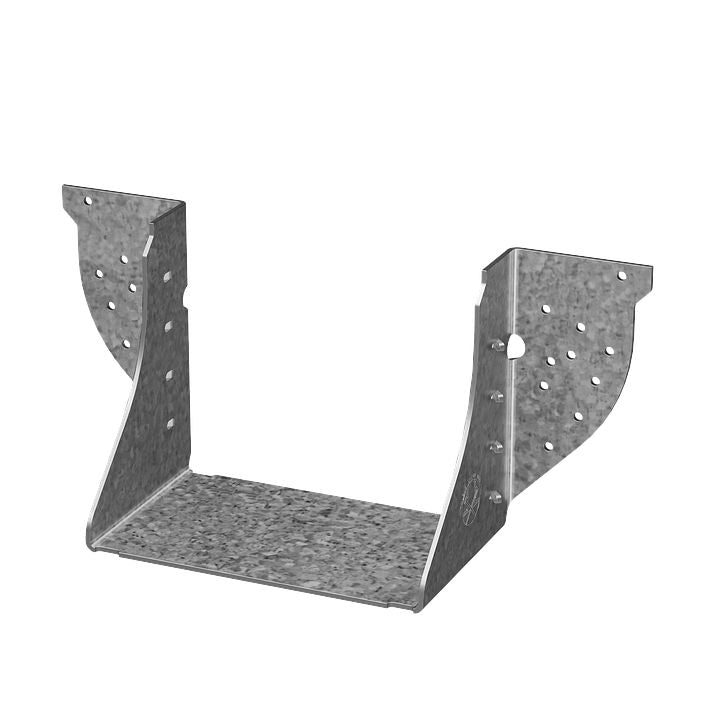

The Simpson HGUS26-4 HGUS 5-7/16 in. Galvanized Face-Mount Joist Hanger for Quad 2x Truss by Simpson Strong-Tie is an extra-heavy-capacity face-mount hanger engineered for applications where higher load values are needed. Designed to provide support underneath the joist, rafter, or beam, this hanger delivers a strong, reliable connection for quad 2x6 girder assemblies. Its double-shear nailing design distributes load through two points on each joist nail, delivering exceptional strength at an economical value.
Key Features
- Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
- Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
- Do not bend or remove tabs
- Nominal joist size: Quad 2x6
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: HGUS26-4
- Member Size: Quad 2x6
- Gauge: 12
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: 16d common nails
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What size member is the HGUS26-4 designed to support?
- The HGUS26-4 is designed for a nominal joist size of Quad 2x6, making it suitable for applications requiring a quadruple 2x6 girder or truss assembly.
- What type of nails should be used to install the HGUS26-4?
- The HGUS26-4 should be installed with 16d common nails. Its double-shear nailing design also allows for the use of fewer nails and faster installation compared to other hanger types.
- What is the benefit of the double-shear nailing design on the HGUS26-4?
- Double-shear nailing distributes the load through two points on each joist nail, which provides greater strength and allows for fewer nails to be used while still achieving a strong connection.
- What corrosion protection does the HGUS26-4 offer?
- The HGUS26-4 features a Zinc Galvanized G90 coating, which provides extra corrosion resistance and helps extend the service life of the hanger in demanding environments.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
