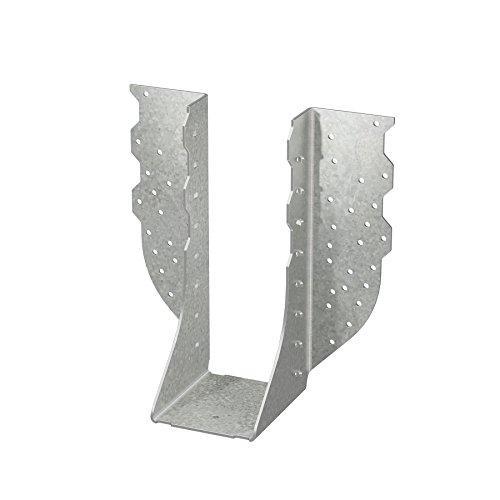

The Simpson HGUS 9-3/16 in. Galvanized Face-Mount Joist Hanger for Double 2x10 is a high-load-capacity face-mount hanger engineered by Simpson for structural framing applications where greater load values are needed. Built to provide reliable support underneath the joist, rafter, or beam, this hanger is designed for use with nominal double 2x10 lumber and 3-1/8 in. glulam members. Its 12-gauge steel construction and G90 galvanized finish make it a dependable choice for heavy-duty residential and commercial framing connections.

Key Features

• Double-shear nailing design - distributes the load through two points on each joist nail, delivering greater connection strength for demanding structural applications
• Requires fewer nails with standard 16d common nails - speeds up installation and eliminates the need for specialty fasteners, saving time and simplifying your workflow
• Tabs must not be bent or removed - preserving the factory geometry is essential to maintaining the hanger's rated load-carrying performance and structural integrity
• Compatible with nominal double 2x10 and 3-1/8 in. glulam members - gives builders flexibility to use this hanger across a range of heavy framing and beam-support scenarios
• Made from 12-gauge steel with a G90 zinc galvanized finish - provides extra corrosion resistance for long-term durability in structural framing environments

Why This Product

• Engineered for higher load demands - the HGUS series is specifically designed for applications where standard hangers fall short, making this a reliable solution when structural loads exceed typical framing requirements
• Double-shear nailing means a stronger joint with less hardware - by distributing force across two shear planes per nail, this hanger achieves greater load transfer while allowing the use of fewer, standard nails - a practical advantage on any framing job
• Corrosion-resistant G90 galvanized coating - the zinc galvanized finish helps protect the steel over the long term, keeping the connection performing as intended even in moisture-prone environments
• Made in the United States by a trusted structural connector brand - Simpson products are widely specified by engineers and contractors for code-compliant framing, giving you confidence in both quality and application suitability

Specifications

• MPN: HGUS210-2
• Brand: Simpson Strong-Tie
• Member Size: Double 2x10, 3-1/8 in. glulam

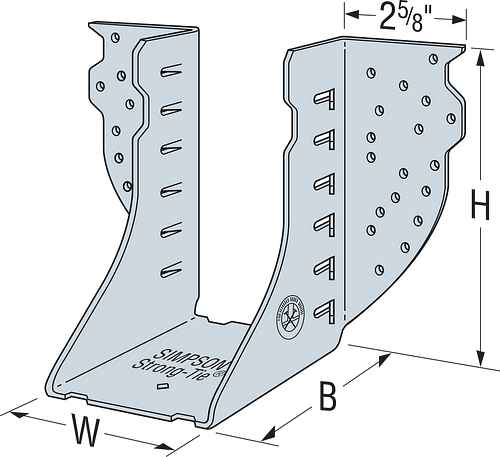

• Height (H): 9-3/16 in.
• Gauge: 12
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Install With: 16d common nails
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What size joist or beam is the HGUS210-2 designed to support?

The HGUS210-2 is designed for a nominal double 2x10 member or a 3-1/8 in. glulam beam, making it suitable for heavy structural framing applications.

What type of nails should be used to install the HGUS210-2?

This hanger should be installed with 16d common nails. The double-shear nailing design allows for fewer nails while still achieving greater load distribution and connection strength.

What is the gauge and coating of the HGUS210-2?

The HGUS210-2 is made from 12-gauge steel with a Zinc Galvanized G90 coating, which provides extra corrosion resistance for long-term durability in structural applications.

Can the tabs on the HGUS210-2 be bent or removed for easier installation?

No. The tabs on the HGUS210-2 must not be bent or removed. Altering the tabs could compromise the structural integrity and load-carrying performance of the hanger.

Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
