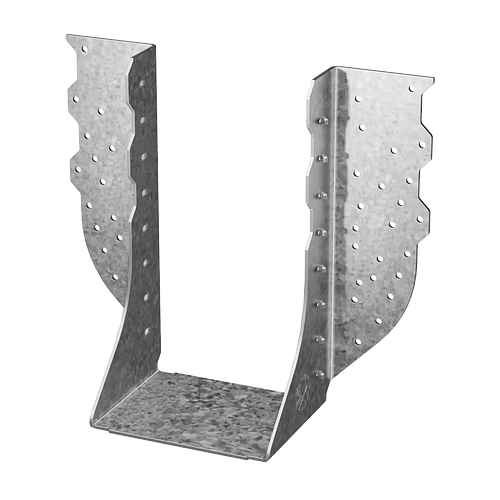

Product Description
The Simpson Face-Mount Hanger is an extra-heavy-capacity girder hanger engineered for structural applications that demand reliable, high-load girder support. Designed with double-shear nailing technology and a value-engineered construction approach, this hanger delivers the connection strength required for demanding framing installations while keeping performance and economy in balance.
Key Features
- Extra-heavy-capacity construction - engineered specifically for girder support applications, giving builders confidence in high-load structural connections
- Double-shear nailing design - distributes load through two points on each joist nail rather than one, increasing overall connection strength for heavy framing demands
- Value-engineered design - carries high loads at an economical price, helping contractors achieve structural performance without overspending
- 12-gauge steel construction - provides robust structural performance suited to demanding face-mount hanger applications
- Zinc Galvanized G90 coating - offers a layer of corrosion resistance to help protect the hanger in typical construction environments
- Made in the United States - reflects Simpson's commitment to domestic manufacturing quality and consistency
Why This Product
- Built for girder-level loads - the extra-heavy-capacity rating and double-shear nailing make this face-mount hanger a practical choice for structural framing connections where standard hangers fall short
- Strength without the premium price - the value-engineered design means contractors and builders get high load-carrying performance in a girder hanger without paying for unnecessary overengineering
- Corrosion-resistant finish for lasting performance - the G90 galvanized coating helps protect the steel in common job-site and construction environments, supporting long-term connection integrity
- Trusted Simpson quality - designed and produced by Simpson, a brand recognized for structural connector reliability, this hanger is a dependable specification for face-mount girder applications

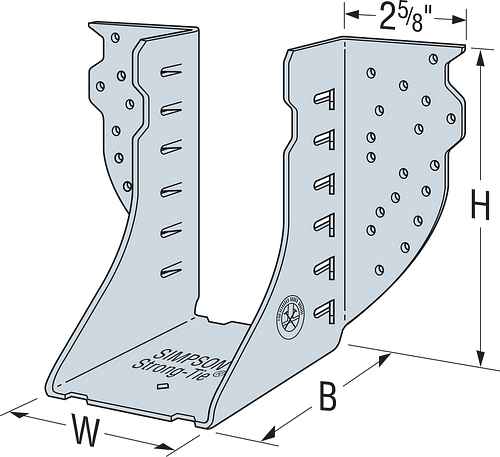

Specifications
- Model No.: HGUS2.75/14
- Gauge (Ga.): 12
- W (in.): 2-3/4
- H (in.): 12-7/8
- B (in.): 4
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Options
Contact us for Configurable Options and Special orders
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What makes the HGUS2.75/14 suitable for girder applications?
The HGUS2.75/14 is specifically engineered as an extra-heavy-capacity hanger for applications requiring girder support. Its double-shear nailing design distributes the load through two points on each joist nail, providing the enhanced strength needed for heavy girder loads.
What is double-shear nailing and why does it matter?
Double-shear nailing is a design feature of the HGUS hanger that distributes the load through two points on each joist nail rather than one. This dual-point load distribution increases overall connection strength, making the hanger well-suited for high-load structural applications.
What coating does the HGUS2.75/14 have, and what protection does it provide?
The HGUS2.75/14 features a Zinc Galvanized G90 coating. This galvanized finish provides a layer of corrosion resistance to help protect the steel hanger in typical construction environments.
What are the dimensions of the HGUS2.75/14?
The HGUS2.75/14 has a width (W) of 2-3/4 inches, a height (H) of 12-7/8 inches, and a B dimension of 4 inches. It is constructed from 12-gauge steel. Note that product dimensions and/or nail holes may differ from picture.
