Product Description

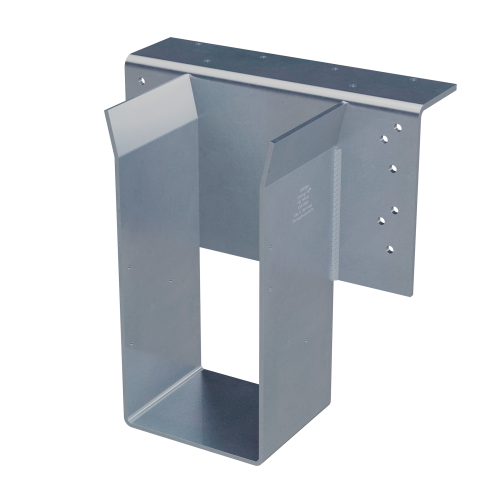

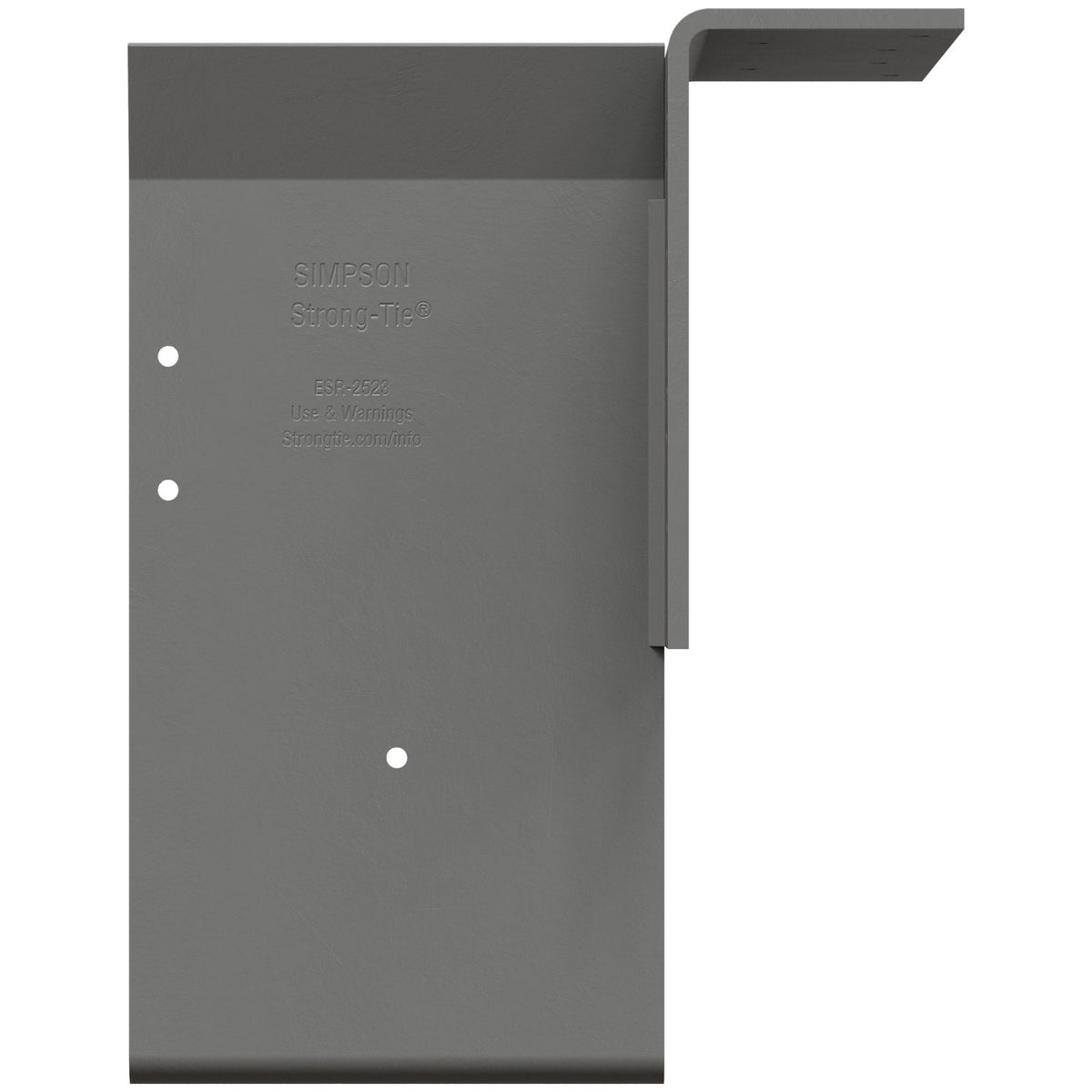

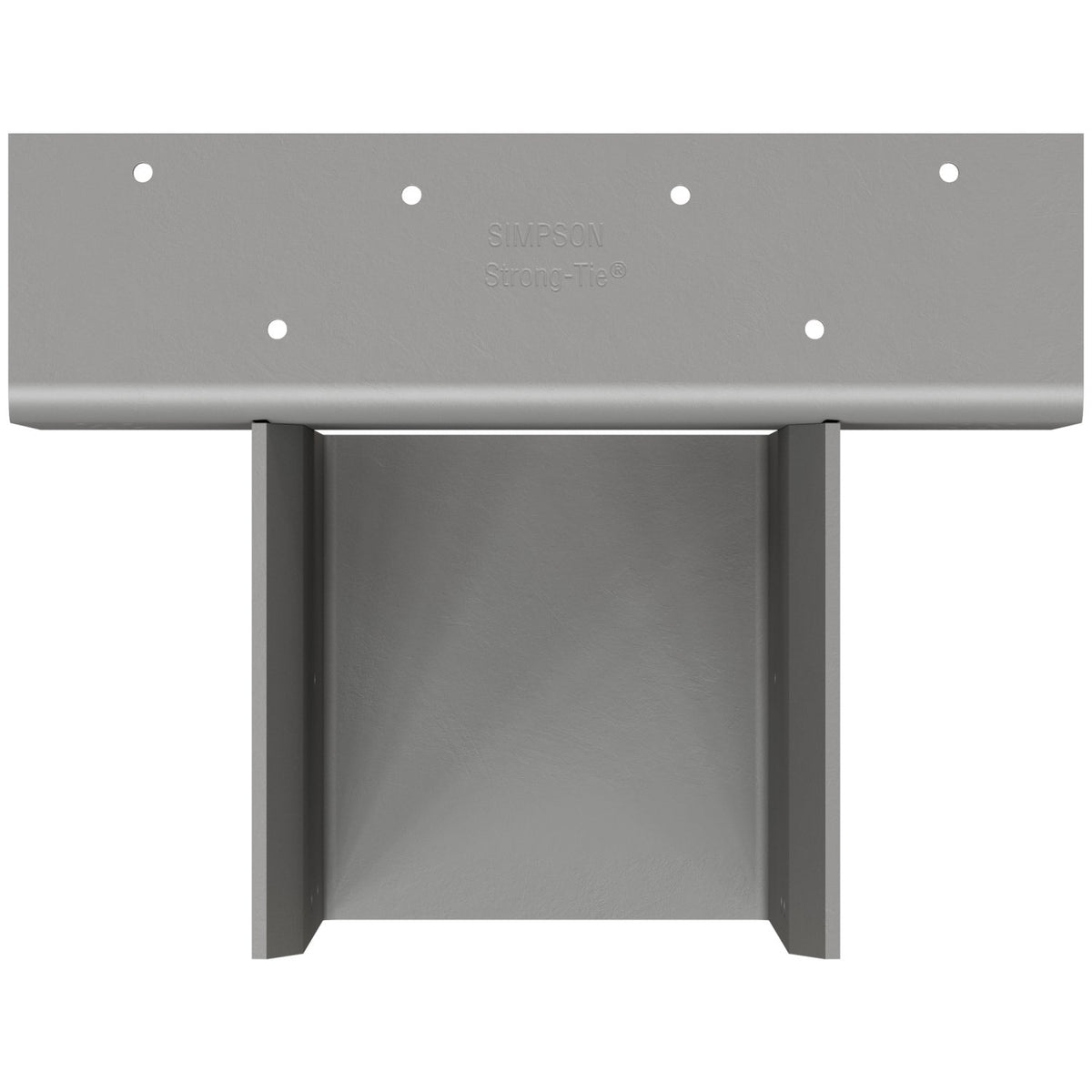

Simpson HGLTV5.50/11.5 HGLTV Top-Flange Joist Hanger for 5-1/4 in. x 11-1/2 in. Engineered Wood is a heavy-duty top-flange hanger from Simpson built specifically for structural composite lumber (SCL) header applications that demand high load capacity. The Funnel Flange design simplifies beam seating and alignment during installation, while precisely positioned top-flange nail holes prevent lamination splitting and degradation of the header - delivering a reliable, structurally sound connection for engineered wood framing. This hanger is also approved for weld-on applications, making it a versatile choice for a range of SCL and engineered lumber projects.
Key Features
- Top flange constructed from 3-gauge steel - provides the heavy-duty strength needed to handle high-load SCL header applications without flex or compromise.
- Stirrup constructed from 7-gauge steel - delivers a rigid, durable cradle that securely supports the engineered wood member throughout the connection.
- Funnel Flange design - guides the beam into position during installation, reducing alignment effort and saving time on the job.
- Nail holes sized and specifically located along the top flange - prevents splitting of SCL laminations so the structural integrity of the header is preserved.
- Approved for weld-on applications - expands the range of installation methods available, giving builders added flexibility on the project site.
- Web stiffeners required when used with I-joists - ensures proper load transfer and structural performance when this hanger style is paired with I-joist members.
- Simpson Strong-Tie gray paint finish - provides a consistent, finished appearance suitable for interior engineered lumber framing conditions.
Why This Product
- Engineered for high-load SCL header applications - the HGLTV series is purpose-built for structural composite lumber headers where standard hangers fall short, so builders can confidently spec this connection for demanding framing loads.
- Nail placement protects the header - the specifically located top-flange nail holes are a deliberate engineering feature that prevents lamination splitting, protecting the value and performance of the engineered wood member.
- Dual-gauge steel construction - combining a 3-gauge top flange with a 7-gauge stirrup balances heavy-duty strength at the connection point with a robust but workable stirrup, optimizing performance across the full hanger assembly.
- Weld-on capability adds installation versatility - unlike hangers limited to nail-only installation, this series supports weld-on use, making it practical for steel-framed or hybrid framing scenarios where welding is the preferred attachment method.
Specifications
- MPN: HGLTV5.50/11.5
- Brand: Simpson Strong-Tie
- Member Size: 5-1/4 in. x 11-1/2 in.
- Gauge: Top flange - 3 gauge; stirrup - 7 gauge
- Coating: Simpson Strong-Tie Gray Paint
- Finish: Simpson Strong-Tie Gray Paint
- Country of Origin: United States
Install With
- Install with (24) 0.162 in. x 3-1/2 in. Strong-Drive SCN Smooth-Shank Connector nails (Model: 16DHDG)
Options
- Contact us for Configurable Options and Special orders
Note: Product dimensions may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What type of lumber is the HGLTV5.50/11.5 designed for?
The HGLTV5.50/11.5 is designed for structural composite lumber (SCL) header applications that require high loads. It is specifically engineered for use with engineered wood members measuring 5-1/4 in. x 11-1/2 in.
What fasteners are recommended for installing this hanger?
Installation requires (24) 0.162 in. x 3-1/2 in. Strong-Drive SCN Smooth-Shank Connector nails (Model: 16DHDG).
Are web stiffeners required when using this hanger with I-joists?
Yes. Web stiffeners are required when using this hanger style with I-joists to ensure proper structural performance.
What gauge steel is used in the construction of the HGLTV5.50/11.5?
The top flange is made from heavy-duty 3-gauge steel, while the stirrup is constructed from 7-gauge steel, providing the strength needed for high-load SCL header applications.
