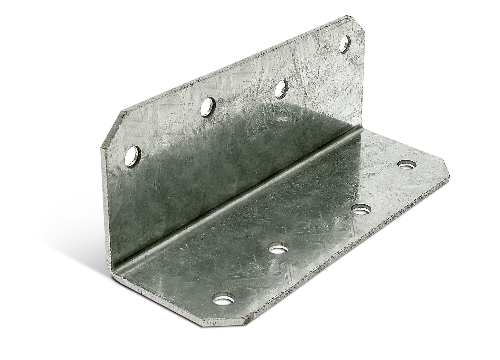

The Simpson ML26Z ML 2 in. x 6 in. 12-Gauge ZMAX Galvanized Medium L Angle from Simpson Strong-Tie is a heavy-duty structural connector designed to create strong, consistent 90 deg. connections in framing and construction applications. Built from 12-gauge steel with a ZMAX galvanized finish, this medium L angle delivers exceptional corrosion resistance and structural integrity for both exterior and treated-wood projects. Fastener holes are staggered to minimize wood splitting, and the opposing hole pattern allows for convenient back-to-back installation without fastener interference.

Key Features

• Provide a 90 deg. connection for medium/heavy duty applications
• Stronger than angled nailing or screw fastening
• Help ensure joints are consistently straight and strong
• Made from 12-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Height: 6 in.
• Fastener holes are staggered to minimize wood splitting
• Opposing hole pattern allows for back-to-back installation without fastener interference
• Compatible with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws for enhanced strength and versatility
• Made in the United States

Specifications

• Model Number: ML26Z
• Width: 2 in.
• Height: 6 in.
• Gauge: 12
• Coating: ZMAX
• Finish: ZMAX
• Country of Origin: United States

Approved Applications

• Medium and heavy-duty 90 deg. structural framing connections
• Exterior construction applications requiring corrosion resistance
• Connections involving treated lumber or wood exposed to moisture
• Back-to-back installation configurations using the opposing hole pattern
• Projects requiring consistently straight and square corners

Install With

• Install with (8) 1/4 in. x 1-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws per angle (Model: SDS25112, sold separately)

Frequently Asked Questions

What type of fasteners should be used with the Simpson ML26Z?

The ML26Z is designed to be installed with (8) 1/4 in. x 1-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws per angle (Model: SDS25112). These fasteners are sold separately and are not included with the angle.

Why is the ZMAX galvanized coating important?

ZMAX galvanization offers extra corrosion resistance, making the ML26Z suitable for exterior applications and connections involving treated wood, where standard galvanized connectors may be more susceptible to corrosion over time.

Can two ML26Z angles be installed back-to-back?

Yes. The ML26Z features an opposing hole pattern specifically designed to allow for back-to-back installation without fastener interference, making it a versatile choice for double-sided connection applications.

How does the ML26Z compare to traditional angled nailing or screw fastening?

The ML26Z is stronger than angled nailing or screw fastening alone. By providing a dedicated 90 deg. connection plate made from 12-gauge steel, it ensures that joints are consistently straight, square, and structurally sound - delivering superior performance over conventional fastening methods.

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see the item description for specifications.
