Product Description

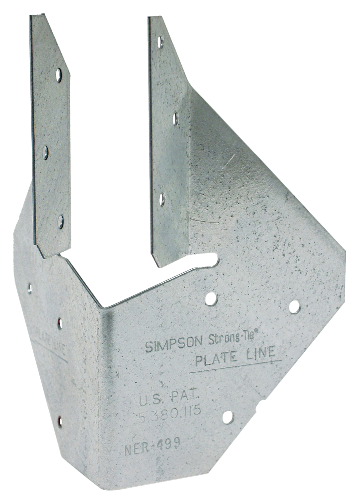

Simpson Strong-Tie 2x Hip Corner Plate with ZMAX Finish (HCP2Z), is an 18-gauge steel hip corner plate engineered by Simpson Strong-Tie to connect a rafter or joist to double top plates at a precise 45 deg. angle. The ZMAX coating delivers enhanced corrosion resistance, making this connector well-suited for demanding framing applications where dependable structural performance is essential.
Key Features
- Connects rafter or joist to double top plates at a 45 deg. angle for reliable hip corner framing
- 18-gauge steel construction provides solid structural integrity
- ZMAX coating offers superior corrosion resistance compared to standard galvanized finishes
- Designed for use with 2x member sizes
- Rafter may be sloped up to 45 deg. for installation flexibility
- Birdsmouth cut is not required for table uplift loads, simplifying installation
- Made in the United States
Specifications
- Model No.: HCP2Z
- Member Size: 2x
- Gauge: 18
- H (in.): 2
- Coating/Material: ZMAX
- Country of Origin: United States
Approved Applications
- Connecting a rafter or joist to double top plates at a 45 deg. angle
- Hip corner framing connections in residential and light commercial construction
- Installations where rafter slope does not exceed 45 deg.
Frequently Asked Questions
- What is the purpose of the HCP2Z hip corner plate?
- The HCP2Z is designed to connect a rafter or joist to double top plates at a 45 deg. angle, providing a secure hip corner connection in wood framing applications.
- Is a birdsmouth cut required when installing the HCP2Z?
- A birdsmouth cut is not required for table uplift loads; however, it may be required for download conditions. Refer to the installation guidelines to determine requirements for your specific application.
- What fasteners are required to install the HCP2Z?
- Installation requires (12) nails measuring 0.148" x 1-1/2". The connector is first attached to the double top plates, then the rafter is installed and nailing is completed.
- What is the maximum rafter slope allowed with the HCP2Z?
- The rafter may be sloped up to 45 deg. when installing the HCP2Z, providing flexibility to accommodate a range of common roof pitches.
