Product Description

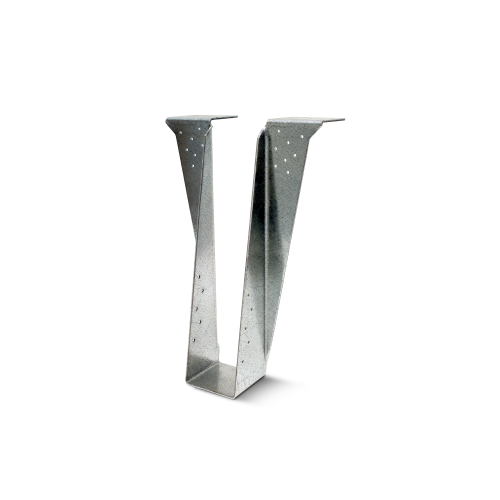

The Simpson HB7.12/14 Top Flange Hanger for Heavy Beam 7x14 by Simpson is a top-flange hanger engineered to carry medium to high loads for solid sawn and engineered wood applications. Its full-height joist flange captures the top chord of the joist to prevent rotation, while its one-piece construction delivers a cost-effective alternative to welded hangers - making it a reliable choice for demanding structural framing projects.
Key Features
- One-piece, cost-effective design - eliminates the need for welded hangers, reducing material costs without sacrificing load-carrying performance in high-load applications
- Full-height joist flange - captures the top chord of the joist to prevent rotation, improving structural stability and long-term connection integrity
- 10-gauge steel construction - provides the thickness and rigidity needed to handle heavy beam loads in both solid sawn and engineered wood framing
- G90 zinc galvanized finish - delivers extra corrosion resistance to keep the connection strong in demanding jobsite environments
- Available for sloped and/or skewed member configurations - accommodates non-standard framing angles, giving builders flexibility for complex structural layouts
- Requires web stiffeners - ensures proper load transfer and prevents web crippling in engineered wood members, supporting a code-compliant installation
Why This Product
- Purpose-built for heavy beam applications - designed specifically for 7 in. x 14 in. members, this hanger is sized to match the structural demands of large-scale solid sawn and engineered wood framing without relying on custom fabrication
- One-piece construction lowers project costs - by eliminating welded components, the HB series provides a factory-ready solution that saves time during installation and reduces overall connection hardware expense
- Rotation prevention built into the design - the full-height joist flange actively locks the top chord in place, reducing the risk of joist movement or twist over the life of the structure
- Corrosion-resistant finish for long-term durability - the G90 zinc galvanized coating protects the steel connection against moisture and environmental exposure, helping maintain structural performance across a wide range of building conditions
Specifications
- MPN: HB7.12/14
- Brand: Simpson Strong-Tie
- Member Size: 7 in. x 14 in.
- Gauge: 10-gauge steel
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: (22) 0.162 in. x 3-1/2 in. nails in the header and (10) 0.162 in. x 3-1/2 in. nails in the joist
- Country of Origin: United States
Options
- Contact us for Special orders
Note: Product dimensions may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What size member is this hanger designed for?
The HB7.12/14 is designed for an actual joist size of 7 in. x 14 in., suitable for both solid sawn and engineered wood applications.
What fasteners are required to install the HB7.12/14?
Installation requires (22) 0.162 in. x 3-1/2 in. nails in the header and (10) 0.162 in. x 3-1/2 in. nails in the joist.
Does this hanger require any additional hardware during installation?
Yes, the HB7.12/14 requires the use of web stiffeners as part of a proper installation.
What corrosion protection does the HB7.12/14 offer?
This hanger is coated with a Zinc Galvanized G90 finish, providing extra corrosion resistance for demanding jobsite environments.
