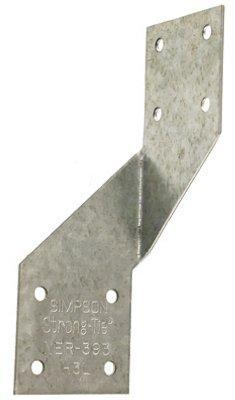

The Simpson Strong-Tie H3Z H3 18-Gauge ZMAX Galvanized Hurricane Tie is a single-sided hurricane tie engineered by Simpson Strong-Tie to resist moderate loads at the rafter/truss-to-top-plate connection. As part of a continuous load path, the H3Z resists both lateral and uplift loads, providing a reliable structural connection that helps protect buildings against wind and seismic forces. Available in left- and right-hand models, these ties can be installed in pairs for added performance.

Key Features

• Provides a connection between the rafter or truss and the wall of the structure that helps resist wind and seismic forces
• Approved for installation with load-rated Strong-Drive SD Connector screws
• Use also for a variety of connections where one member crosses another
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• Model No.: H3Z
• Gauge: 18

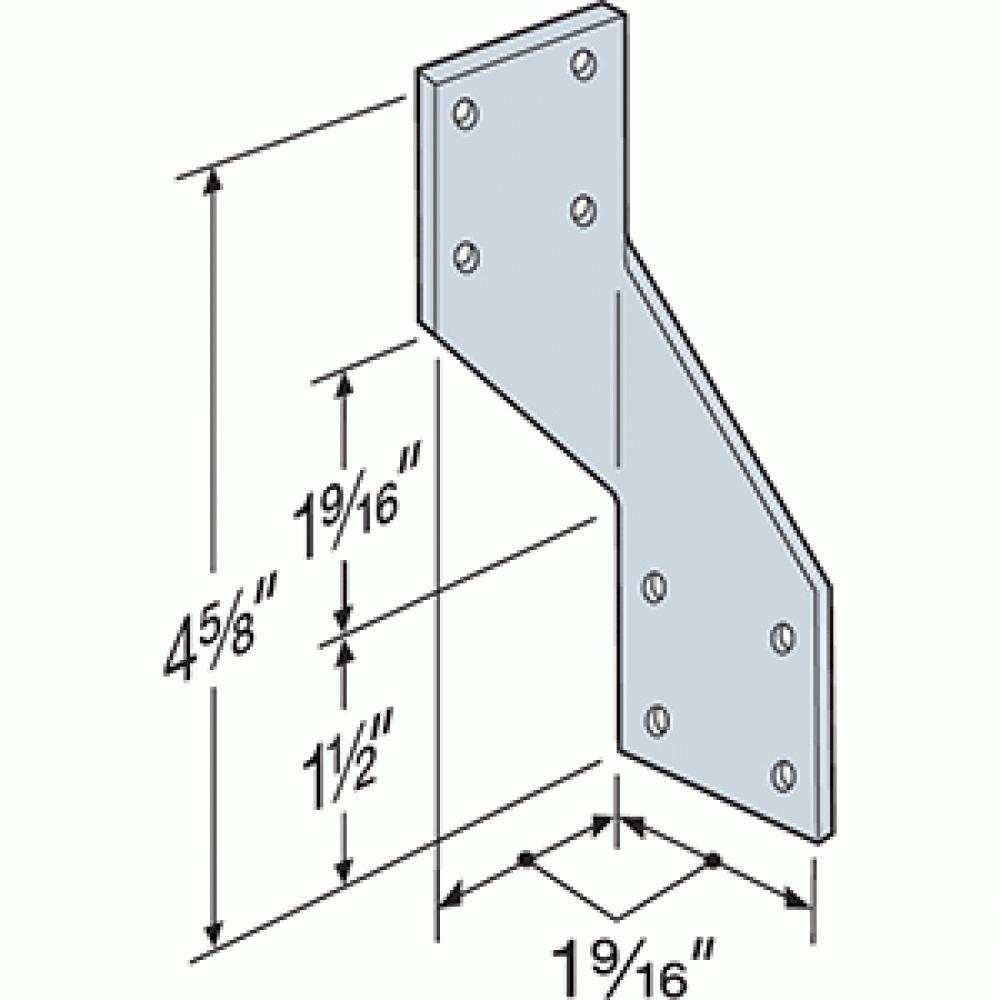

• Width (in.): 1 9/16
• Height (in.): 4 5/8
• Coating/Finish: ZMAX
• Country of Origin: United States

Approved Applications

• Rafter-to-top-plate connections requiring moderate uplift and lateral load resistance
• Truss-to-top-plate connections as part of a continuous load path
• Exterior and treated-wood applications where enhanced corrosion resistance is required
• A variety of connections where one structural member crosses another

Frequently Asked Questions

What fasteners are required to install the H3Z hurricane tie?

Each tie requires (8) 0.131 in. x 2-1/2 in. nails or (8) #9 x 1-1/2 in. Strong-Drive SD Connector screws. Use hot-dip galvanized (HDG) nails with ZMAX connector products.

Can the H3Z be used with treated lumber or in exterior applications?

Yes. The ZMAX galvanization offers extra corrosion resistance specifically designed for exterior and treated-wood applications, making it well suited for these environments.

Are left-hand and right-hand models available, and can they be used together?

Yes. The H3Z is available in both left-hand and right-hand models, and both can be installed in pairs at the same rafter or truss connection for increased performance.

Do hurricane ties replace solid blocking?

No. Hurricane ties do not replace solid blocking. They are designed to work as part of a continuous load path system and should be used in conjunction with proper blocking per applicable building requirements.

Related Products

• Nails 0.131 x 2-1/2"
• #9 x 1 1/2"

Note: When installing ties on plated trusses on the side opposite the truss plate, do not fasten through the truss plate from behind. This can force the truss plate off of the truss and compromise truss performance.
