Product Description

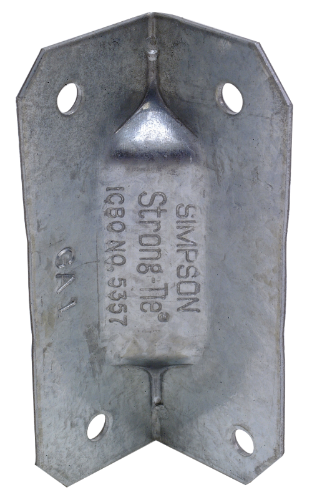

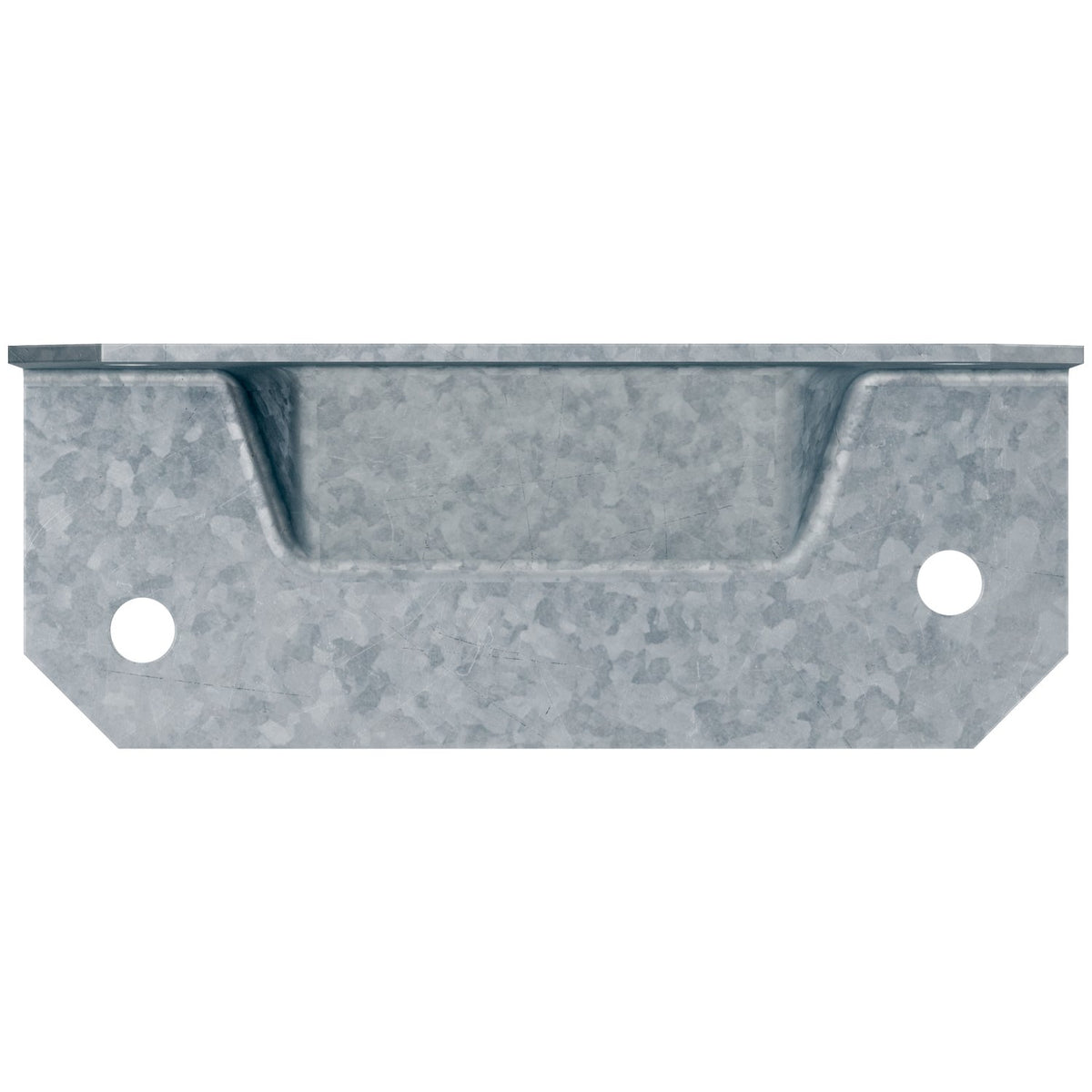

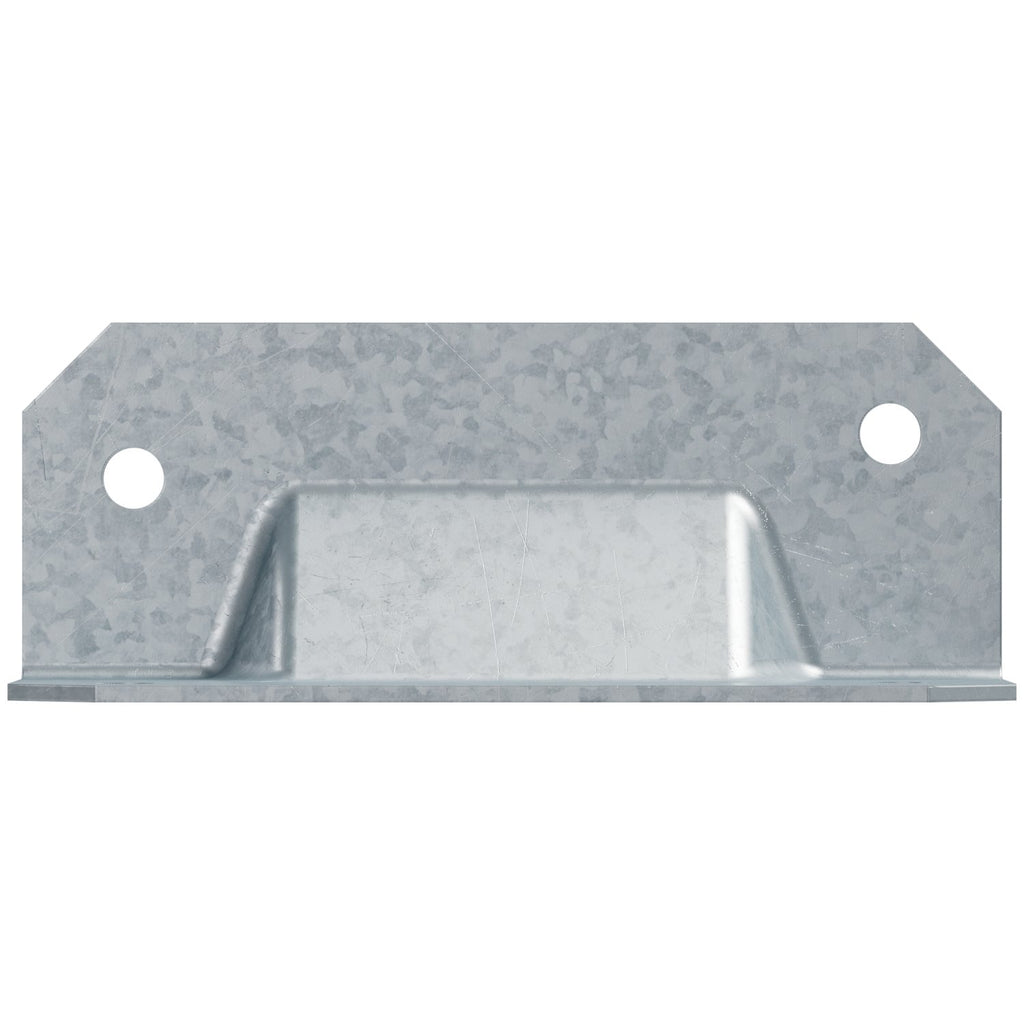

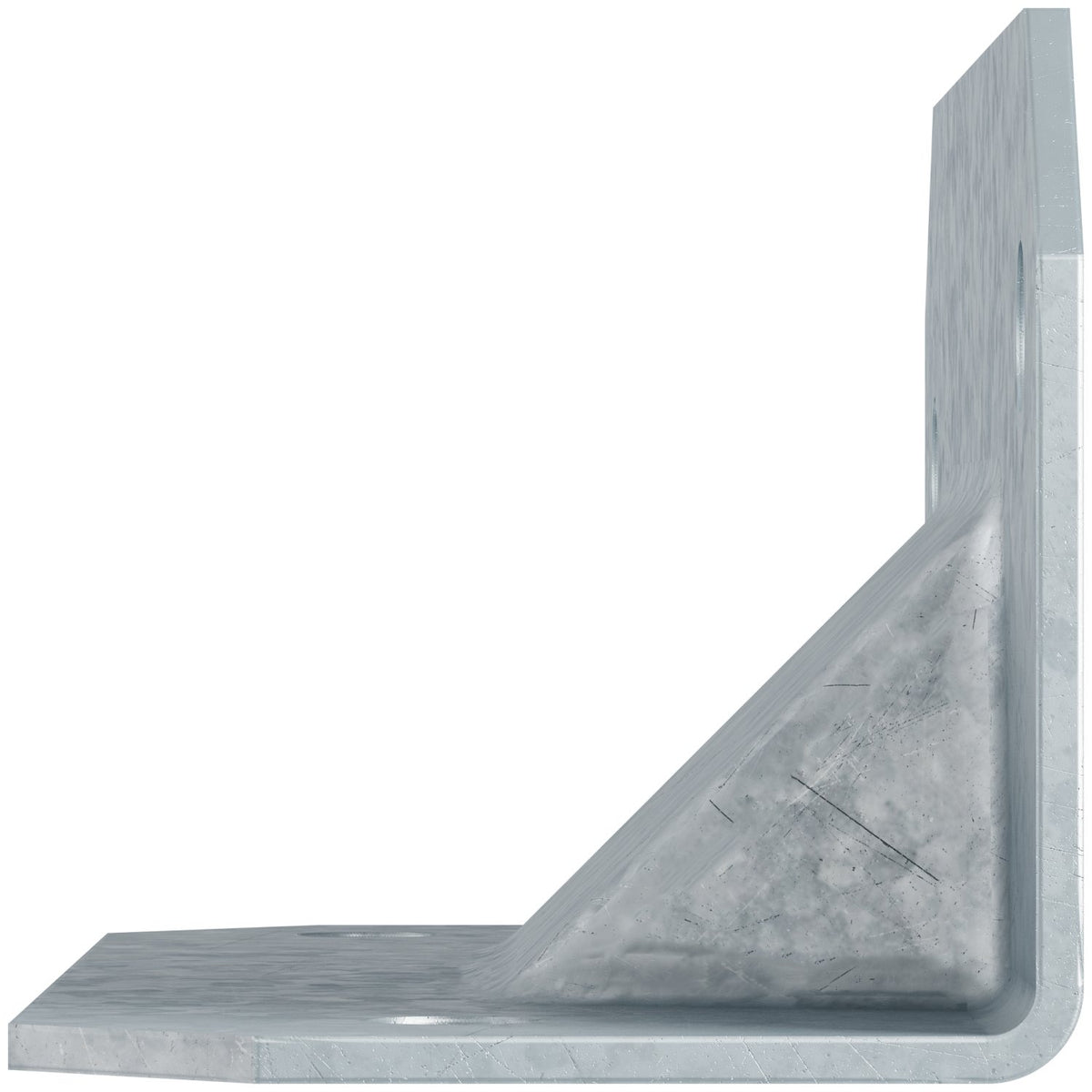

The Simpson GA1 GA 2-3/4 in. 18-Gauge Galvanized Gusset Angle is a small, versatile connector from Simpson Strong-Tie engineered to improve corner stability in framing and repair applications. The integrated gusset design increases strength for lateral and uplift loads, delivering a connection that is stronger than angled nailing or screw fastening alone. The GA1 installs easily with nails or, for increased loads, with Strong-Drive SD Connector screws.
Key Features
- Small flanges allow for installation on narrow face of 2x member
- Ideal for reinforcing 90 deg.-angle connections
- Stronger than angled nailing or screw fastening
- Ideal for miscellaneous building and repair projects
- Help ensure joints are consistently straight and strong
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- Model Number: GA1
- Gauge: 18

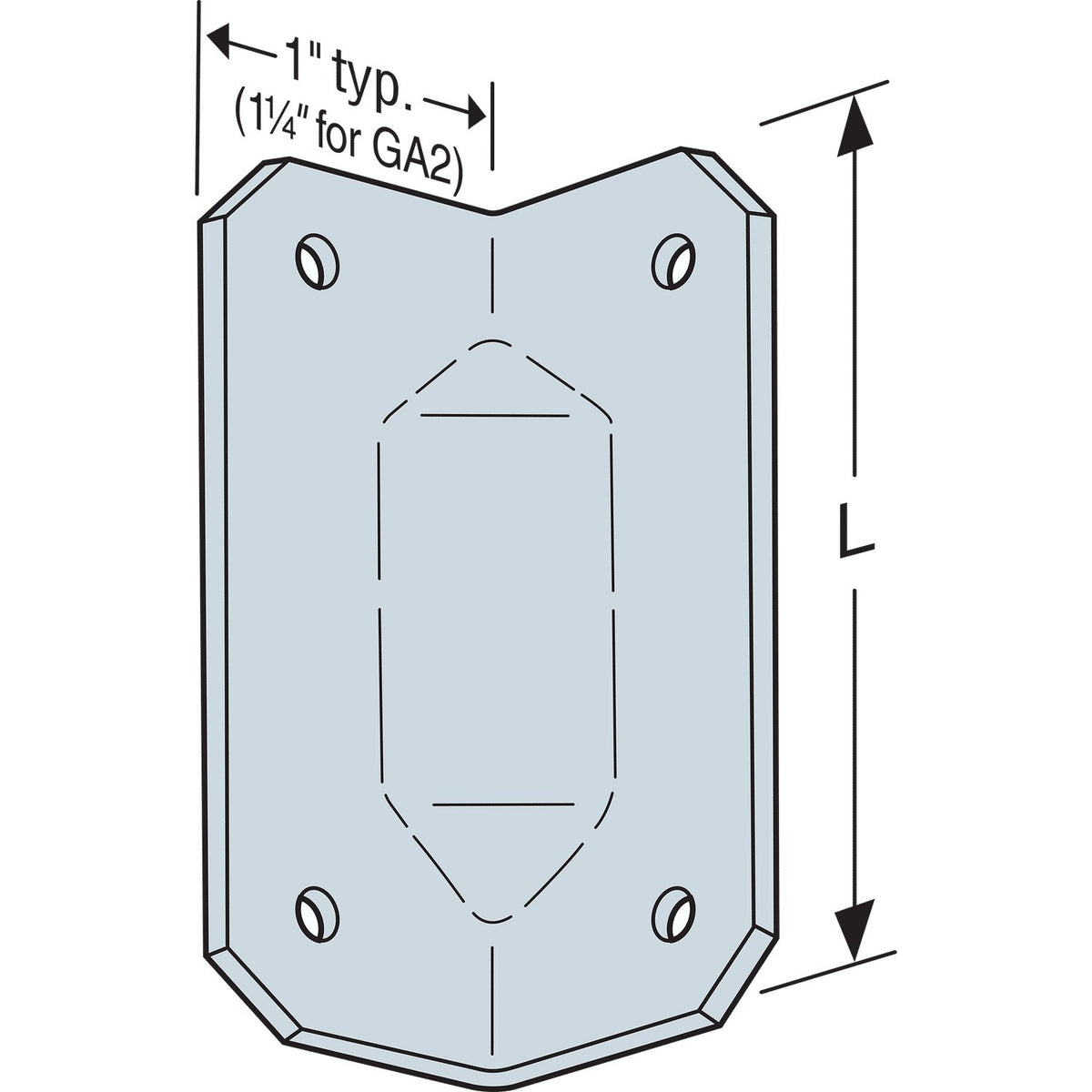

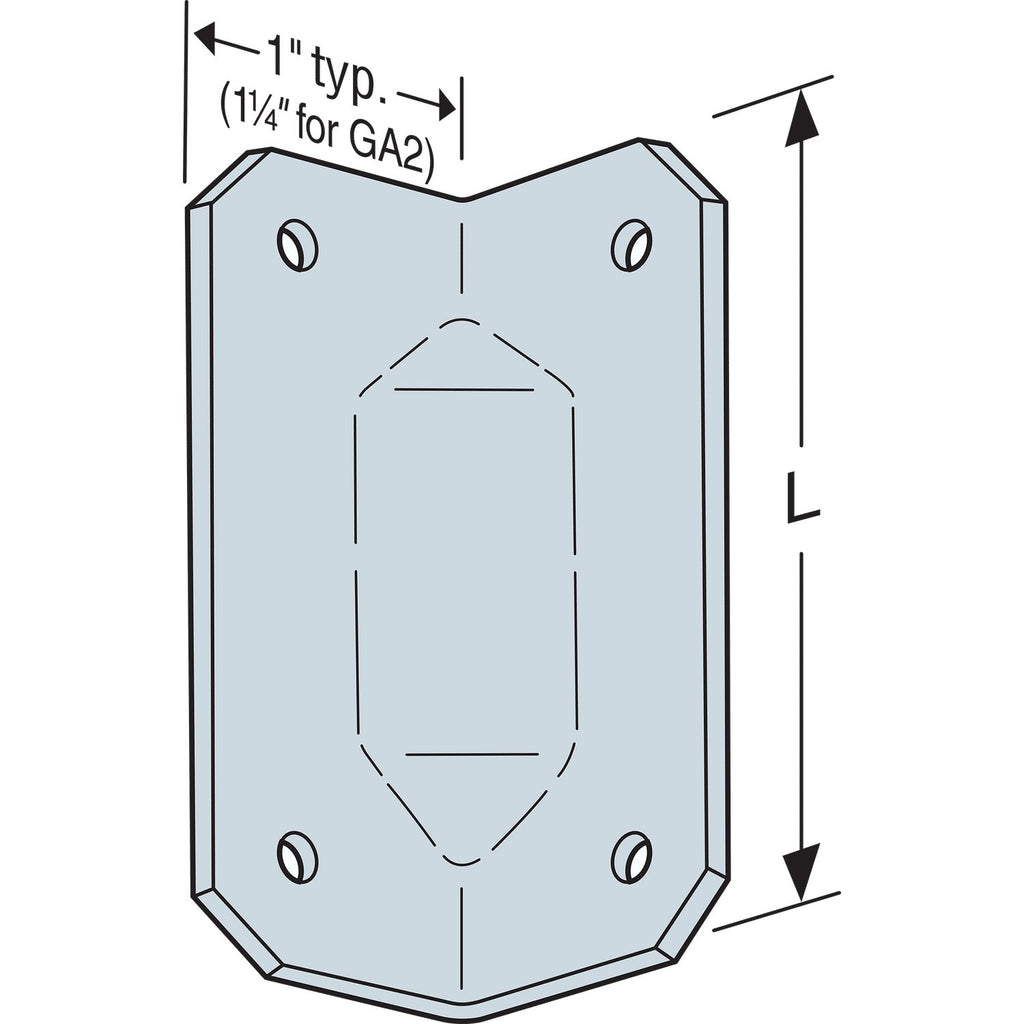

- Length: 2-3/4 in.
- Coating/Finish: Zinc Galvanized, G90
- Fastener Options: Install with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws
- Country of Origin: United States
Approved Applications
- Reinforcing 90 deg.-angle framing connections
- Installation on the narrow face of 2x framing members
- Miscellaneous building and repair projects requiring corner stability
- Applications requiring resistance to lateral and uplift loads
Downloads and Resources
Frequently Asked Questions
- What fasteners can be used to install the GA1 Gusset Angle?
- The GA1 can be installed with 10d common nails or #9 x 1-1/2 in. Strong-Drive SD Connector screws. Using Strong-Drive SD screws is recommended when increased load capacity is needed.
- What makes the GA1 stronger than standard angled nailing or screw fastening?
- The GA1 features an engineered and tested gusset built into the angle. This gusset increases strength for both lateral and uplift loads, providing a more reliable connection than angled nailing or screw fastening alone.
- Can the GA1 be used on narrow framing members?
- Yes. The GA1 features small flanges specifically designed to allow installation on the narrow face of 2x framing members, making it a flexible solution for tight framing conditions.
- Is the GA1 suitable for outdoor or moisture-exposed applications?
- The GA1 is coated with a G90 zinc galvanized finish, which provides extra corrosion resistance, making it appropriate for applications where added protection against moisture and corrosion is needed.
Related Products
Note: Product dimensions and/or Screw or Bolt holes may differ from picture.
