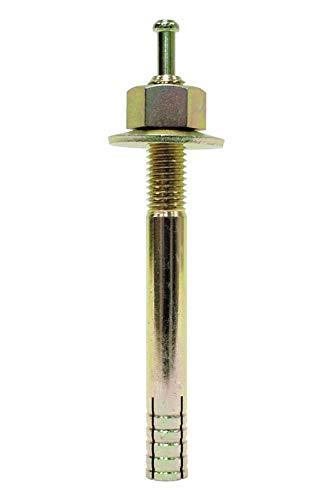

The Simpson Strong-Tie EZAC62434 Easy-Set 5/8 in. x 4-3/4 in. Pin-Drive Expansion Anchor by Simpson Strong-Tie is engineered for medium- and heavy-duty fastening applications into concrete. This pin-drive expansion anchor delivers reliable holding power in concrete base materials including concrete masonry unit (CMU) and brick, and features an integrated nut and washer for streamlined, efficient installation.

Key Features

• Integrated nut and washer to help keep track of parts
• Provides a strong connection of elements to concrete through expansion
• Increases overall strength of masonry projects
• Carbon steel construction with Yellow-Zinc Dichromate Plated finish for corrosion resistance
• Pin-drive setting mechanism for fast and straightforward installation
• Caution: Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity

Specifications

• MPN: EZAC62434
• Brand: Simpson Strong-Tie
• Size: 5/8 in. x 4-3/4 in.
• Diameter: 5/8 in.
• Length: 4-3/4 in.
• Thread Length: 1-5/8 in.
• Drill Bit Diameter: 5/8 in.
• Min Fixture Hole: 11/16 in.
• Wrench Size: 15/16 in.
• Material: Carbon Steel
• Coating: Yellow-Zinc Dichromate Plated
• Finish: Yellow-Zinc Dichromate Plated
• Packaging: Packs of 15 and Cartons of 60
• Country of Origin: China

Approved Applications

• Medium- and heavy-duty fastening into concrete
• Fastening into concrete masonry unit (CMU)
• Fastening into brick base materials

Frequently Asked Questions

What base materials is the EZAC62434 designed for?

The Simpson Strong-Tie EZAC62434 Easy-Set anchor is designed to provide holding power in concrete base materials including poured concrete, concrete masonry unit (CMU), and brick.

What drill bit size is required to install this anchor?

A 5/8 in. diameter drill bit is required to create the hole for the EZAC62434 anchor. Be sure to avoid drilling an oversized hole, as this will make it difficult to set the anchor and will reduce its load capacity.

Does this anchor require separate hardware for installation?

No. The EZAC62434 includes an integrated nut and washer, which helps keep all parts together and simplifies the installation process. A 15/16 in. wrench is needed to tighten the assembly.

What finish does the EZAC62434 have, and what is it made of?

The EZAC62434 is manufactured from carbon steel and features a Yellow-Zinc Dichromate Plated coating and finish, which provides a layer of corrosion resistance for the anchor.

Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
