Product Features
Product Description

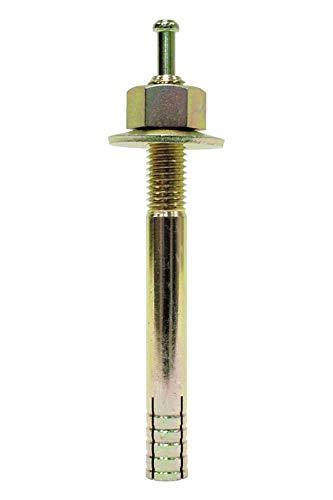

The Simpson Strong-Tie Easy-Set Pin-Drive Expansion Anchor EZAC50234 is a medium- and heavy-duty fastening solution engineered for secure anchoring into concrete, concrete masonry unit (CMU), and brick. Manufactured from carbon steel with a yellow-zinc dichromate plated finish, this 1/2 in. x 2-3/4 in. anchor features an integrated nut and washer for streamlined installation and reliable expansion-based holding power in demanding masonry applications.
Key Features
- Integrated nut and washer to help keep track of parts
- Provides a strong connection of elements to concrete through expansion
- Increases overall strength of masonry projects
- Suitable for use in concrete, concrete masonry unit (CMU), and brick base materials
- Carbon steel construction with yellow-zinc dichromate plated finish for durability

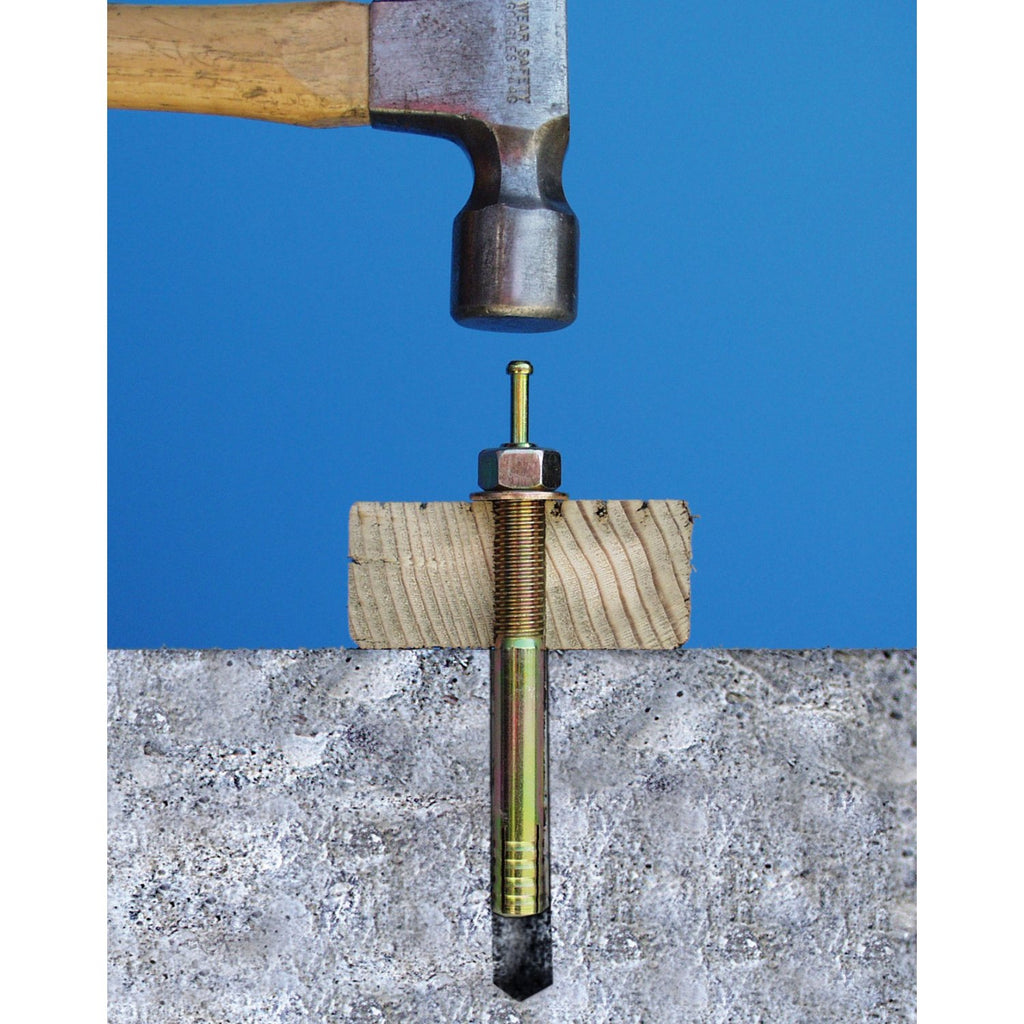

- Pin-drive mechanism designed for medium- and heavy-duty fastening applications
- Caution: Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity
Specifications
- Manufacturer: Simpson Strong-Tie
- MPN: EZAC50234
- Anchor Type: Pin-Drive Expansion Anchor
- Diameter: 1/2 in.
- Length: 2-3/4 in.
- Thread Length: 1 in.
- Drill Bit Diameter: 1/2 in.
- Min. Fixture Hole: 9/16 in.
- Wrench Size: 3/4 in.
- Material: Carbon Steel
- Coating/Finish: Yellow-Zinc Dichromate Plated
- Packaging: Packs of 25 and Cartons of 125
- Country of Origin: China
Approved Applications
- Medium- and heavy-duty fastening into concrete
- Anchoring into concrete masonry unit (CMU)
- Fastening applications into brick base materials
- Structural connections requiring expansion-based holding power in masonry
Frequently Asked Questions
- What base materials is the EZAC50234 anchor compatible with?
- The Simpson Strong-Tie EZAC easy-set anchor provides holding power in concrete base materials including concrete, concrete masonry unit (CMU), and brick.
- What size drill bit is required for installation?

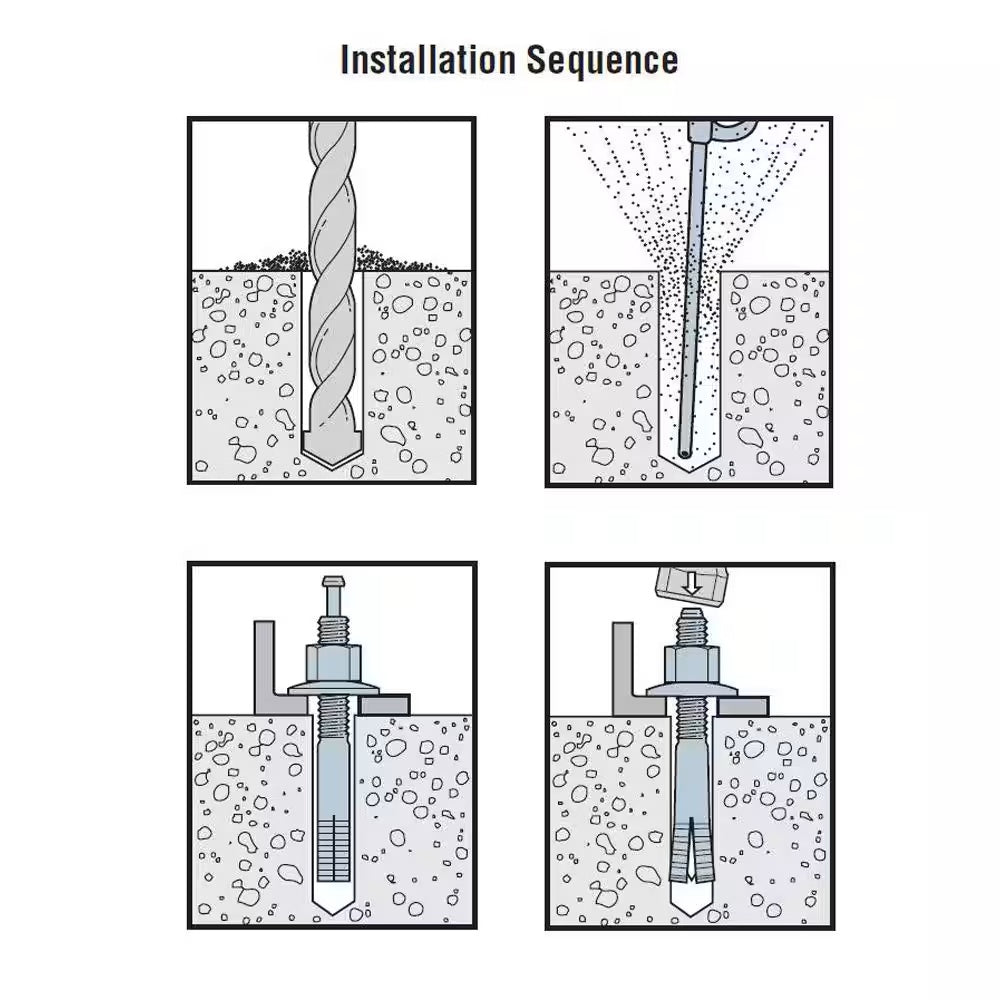

- A 1/2 in. drill bit is required to drill the hole in the base material. The minimum fixture hole size is 9/16 in., and a 3/4 in. wrench is needed to drive the anchor.
- Does this anchor include a nut and washer?
- Yes. The EZAC anchor features an integrated nut and washer, which helps keep all parts together and simplifies the installation process.
- Are there any installation precautions I should be aware of?
- Yes. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity. Always drill to the specified 1/2 in. diameter to ensure proper expansion and full holding strength.
Note: Product dimensions and/or thread length may differ from picture. Please refer to the specifications listed above for accurate product details.
