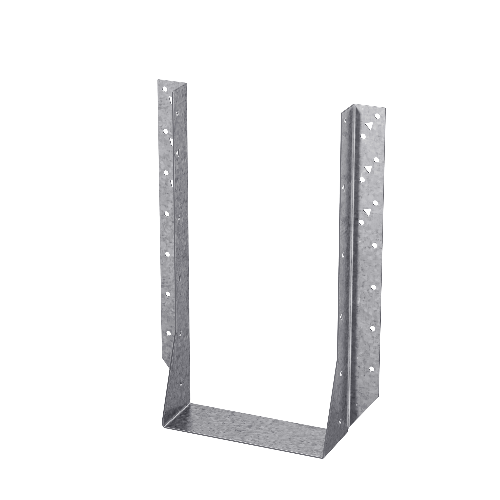

The Simpson HU414-2 HU Galvanized Face-Mount Joist Hanger for Double 4x14 is a heavy-duty structural connector engineered by Simpson Strong-Tie for framing applications that demand additional strength and safety factors. Built to support double 4x14 joist members with a face-mount connection to the header, this hanger is the trusted choice of engineers and contractors tackling demanding residential and commercial framing projects where reliable load transfer is non-negotiable.

Key Features

• "U" design allows for flexibility of placement on the header - makes installation easier by giving you room to adjust positioning without compromising structural integrity
• Nominal joist size: Double 4x14 - purpose-built for double-member connections, ensuring a precise, secure fit for heavy-duty framing applications
• Made from 14-gauge steel - provides the substantial strength and load capacity required for structures where safety factors cannot be compromised
• Galvanized (G90) for extra corrosion resistance - the Zinc Galvanized G90 coating stands up to treated lumber and challenging job site environments, helping protect the connection over the long term

Why This Product

• Engineered for heavy-duty performance - the HU series is specifically designed for structures requiring additional strength and safety factors, making it a dependable choice when standard hangers are not sufficient for the job
• Installer-friendly "U" design - the open "U" profile gives you flexibility when positioning the hanger on the header, reducing layout headaches and helping keep your framing project on schedule
• Built-in corrosion protection - the G90 galvanized coating delivers enhanced resistance to moisture and the chemicals found in treated lumber, supporting a durable connection in interior and exposed framing conditions alike
• Backed by Simpson Strong-Tie engineering and testing - Simpson connectors are manufactured to high quality standards and tested to perform, giving engineers, contractors, and builders confidence that the connection meets structural requirements

Specifications

• Model Number: HU414-2
• Member Size: Double 4x14
• Gauge: 14
• Coating/Finish: Zinc Galvanized, G90
• Width: 7-1/8 in.
• Height: 12-9/16 in.
• Seat Depth: 2-1/2 in.
• Country of Origin: United States
• Installation Fasteners: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist (sold separately)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What size joist is this hanger designed to support?

This hanger is designed for a nominal joist size of Double 4x14, making it suitable for heavy-duty framing applications that require a double-member connection.

What type of nails should be used to install the HU414-2?

Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist for a code-compliant installation.

What corrosion protection does this joist hanger offer?

The HU414-2 features a Zinc Galvanized G90 coating, which provides an enhanced level of corrosion resistance, making it well-suited for treated lumber and demanding environments.

What gauge steel is used in this hanger?

This joist hanger is manufactured from 14-gauge steel, contributing to its heavy-duty load capacity and overall structural durability.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
